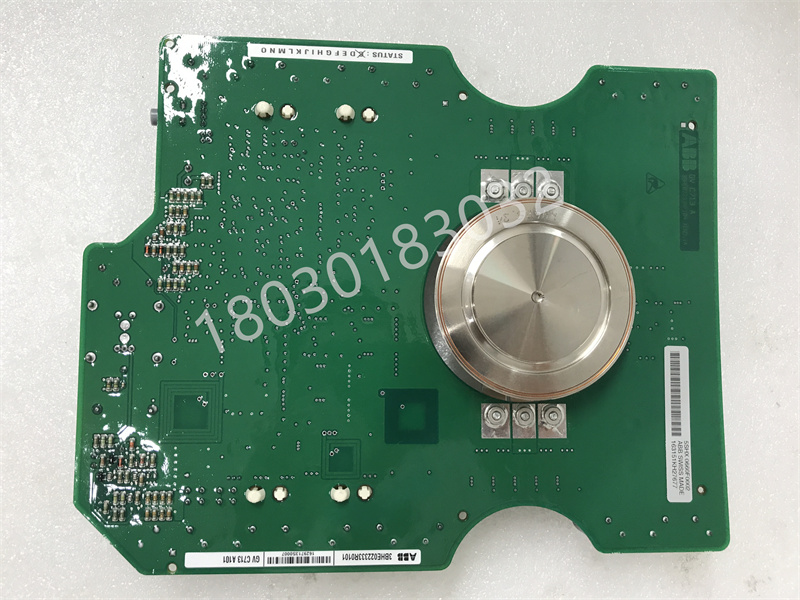

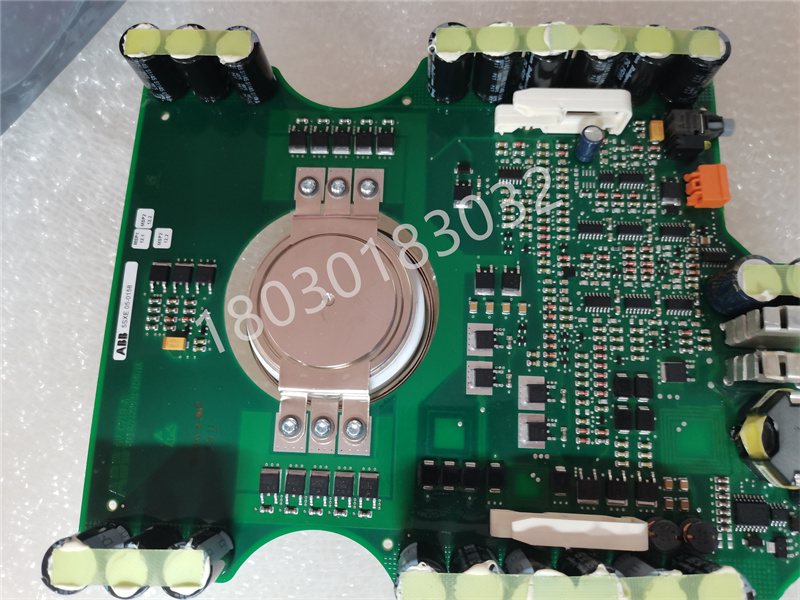

ABB 5SHX0660F0001 晶闸管 IGCT 模块

主要特点

• 高功率与高电压：支持高电压和大电流操作，适用于中高压变频应用。
• 快速开关能力：具备快速的开关性能，能够实现高效的电力控制。
• 多种保护功能：内置过流、过压、过热保护机制，确保设备安全运行。
• 高可靠性与耐用性：设计用于工业环境，具有高可靠性和长寿命。
• 灵活的扩展能力：支持与多种扩展模块混合搭配，最多可扩展至 128 个输入或输出。
• 模块化设计：便于集成和安装，简化了系统设计。
• 快速响应与高精度控制：适用于需要高精度控制的场景，如电机转速和转矩控制。

技术规格

• 额定电压：4500V。
• 额定电流：4000A。
• 开关速度：微秒级。
• 开关频率：20kHz。
• 导通压降：1.8V。
• 工作温度范围：-40°C 至 +125°C。
• 冷却方式：双面水冷/风冷。
• 封装形式：压接式（Press-Pack）。

应用场景

• 高压直流输电系统（HVDC）：用于换流阀中的核心功率器件。
• 工业变频器系统：如 ABB ACS6000 系列变频器中的整流/逆变模块。
• 电机驱动系统：用于大功率同步/异步电机的调速控制。
• 电炉与电化学工业：用于大电流整流与功率调节。
• UPS 不间断电源系统：提供高可靠性功率转换。
• 牵引系统：用于轨道交通中的电力转换设备。
• 可再生能源系统：如风电变流器、太阳能逆变器中的整流部分。

安装与调试

• 安装方式：支持 DIN 导轨安装。
• 调试工具：提供直观的用户界面和易于使用的编程工具。

维护与支持

• 诊断功能：内置诊断系统可快速识别故障点，便于维护人员排查问题。
• 技术支持：专业团队提供全天候技术支持。

ABB 5SHX0660F0001 thyristor IGCT module

product overview

ABB 5SHX0660F0001 is a high-performance integrated gate commutated thyristor (IGCT) module designed specifically for industrial automation and power system control. It combines the advantages of GTO (gate controlled turn off thyristor) and thyristor (SCR), and is a high-power, high-performance power electronic switching device.

main features

High power and high voltage: Supports high voltage and high current operation, suitable for medium to high voltage frequency conversion applications.

Fast switching capability: With fast switching performance, it can achieve efficient power control.

Multiple protection functions: Built in overcurrent, overvoltage, and overheating protection mechanisms to ensure safe operation of the equipment.

High reliability and durability: designed for industrial environments, with high reliability and long lifespan.

Flexible expansion capability: Supports mixing and matching with multiple expansion modules, and can expand up to 128 inputs or outputs.

Modular design: easy to integrate and install, simplifying system design.

Fast response and high-precision control: suitable for scenarios that require high-precision control, such as motor speed and torque control.

technical specifications

Rated voltage: 4500V.

Rated current: 4000A.

Switching speed: microsecond level.

Switching frequency: 20kHz.

Voltage ｄｒｏｐ during conduction: 1.8V.

Working temperature range: -40 ° C to+125 ° C.

Cooling method: double-sided water cooling/air cooling.

Packaging form: Press Pack.

Application scenarios

High voltage direct current transmission system (HVDC): used as the core power device in the converter valve.

Industrial frequency converter system: such as the rectifier/inverter module in ABB ACS6000 series frequency converters.

Motor drive system: used for speed control of high-power synchronous/asynchronous motors.

Electric furnace and electrochemical industry: used for high current rectification and power regulation.

UPS uninterruptible power supply system: provides high reliability power conversion.

Traction system: Used as power conversion equipment in rail transit.

Renewable energy systems: such as the rectification part in wind power inverters and solar inverters.

Installation and debugging

Installation method: Supports DIN rail installation.

Debugging Tools: Provides an intuitive user interface and easy-to-use programming tools.

Maintenance and Support

Diagnostic function: The built-in diagnostic system can quickly identify the fault point, making it easy for maintenance personnel to troubleshoot problems.

Technical support: A professional team provides 24/7 technical support.

ABB 5SHX0660F0001 has become an ideal thyristor module in the fields of industrial automation and power system control due to its high performance, multifunctionality, and high reliability.
