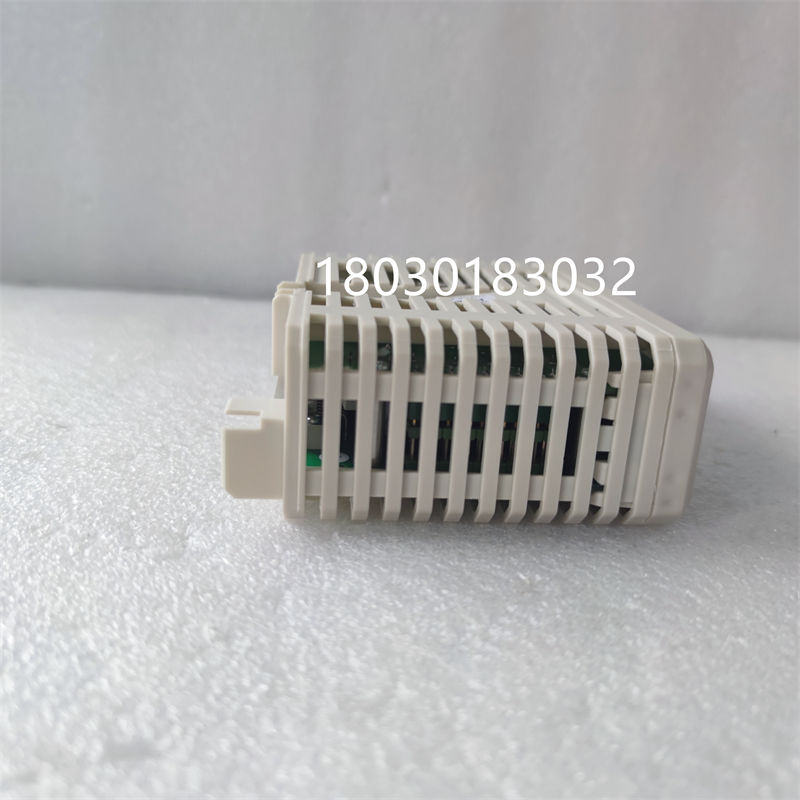

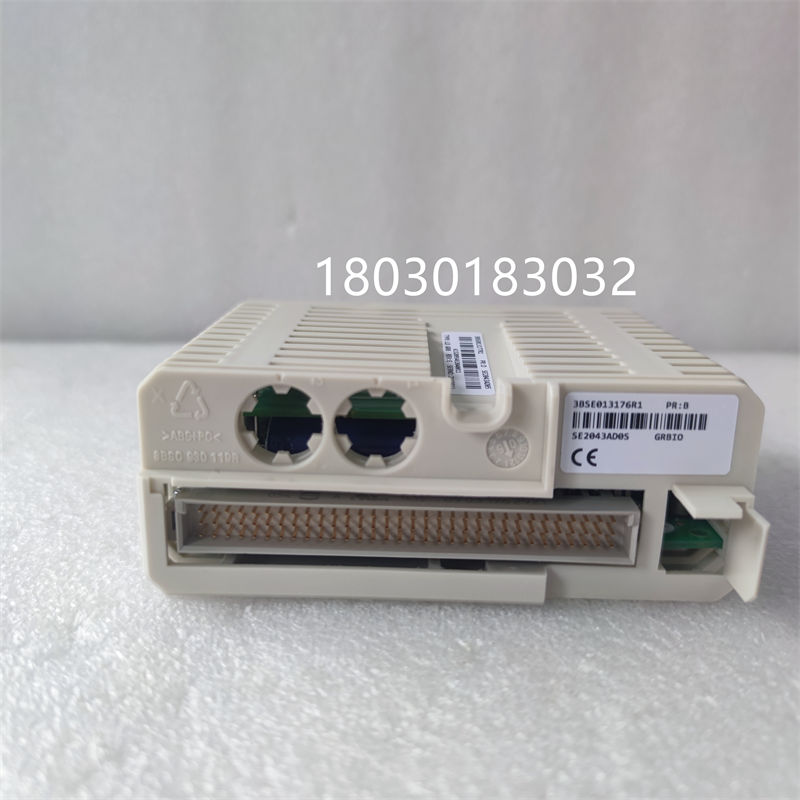

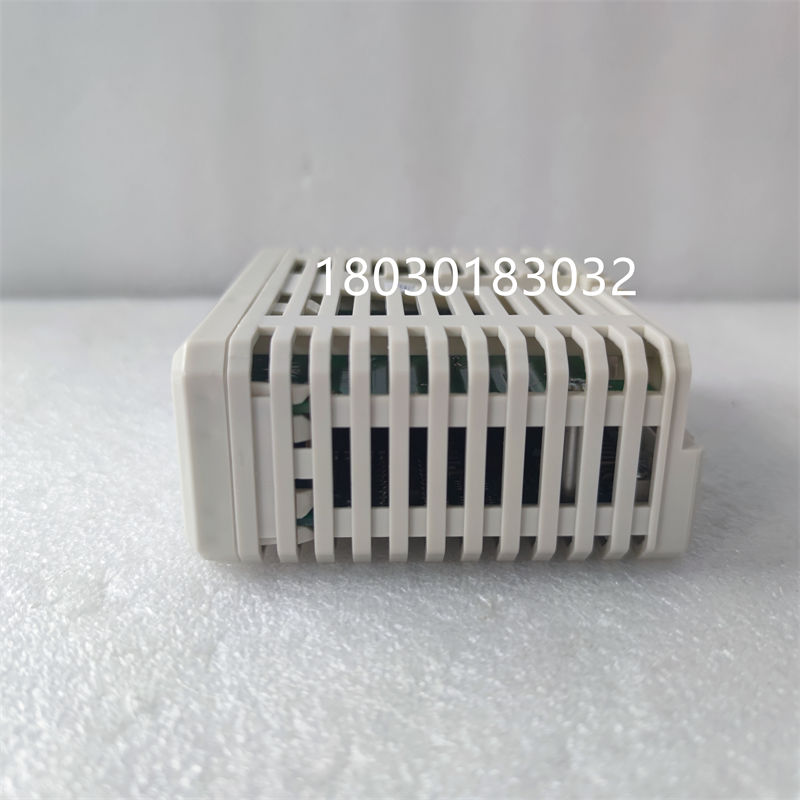

ABB LDGRB-01 3BSE013177R1 紧凑型32位编码器总线接口模块解析

模块化结构便于扩展与维护，降低停机风险，提升系统可用性。

Analysis of ABB LDGRB-01 3BSE013177R1 Compact 32-bit Encoder Bus Interface Module

1、 Core positioning and system compatibility

LDGRB-01 3BSE013177R1 is a key component in ABB IndustriaIT 800xA or Symphony Plus systems. As a compact 32-bit encoder bus interface module, its core function is to achieve isolation, conversion, distribution, and high-speed transmission of industrial field signals. The module seamlessly integrates with the control system through the backplane bus, supports multi protocol communication (such as Modbus, Profibus), and can be configured to be compatible with the HART protocol, suitable for scenarios that require high-precision data acquisition and real-time control.

2、 Technical characteristics and performance advantages

32-bit microcontroller architecture

Based on a high-performance 32-bit processor, the module has powerful computing capabilities and can efficiently handle complex control logic (such as PID regulation and motion control algorithms), meeting the strict requirements of industrial automation for real-time performance (task cycle ≤ 1ms) and accuracy (SOE event resolution<1ms).

Multi channel signal processing capability

Analog support: Standard industrial signals such as 4-20mA and 0-10V, compatible with thermocouple (TC) and RTD temperature sensor inputs.

Digital quantity support: The high-speed sampling function can capture pulse signals or transient events, suitable for switch state monitoring, counter applications, etc.

Channel isolation: The electrical isolation voltage between input/output channels and the system can reach 1500V DC, effectively suppressing interference and ensuring signal integrity.

Compact design and environmental adaptability

Size and protection: The module adopts a compact design, suitable for installation in cabinets with limited space; The protection level is IP20, and it needs to be used in conjunction with a control cabinet to resist the impact of industrial environments such as dust and humidity.

Working temperature range: -25 ° C to+70 ° C, suitable for extreme temperature difference scenarios (such as outdoor equipment, high-temperature workshops).

Redundancy and reliability design

Supports dual Ethernet interface redundancy and built-in automatic switching program to ensure continuous system operation in case of network failure.

Modular structure facilitates expansion and maintenance, reduces downtime risk, and enhances system availability.

3、 Typical application scenarios

Process control field

Chemical/oil and gas industry: used for sensor signal isolation and distribution, achieving precise monitoring and control of parameters such as pressure, temperature, and flow rate.

Energy management: Integrated into DCS systems in power plants and substations, monitoring equipment status and optimizing energy allocation.

Discrete manufacturing field

Production line control: Collect equipment status signals (such as motor start stop, cylinder action), and achieve real-time feedback and fault diagnosis through high-speed digital input channels.

Robot control: Supports complex motion control logic to ensure multi axis collaborative accuracy and response speed.

Building Automation and Security Systems

Integrated into HVAC and lighting control systems, improving energy efficiency through precise data collection; In security monitoring scenarios, reliable transmission of alarm signals ensures the safety of personnel and equipment.

4、 Convenience of configuration and maintenance

Engineering tool support

By configuring module parameters through ABB Control Builder or System 800xA engineering environment, online diagnosis and parameter adjustment are supported, and functional optimization can be completed without stopping the machine.

Status monitoring and troubleshooting

LED indicator light: Real time display of power, communication, and channel status, quickly locating anomalies.

System HMI/diagnostic software: provides detailed fault logs and event records to assist maintenance personnel in analyzing the root cause of problems.
