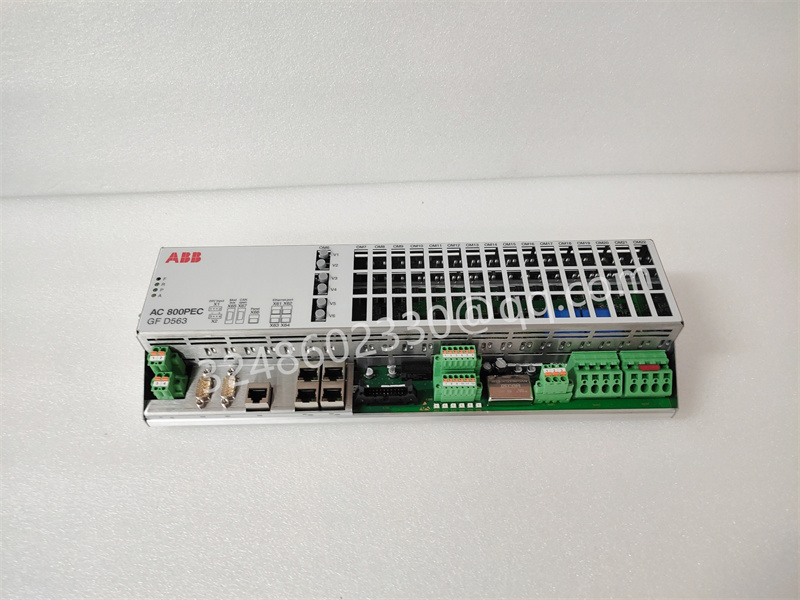

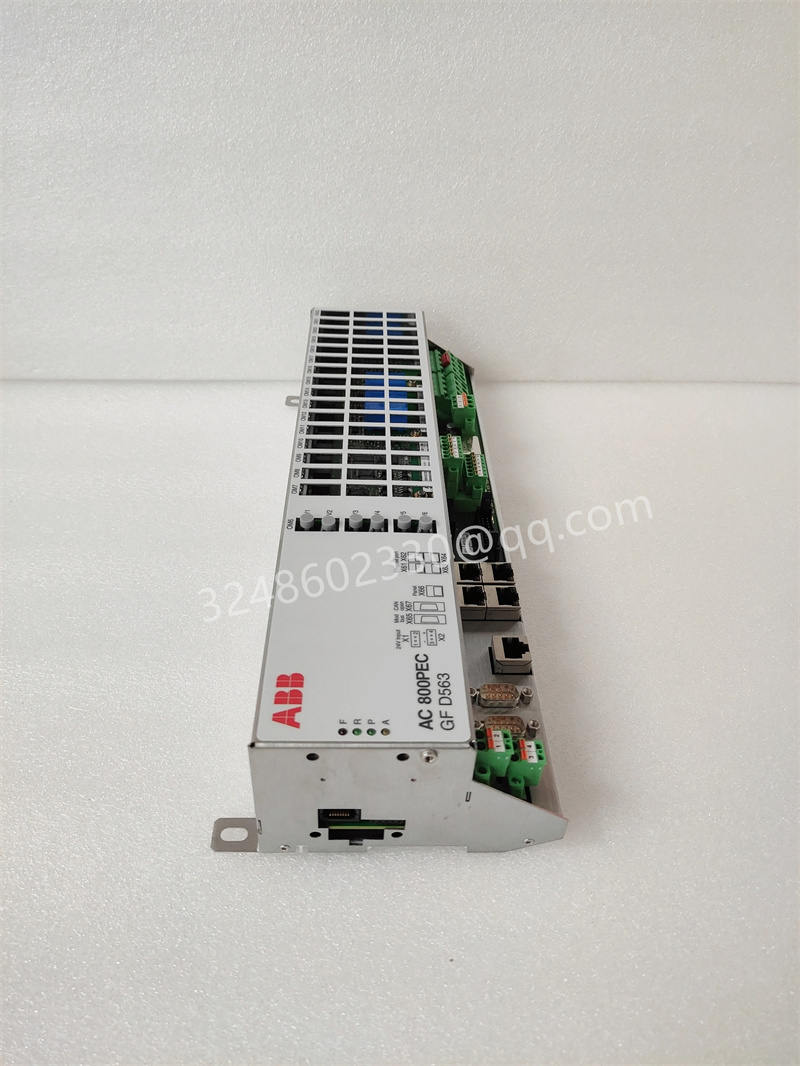

3BHE046836R0101 GFD563A101 Ethernet port module is a high-performance industrial Ethernet communication module produced by ABB,

Mainly used for data transmission and control in automation systems, it has the characteristics of high-speed communication, strong compatibility, high stability, and rich functions.

1、 Product Overview

Brand and Model:

Brand: ABB (a globally renowned provider of electrical and automation solutions)

Model: GFD563A101 (Order Number: 3BHE046836R0101)

Product positioning:

It is a key component of the ABB AC800PEC controller system, mainly used as a communication interface in the field of industrial automation.

2、 Core functions

Ethernet communication:

Supports Ethernet protocol, provides high-speed and stable data transmission capability, and meets the real-time requirements of automation systems.

Analog to digital signal conversion:

As a bridge between analog and digital signals, it realizes the digital processing of sensor signals (such as temperature, voltage, current) and the analog output of control signals.

Central processing unit (CPU) functions:

As the central processing unit of the system, responsible for interpreting commands, processing data, and managing data exchange between the CPU and I/O devices.

Excitation control:

Specially designed for self-excited static rectification excitation systems, it meets the requirements of power systems for generator terminal voltage stability and reactive power control by adjusting excitation current and voltage.

3、 Technical parameters

Communication interface:

Equipped with 2 PROFIBUS DP ports, supporting line redundancy and adaptive transmission rate (9.6 kbps to 12 Mbps).

Supports PROFIBUS DP-V1 protocol (master-slave mode), expandable to PROFINET, EtherNet/IP, Modbus TCP/RTU and other protocols.

The communication interface type is DB9 female head (9-pin), supporting fiber optic or cable transmission.

Power requirements:

24 VDC power supply, typical power consumption of 190 mA.

Number of input/output (I/O) points:

Support multiple combinations of analog and digital signals, specific configurations need to be customized according to application scenarios.

Physical dimensions and installation:

Dimensions: Approximately 127.5 mm (length) x 59 mm (width) x 185 mm (height).

Weight: Approximately 0.7 kg.

Installation method: DIN rail installation, supports hot swapping, easy to maintain online.

Environmental adaptability:

Working temperature range: -20 ℃ to+60 ℃ (some scenarios can reach 55 ℃ for continuous operation).

Storage temperature range: -40 ℃ to+85 ℃.

4、 Application scenarios

Industrial automation:

Widely used in factory automation control systems, such as production line control, robot control, and general process automation.

Used for transmitting data and implementing control, improving production efficiency and reducing human errors.

Power system:

Used for monitoring and control of power plants, power grids, and energy distribution systems, optimizing energy efficiency and reducing energy waste.

By precisely controlling the excitation current, the dynamic response capability of the power grid is enhanced, and the risk of power outages is reduced.

Transportation sector:

Used for traffic signal control and railway signal systems, optimizing traffic flow, reducing congestion and accidents.

Ensure safe train operation and improve transportation efficiency.

Other industries:

Oil, gas, and chemical industries: Monitor and control key parameters such as pipeline pressure and flow rate to ensure production safety.

Aerospace field: Support control systems with high reliability requirements, such as flight attitude adjustment, engine control, etc.

5、 Product advantages

High performance processing:

By using high-performance processors and advanced control algorithms, fast and accurate control responses, precise motion trajectory planning, and robust data processing can be achieved.

Flexible Scalability:

It can be extended through additional modules (local or remote) to meet more complex application requirements.

Multifunctionality:

Supports a range of control functions, including motion control, logic control, and data acquisition.

Can be connected to various sensors, actuators, and other devices.

Protection function:

Built in overcurrent, overvoltage, and overheating protection mechanisms ensure safe and reliable operation of the equipment.

Easy to integrate:

Designed for easy integration with various devices and systems, supporting multiple programming languages and tools such as ABB's Control Builder M, MATLAB, Simulink, etc.
