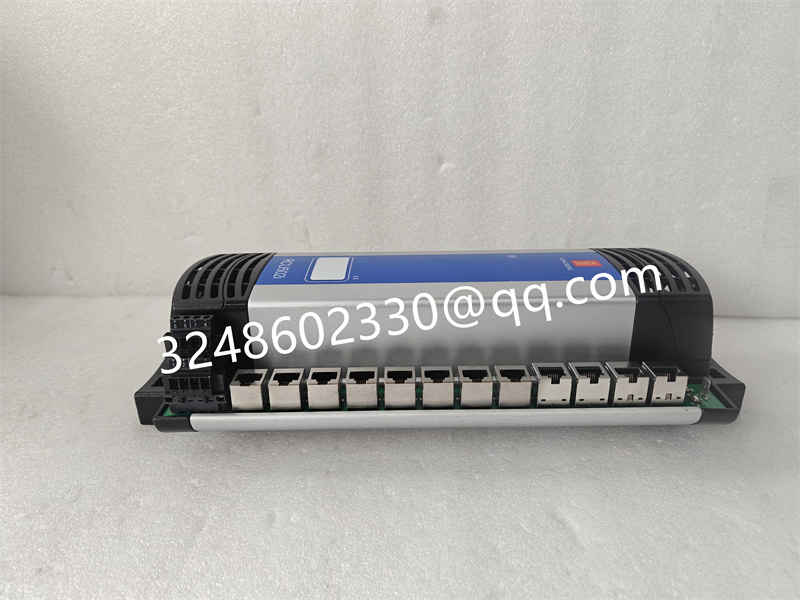

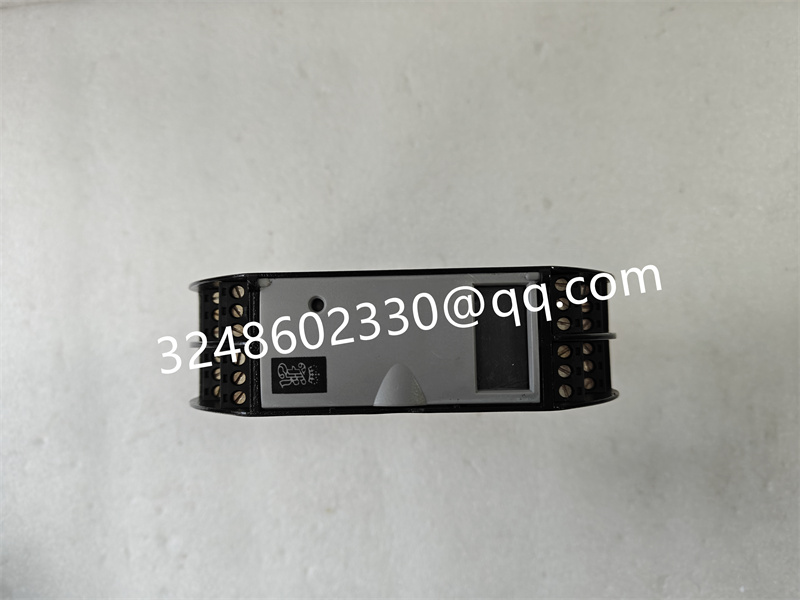

KONGSBERG康士伯RCU502是一款海事船舶专用模块，属于高性能、通用型的实时过程控制计算机，专为广泛的系统应用设计，适用于陆地和海上设施。

一、核心功能

1. 船舶操纵系统：

   • RCU502模块可用于船舶舵机控制、推进器控制和船舶定位等，实现船舶的准确操纵和动力控制。
   • 它支持动态定位系统，用于控制海洋平台、船只和潜水器等设备的位置和运动，确保其保持在特定的位置。

2. 海洋探测设备控制：

   • RCU502模块可用于控制声纳、潜水器和水下机器人等，实现其运动和操作。

3. 报警和监控系统：

   • RCU502模块为各种工业和海洋应用提供可靠的远程控制和数据采集功能。

   •

二、产品特性

1. 高性能与稳定性：

   • RCU502模块采用坚固的工业级设计，具备冗余电源输入和故障监控功能，确保长期稳定运行。
   • 它具有强大的嵌入式PowerPC™架构处理器，即使在恶劣的操作条件下也能提供可靠的性能。
   • 该产品经过Ex Zone 2认证，进一步证明了其在潜在爆炸性环境中的安全性。

2. 强大的通信能力：

   • RCU502模块提供双以太网LAN过程网络接口、双RedundancyNet接口以实现冗余配置、双远程I/O过程总线（RBUS）、多达32个串行通信端口，以及两个PROFIBUS和两个CANBUS通道。
   • 它支持多种工业标准通信协议，如Modbus（串行和TCP）、NMEA 0183、PROFIBUS/PROFIsafe和CAN/DeviceNet，使其能够轻松融入现有的自动化架构中。

3. 灵活的扩展性：

   • RCU502模块具有高度模块化和可扩展性，可以根据具体的船舶设计和操作需求进行定制和扩展。
   • 它支持多种编程语言和配置方式，方便用户根据实际需求进行自定义配置和控制逻辑。

4. 自我检测和故障诊断功能：

   • RCU502模块具备自我检测和故障诊断功能，可以及时检测并提示潜在的问题，使用户可以快速地进行维修和更换。

   •

三、应用场景

1. 船舶和海洋工程：

   • RCU502模块在船舶和海洋工程领域得到广泛应用，如用于动态定位系统（DPS）、推进器控制系统和导航传感器集成等关键应用。

2. 工业自动化：

   • RCU502模块可集成过程控制系统、安全系统以及各种第三方设备，适用于石油天然气、化工、能源和制造业等行业，实现对生产过程的全面监控和自动化管理。

四、产品参数

• 处理器：32位CPU，运行速度为400MHz。
• 内存：32MB 64位、133MHz、SDRAM和ECC。
• 存储器：16MB闪存存储器。
• 输入/输出：20个AI/AO/DI/DO通道，其中AI支持电流、电压、PT100或电位计，AO支持电流或电压（仅信道1至16），DI支持无电势或Namur，DO支持高压侧驱动器。此外，还有4个继电器输出通道。
• 接口：七条通用RS-232/422/485串行线接口（其中两个是隔离的），单串行过程总线（SPBus）接口，双CAN总线接口（需要适配器卡），双Profi总线接口（需要适配器卡），双以太网LAN接口（10BASE-T/100BASE-T）。
• 电气参数：输入电压为24VDC±20%，功率消耗最大为20W+回路功率。
• 环境规格：工作温度为0°C至70°C，存储温度为-25°C至70°C，工作湿度最高可达98%相对湿度（非冷凝），存储湿度最高可达98%相对湿度（非冷凝）。
• 尺寸与重量：高度为355mm，宽度为158mm，深度为87mm，重量约为4.35kg。

KONGSBERG RCU502 is a specialized module for maritime vessels, belonging to a high-performance, universal real-time process control computer designed for a wide range of system applications, suitable for both land and sea facilities.

1、 Core functions

Ship maneuvering system:

The RCU502 module can be used for ship servo control, thruster control, and ship positioning, achieving accurate ship maneuvering and power control.

It supports a dynamic positioning system for controlling the position and movement of equipment such as ocean platforms, ships, and submersibles to ensure they remain in specific positions.

Control of ocean exploration equipment:

The RCU502 module can be used to control sonar, submersibles, and underwater robots to achieve their movements and operations.

Alarm and monitoring system:

The RCU502 module provides reliable remote control and data acquisition functions for various industrial and marine applications.

2、 Product Features

High performance and stability:

The RCU502 module adopts a robust industrial grade design, with redundant power input and fault monitoring functions to ensure long-term stable operation.

It has a powerful embedded PowerPC ™ Architecture processors can provide reliable performance even under harsh operating conditions.

This product has been certified by Ex Zone 2, further demonstrating its safety in potentially explosive environments.

Powerful communication capability:

The RCU502 module provides dual Ethernet LAN process network interfaces, dual RedundancyNet interfaces for redundant configuration, dual remote I/O process bus (RBUS), up to 32 serial communication ports, as well as two PROFIBUS and two CANBUS channels.

It supports multiple industrial standard communication protocols, such as Modbus (serial and TCP), NMEA 0183, PROFIBUS/PROFIsafe, and CAN/DeviceNet, making it easy to integrate into existing automation architectures.

Flexible scalability:

The RCU502 module has high modularity and scalability, and can be customized and expanded according to specific ship design and operational requirements.

It supports multiple programming languages and configuration methods, making it convenient for users to customize configuration and control logic according to their actual needs.

Self testing and fault diagnosis functions:

The RCU502 module has self testing and fault diagnosis functions, which can detect and prompt potential problems in a timely manner, allowing users to quickly carry out repairs and replacements.

3、 Application scenarios

Ship and Ocean Engineering:

The RCU502 module has been widely used in the fields of ship and ocean engineering, such as for key applications such as dynamic positioning systems (DPS), thruster control systems, and navigation sensor integration.

Industrial automation:

The RCU502 module can integrate process control systems, safety systems, and various third-party devices, suitable for industries such as oil and gas, chemical, energy, and manufacturing, to achieve comprehensive monitoring and automated management of production processes.

4、 Product parameters

Processor: 32-bit CPU, running at 400MHz.

Memory: 32MB 64 bit, 133MHz, SDRAM, and ECC.

Memory: 16MB flash memory.

Input/Output: 20 AI/AO/DI/DO channels, where AI supports current, voltage, PT100 or potentiometer, AO supports current or voltage (only channels 1 to 16), DI supports no potential or Namur, DO supports high voltage side driver. In addition, there are four relay output channels.

Interface: Seven universal RS-232/422/485 serial line interfaces (two of which are isolated), single serial process bus (SPBus) interface, dual CAN bus interface (adapter card required), dual Profi bus interface (adapter card required), dual Ethernet LAN interface (10BASE-T/100BASE-T).

Electrical parameters: Input voltage is 24VDC ± 20%, maximum power consumption is 20W+circuit power.

Environmental specifications: The working temperature ranges from 0 ° C to 70 ° C, the storage temperature ranges from -25 ° C to 70 ° C, the working humidity can reach up to 98% relative humidity (non condensing), and the storage humidity can reach up to 98% relative humidity (non condensing).

Size and weight: Height 355mm, width 158mm, depth 87mm, weight approximately 4.35kg.
