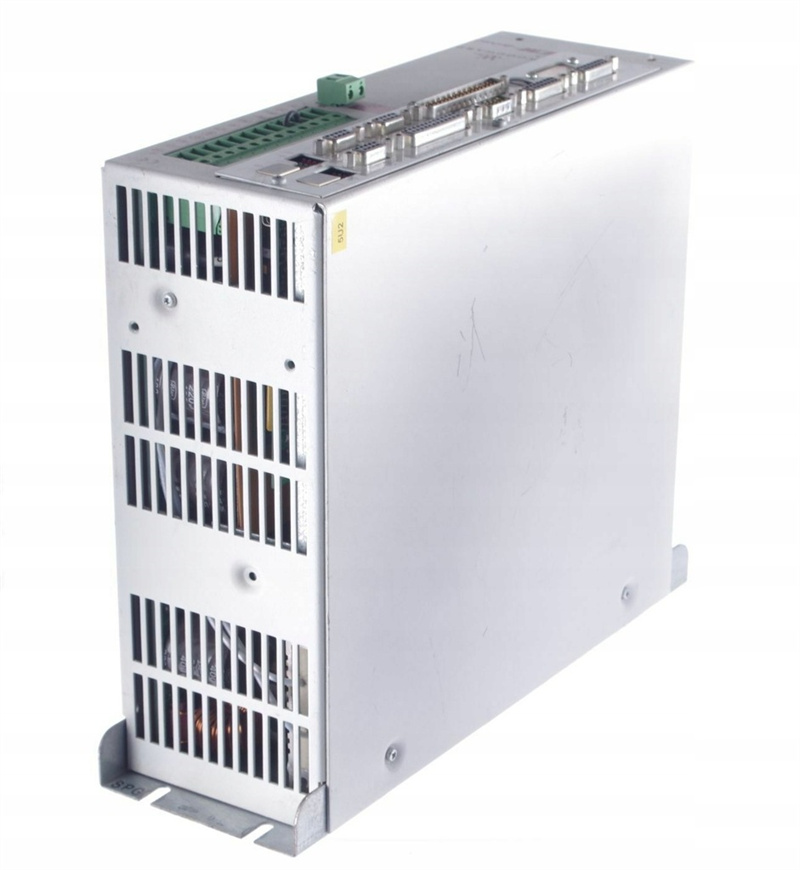

Woodward 3522-1004 servo drive is a high-performance servo control device produced by Woodward Corporation

1、 Product Overview

Model: 3522-1004

Brand: Woodward

Type: Servo Drive

Application areas: energy, aviation, industrial automation, etc., known for its precise control performance and reliability.

2、 Functional characteristics

High precision closed-loop control:

Provide stable closed-loop feedback control for positioning or speed adjustment of high-precision servo systems.

Supports multiple control modes, including position control, speed control, and force control.

Compatibility:

Support analog signal input (such as voltage or current) to flexibly adapt to different system requirements.

Compatible with various sensors such as potentiometers, differential transformers, etc., used for feedback signal acquisition.

Dynamic response:

The driver design has fast dynamic response capability and can adapt to high-speed changing control requirements.

Especially suitable for scenarios that require precise positioning and high dynamic performance.

Protection function:

Built in overcurrent, overvoltage, and short-circuit protection functions enhance the safety and reliability of equipment operation.

Support alarm output for easy system fault diagnosis.

Environmental adaptability:

Industrial grade design, adaptable to various harsh environments, ensuring stable operation under extreme temperature and vibration conditions.

Supports standard industrial voltage range (specific voltage values depend on module configuration).

Installation method:

Supports panel or rack installation, with a protection level suitable for industrial site use.

3、 Application Cases

Control of actuators for gas turbines, steam turbines, and other equipment:

Used to control servo valves or other precision actuators to ensure stable operation of equipment.

Flight control system:

Applied in flight control systems for precise positioning of critical components.

Power generation equipment:

The servo system used for power generation equipment ensures stable operation.

4、 Technical advantages

High precision control: suitable for various high-performance application scenarios.

High reliability: Industrial grade design, suitable for harsh environmental conditions.

Flexibility: Supports multiple signal types and control modes, facilitating system integration.

Comprehensive protection: Built in multiple protection mechanisms to extend device lifespan.
