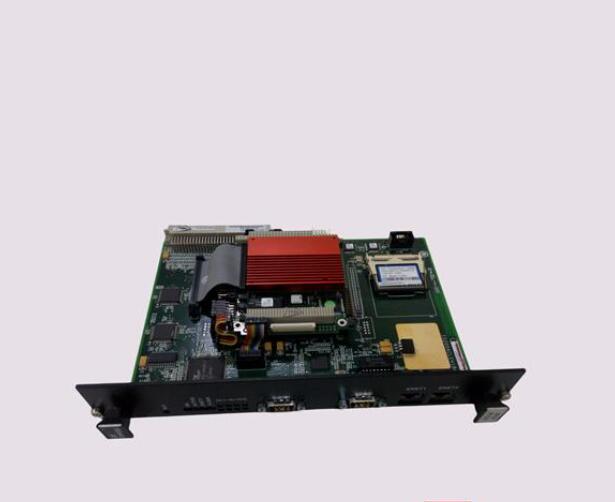

IS215ACLEH1A 是 GE（通用电气）生产的应用控制层模块（ACLE），主要用于 EX2100 系列励磁控制系统，以下是对其详细介绍：

一、核心功能

1. 主控制器角色
   • 作为励磁控制系统的核心，协调各控制模块和通信接口，管理并调节发电厂发电机的励磁系统。
   • 确保发电机电压和励磁电流的适当调节，维持系统稳定性并优化发电机性能。
2. 高速处理能力
   • 配备高性能处理器（如 400 MHz Tualatin Celeron 或 Pentium P5 266 MHz），支持复杂控制算法的实时响应。
   • 部分型号采用 80386EX 处理器（25 MHz），适用于对计算能力要求较低的场景。
3. 通信枢纽功能
   • 支持多种通信协议，包括以太网、RS-232、RS-485、FIP、Profibus 等，实现与现场设备、监控系统及其他控制模块的数据交换。
   • 配备 PCI 控制器和双以太网端口，增强网络连接灵活性。
4. 诊断与维护支持
   • 提供全面的系统健康监控功能，识别潜在问题并提醒操作员及时采取纠正措施。
   • 支持在线维护和故障诊断，减少停机时间。

二、技术参数

• 处理器类型：400 MHz Tualatin Celeron / Pentium P5 266 MHz / 80386EX 25 MHz
• 内存配置：部分型号配备 128KB 二级缓存、8MB DRAM 和 4MB 闪存 BIOS
• 通信接口：
  • 以太网（10BaseT）
  • 串行端口（COM1/COM2，支持 SNP/SNP-X 从机协议）
  • PCI 控制器、总线目标接口
• 工作温度：0-60℃（部分型号支持 -30 至 65℃）
• 电源要求：+5 VDC（电流需求因型号而异，如 670 mA 或 3.0 A）
• 物理尺寸：双插槽设计，6U 高度，适用于标准 VME 机架安装
• 操作系统：QNX（部分型号运行 QNX4）

三、应用场景

1. 发电厂励磁控制
   • 作为 EX2100 系列励磁控制系统的核心模块，管理发电机励磁电流和电压，确保电网稳定性。
2. 工业自动化系统
   • 适用于需要高速数据处理和可靠通信的工业场景，如石油化工、电力、冶金等领域。
3. 自动化驱动装配
   • 在 Innovation Series 自动化驱动装配中，支持励磁控制过程的自动化管理。

四、优势特点

1. 高性能与可靠性
   • 强大的处理器和冗余设计确保系统连续运行，满足工业连续生产需求。
2. 灵活的通信支持
   • 多协议兼容性使其能够无缝集成至现有系统，支持长距离数据传输。
3. 模块化设计
   • 易于安装和维护，支持在线更换故障部件，减少停机时间。
4. 广泛的环境适应性
   • 部分型号支持宽温度范围（-30 至 65℃），适用于恶劣工业环境。

五、型号差异

• 基础型号（如 80386EX 处理器）：
  • 适用于对计算能力要求较低的场景，如基本励磁控制。
  • 扫描速率 0.22 毫秒/K，最大用户程序内存 32K 字节。
• 高性能型号（如 400 MHz Tualatin Celeron）：
  • 支持复杂控制算法和实时响应，适用于大型发电厂或高要求工业场景。
  • 配备更强大的内存和存储配置，提升系统性能。

• 特殊环境型号：

  • 采用表面贴装技术（SMT），支持更宽的工作温度范围（-30 至 65℃），适用于极端环境。

•

• IS215ACLEH1A is an application control layer module (ACLE) produced by GE (General Electric), mainly used for EX2100 series excitation control systems. The following is a detailed introduction to it:

•


• 1、 Core functions

• Main controller role

• As the core of the excitation control system, it coordinates various control modules and communication interfaces, manages and regulates the excitation system of the power plant generator.

• Ensure proper regulation of generator voltage and excitation current, maintain system stability, and optimize generator performance.

• High speed processing capability

• Equipped with high-performance processors such as 400 MHz Tualatin Celeron or Pentium P5 266 MHz, supporting real-time response to complex control algorithms.

• Some models use 80386EX processors (25 MHz), which are suitable for scenarios with lower computing power requirements.

• Communication hub function

• Supports multiple communication protocols, including Ethernet, RS-232, RS-485, FIP, Profibus, etc., to achieve data exchange with field devices, monitoring systems, and other control modules.

• Equipped with PCI controller and dual Ethernet ports to enhance network connectivity flexibility.

• Diagnosis and maintenance support

• Provide comprehensive system health monitoring functions, identify potential issues, and remind operators to take corrective measures in a timely manner.

• Support online maintenance and fault diagnosis to reduce downtime.

• 2、 Technical parameters

• Processor type: 400 MHz Tualatin Celeron/Pentium P5 266 MHz/80386EX 25 MHz

• Memory configuration: Some models are equipped with 128KB L2 cache, 8MB DRAM, and 4MB flash BIOS

• Communication interface

• Ethernet (10BaseT)

• Serial port (COM1/COM2, supports SNMP/SNP-X slave protocol)

• PCI controller, bus target interface

• Working temperature: 0-60 ℃ (some models support -30 to 65 ℃)

• Power requirement:+5 VDC (current requirement varies by model, such as 670 mA or 3.0 A)

• Physical dimensions: Dual slot design, 6U height, suitable for standard VME rack installation

• Operating system: QNX (some models run QNX4)

• 3、 Application scenarios

• Excitation control for power plants

• As the core module of the EX2100 series excitation control system, it manages the excitation current and voltage of the generator to ensure the stability of the power grid.

• Industrial automation system

• Suitable for industrial scenarios that require high-speed data processing and reliable communication, such as petrochemicals, power, metallurgy, and other fields.

• Automated Drive Assembly

• In the Innovation Series automated drive assembly, automated management of excitation control processes is supported.

• 4、 Advantages and Characteristics

• High performance and reliability

• The powerful processor and redundant design ensure the continuous operation of the system, meeting the needs of industrial continuous production.

• Flexible communication support

• Multi protocol compatibility enables seamless integration into existing systems and supports long-distance data transmission.

• modular design

• Easy to install and maintain, supports online replacement of faulty components, and reduces downtime.

• Wide environmental adaptability

• Some models support a wide temperature range (-30 to 65 ℃) and are suitable for harsh industrial environments.

• 5、 Model difference

• Basic model (such as 80386EX processor):

• Suitable for scenarios with low computing power requirements, such as basic excitation control.

• Scan rate of 0.22 milliseconds/K, maximum user program memory of 32K bytes.

• High performance models (such as 400 MHz Tualatin Celeron):

• Supports complex control algorithms and real-time response, suitable for large power plants or high demand industrial scenarios.

• Equipped with more powerful memory and storage configurations to enhance system performance.

• Special environmental model:

• Adopting surface mount technology (SMT), it supports a wider operating temperature range (-30 to 65 ℃) and is suitable for extreme environments.
