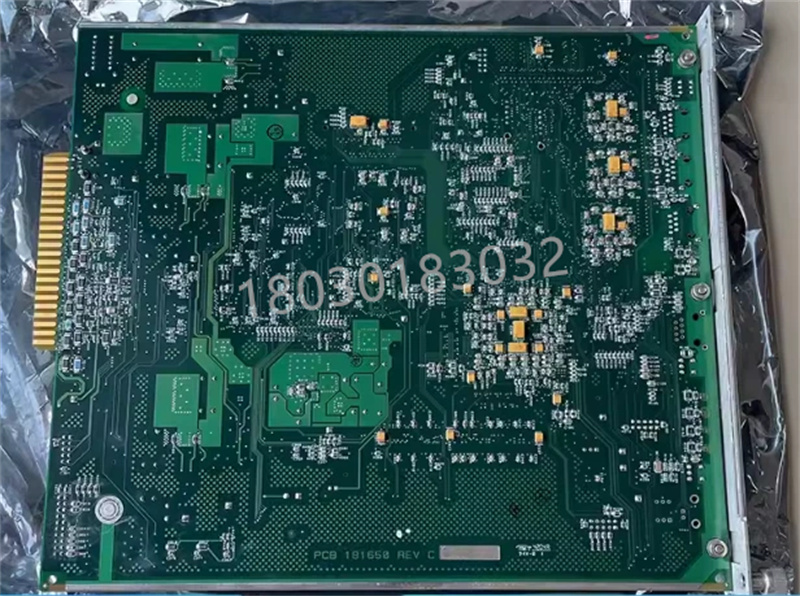

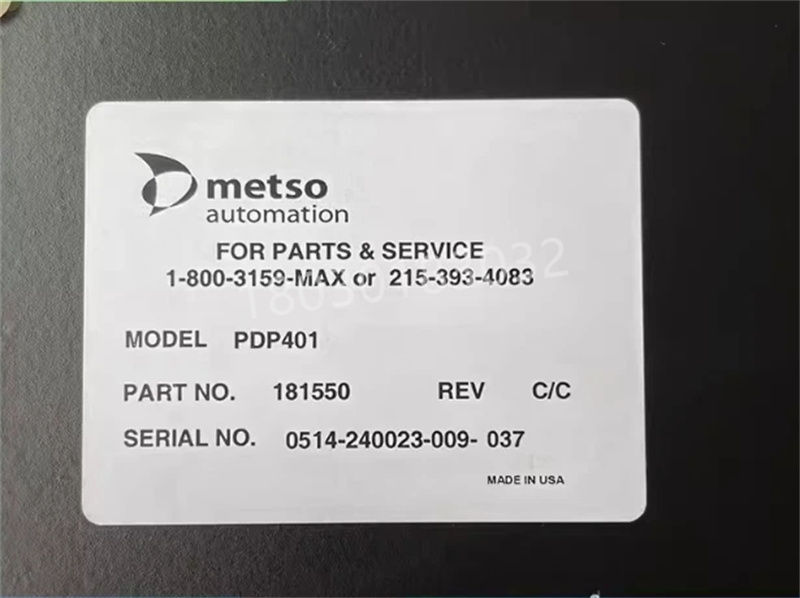

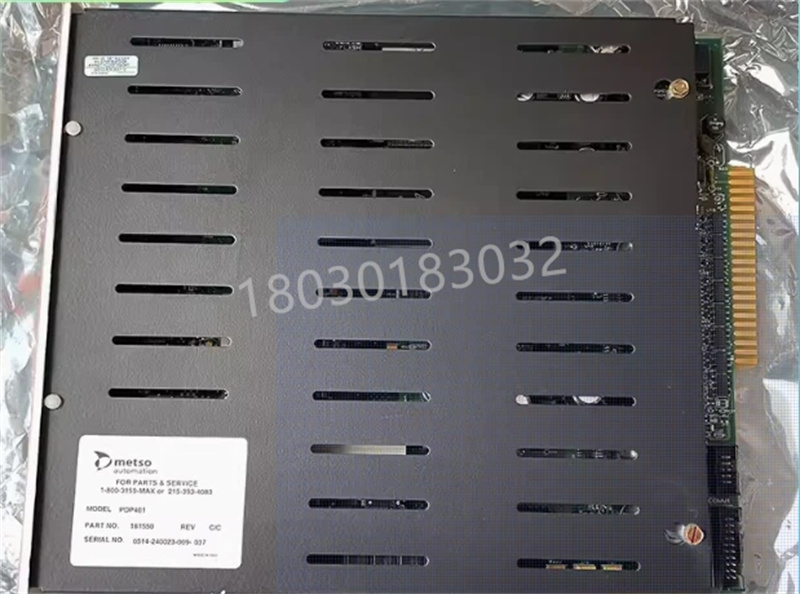

METSO PDP401 分布式处理模块

产品概述

METSO PDP401 是一款高性能的分布式处理模块，专为工业自动化和过程控制系统设计。它能够高效地处理复杂的控制任务，提供稳定可靠的性能，广泛应用于多个工业领域。

技术规格

处理器：32位 RISC 处理器，时钟频率 100 MHz。

内存：128MB SDRAM。

存储：256MB Flash。

通信接口：支持以太网、RS-232/485 等多种通信协议。

输入输出接口：支持模拟输入/输出和数字输入/输出。

工作温度：-25°C 至 +60°C。

存储温度：-40°C 至 +85°C。

相对湿度：5% 至 95%（无冷凝）。

防护等级：IP65。

尺寸：300 mm × 200 mm × 100 mm。

重量：约 2.5 kg。

功能特点

分布式控制：支持将控制功能分散部署于不同位置，实现灵活的系统配置与管理。

数据采集与处理：支持模拟量和数字量传感器数据的采集，并具备强大的数据处理能力。

通信能力：配备多种通信接口，支持与各类工业设备无缝连接，满足远程监控和系统集成需求。

编程与逻辑控制：基于 IEC 61131-3 标准，支持梯形图（LD）、结构化文本（ST）、功能块图（FBD）等多种编程语言，用户可自定义控制逻辑。

实时监测：提供实时监测功能，用于监视系统状态、输入/输出信号的值以及事件和警报。

数据记录和报告：具备数据记录和报告功能，可记录历史数据并生成报告，便于分析和审查系统性能。

用户友好界面：提供用户友好的图形界面或配置工具，用于配置和调整模块的参数和逻辑。

模块化设计：支持根据需要扩展控制通道数量，适应不同规模的系统需求。

应用领域

METSO PDP401 广泛应用于以下领域：

工业过程控制：如石油、化工、电力系统的实时监控与调节。

设备管理：支持资产管理、能源优化及安全防护功能。

智能制造：集成物联网（IoT）技术，实现高效数据处理与设备协同。

矿业：用于监控和控制采矿过程中的各种设备和流程。

纸浆和纸张：优化生产流程，提高生产效率。

能源：用于发电厂、变电站等电力设备的控制。

水处理：用于水处理厂的自动化控制。

食品饮料：用于食品和饮料行业的生产过程控制。

Metso pdp401 distributed processing module Product overview Metso pdp401 is a high-performance distributed processing module designed for industrial automation and process control systems. It can efficiently handle complex control tasks, provide stable and reliable performance, and is widely used in many industrial fields. technical specifications Processor: 32-bit RISC processor, clock frequency 100 MHz. Memory: 128MB SDRAM. Storage: 256MB flash. Communication interface: support Ethernet, rs-232/485 and other communication protocols. Input/output interface: it supports analog input/output and digital input/output. Operating temperature: -25 ° C to+60 ° C. Storage temperature: -40 ° C to+85 ° C. Relative humidity: 5% to 95% (non condensing). Protection grade: IP65. Size: 300 mm × 200 mm × 100 mm. Weight: about 2.5 kg. Functional features Distributed control: support the decentralized deployment of control functions in different locations to achieve flexible system configuration and management. Data acquisition and processing: it supports the acquisition of analog and digital sensor data and has strong data processing capability. Communication capability: it is equipped with a variety of communication interfaces to support seamless connection with various industrial equipment and meet the requirements of remote monitoring and system integration. Programming and logic control: Based on IEC 61131-3 standard, it supports ladder diagram (LD), structured text (st), function block diagram (FBD) and other programming languages, and users can customize the control logic. Real time monitoring: provide real-time monitoring function to monitor system status, value of input/output signals, events and alarms. Data recording and reporting: it has the function of data recording and reporting, which can record historical data and generate reports to facilitate the analysis and review of system performance. User friendly interface: provide user-friendly graphical interface or configuration tools for configuring and adjusting module parameters and logic. Modular design: support the expansion of the number of control channels as required to meet the needs of systems of different sizes. application area Metso pdp401 is widely used in the following fields: Industrial process control: such as real-time monitoring and regulation of petroleum, chemical and power systems. Equipment management: support asset management, energy optimization and safety protection functions. Intelligent Manufacturing: integrate Internet of things (IOT) technology to achieve efficient data processing and equipment collaboration. Mining: used to monitor and control various equipment and processes in the mining process. Pulp and paper: optimize production process and improve production efficiency. Energy: used for the control of power plants, substations and other electrical equipment. Water treatment: used for automatic control of water treatment plant. Food and beverage: used for production process control in the food and beverage industry.
