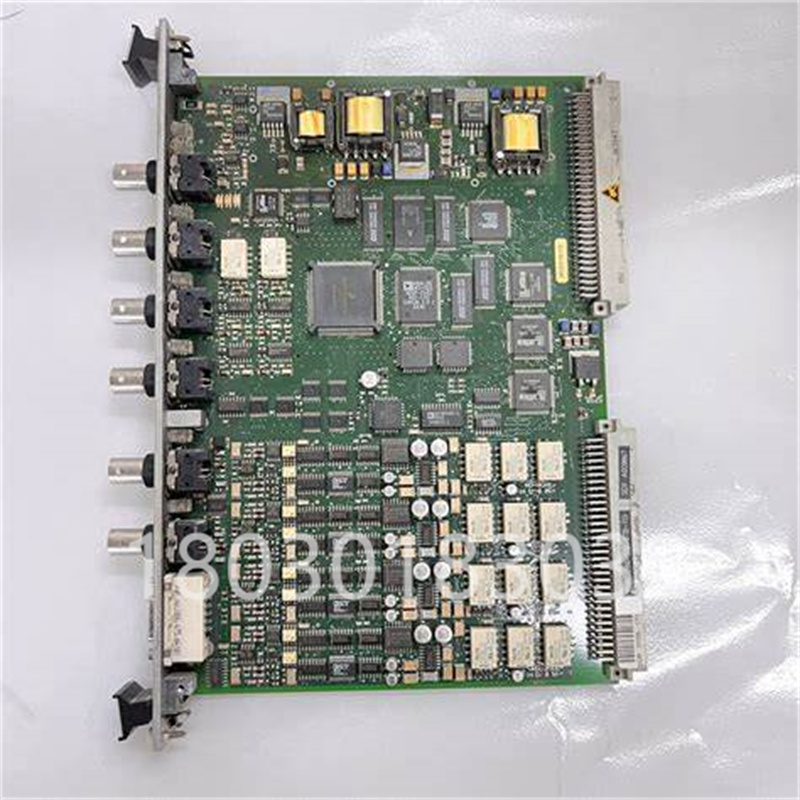

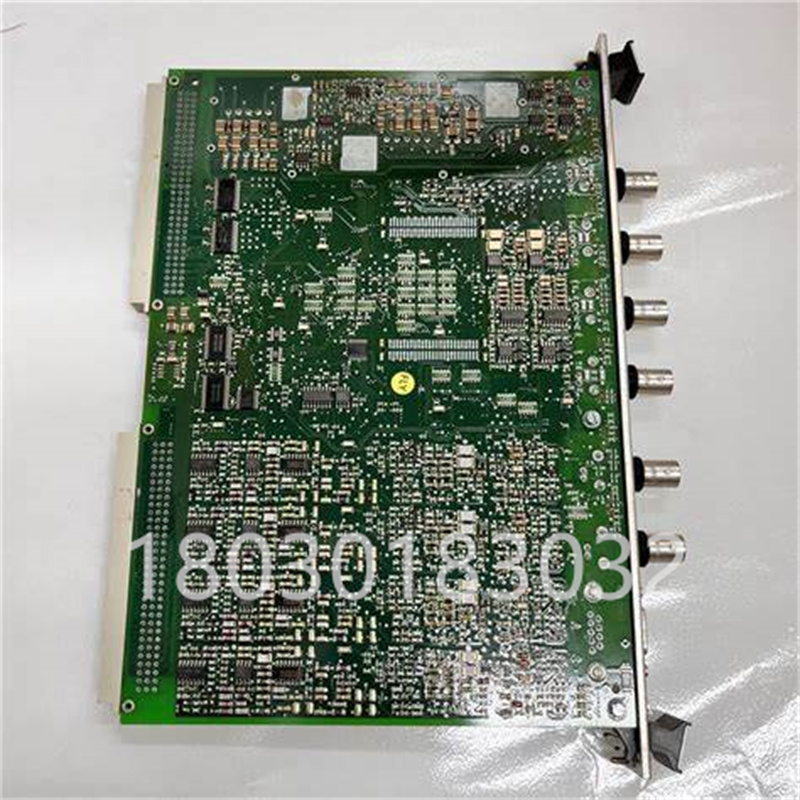

### MPC4 200-510-071-113 振动监测保护卡
#### 产品概述
MPC4 200-510-071-113 是一款高精度的机械保护卡,属于 Vibro-Meter VM600 系列机械保护系统(MPS)。它主要用于监测和保护机械设备,防止潜在的故障或损坏。通过实时监控振动数据,帮助用户及时发现设备异常情况并进行维护。
#### 技术规格
- **输入通道**:
- 4个动态信号通道(加速度、速度、位移信号)。
- 2个转速计通道。
- **测量范围**:
- 动态信号:0至±10V AC。
- 转速计:支持机器速度监测。
- **频率范围**:0.1 Hz至10 kHz。
- **数据采样率**:高达每秒256次。
- **存储容量**:可以存储10,000条数据。
- **报警功能**:
- 幅值报警、频率报警、相位报警等。
- 2个继电器输出和2个报警信号。
- **通信接口**:RS-232、RS-485、以太网。
- **工作温度**:-20°C至+70°C。
- **尺寸**:12.7 cm x 5.1 cm x 17.8 cm。
- **重量**:0.4 kg。
#### 功能特点
- **高精度监测**:采用高精度传感器和信号处理技术,提供精确的振动和转速测量。
- **多通道监测**:能够同时监测多路振动信号,满足不同应用需求。
- **灵活的保护功能**:提供多种保护功能,可根据实际需要进行配置。
- **可编程设置**:报警阈值、跳闸水平和其他参数可针对特定设备和应用进行自定义。
- **实时监控与分析**:支持实时数据采集和分析,帮助用户快速识别设备异常。
- **模块化设计**:模块化结构,方便安装和维护。
#### 应用领域
MPC4 200-510-071-113 广泛应用于以下领域:
- **电力行业**:发电厂、变电站。
- **石油和天然气行业**:炼油厂、化工厂。
- **制造业**:工业生产线。
- **矿业**:采矿设备。
- **航空航天**:飞机发动机保护。
#### 优势
- **高可靠性**:采用冗余设计,确保系统运行稳定。
- **符合安全标准**:符合SIL 2标准,适用于安全关键应用。
- **易于安装与扩展**:提供多种安装选项,支持模块化扩展。
- **数据记录与分析**:具备数据保留和记录功能,便于后续分析和报告。
MPC4 200-510-071-113 振动监测保护卡凭借其高性能、多功能和高可靠性,成为工业自动化和机械保护系统中的重要组件。
V7768-320001 350-930100776 |
V7768-320000 |
V7768-312001 350-930100776 |
685-247270-001 |
SR489-P5-LO-A20-E |
VMIVME-7750 VMIVME-7750 |
H20C1-1 |
61-428059-00 |
H201TI |
1900/65A-01-01-03-00-01 |
VMIVME-7750 VMIVME 7750 |
H20C1-1 |
61-428059-00 |
H201T1 |
1900/65A-01-01-03-00-01 |
VMM600 RPS6U 200-582-500-0 |
1900/65A-01-01-03-00-01 |
PCD235A101 3BHE032025R01 |
1900/65A-01-01-03-00-01 |
4351B |
F8650X 984865065 |
04240FD11234A |
VM600 MPC4 200-510-071-11 |
369-HI-R-0-0-0 |
1900/65A-01-01-03-00-01 |
AAP3798102-00037 |
1900/65A-01-01-03-00-01 |
VM600 RPS6U 200-582-500-0 |
1900/65A-01-01-03-00-01 |
PCD235A101 3BHE032025R01 |
4351B |
F8650X 984865065 |
04240FD11234A |
VM600 MPC4 200-510-071-11 |
369-HI-R-0-0-0 |
1900/65A-01-01-03-00-01 |
AAP3798102-00037 |
###MPC4 200-510-071-113 Vibration Monitoring and Protection Card
####Product Overview
MPC4 200-510-071-113 is a high-precision mechanical protection card belonging to the Vibro Meter VM600 series mechanical protection system (MPS). It is mainly used for monitoring and protecting mechanical equipment to prevent potential malfunctions or damage. By monitoring vibration data in real-time, it helps users detect equipment abnormalities in a timely manner and perform maintenance.
####Technical specifications
-* * Input channel * *:
-Four dynamic signal channels (acceleration, velocity, displacement signals).
-Two tachometer channels.
-Measurement range:
-Dynamic signal: 0 to ± 10V AC.
-Tachometer: Supports machine speed monitoring.
-Frequency range: 0.1 Hz to 10 kHz.
-* * Data sampling rate * *: up to 256 times per second.
-* * Storage capacity * *: can store 10000 pieces of data.
-* * Alarm function * *:
-Amplitude alarm, frequency alarm, phase alarm, etc.
-Two relay outputs and two alarm signals.
-Communication interface: RS-232, RS-485, Ethernet.
-Working temperature: -20 ° C to+70 ° C.
-* * Size * *: 12.7 cm x 5.1 cm x 17.8 cm.
-Weight: 0.4 kg.
####Functional Features
-High precision monitoring: using high-precision sensors and signal processing technology to provide accurate vibration and speed measurements.
-Multi channel monitoring: capable of simultaneously monitoring multiple vibration signals to meet different application requirements.
-* * Flexible protection function * *: Provides multiple protection functions that can be configured according to actual needs.
-* * Programmable settings * *: Alarm thresholds, trip levels, and other parameters can be customized for specific devices and applications.
-Real time monitoring and analysis: Supports real-time data collection and analysis, helping users quickly identify device abnormalities.
-Modular design: Modular structure for easy installation and maintenance.
####Application Fields
MPC4 200-510-071-113 is widely used in the following fields:
-Power industry: power plants, substations.
-Oil and gas industry: refineries, chemical plants.
-Manufacturing industry: Industrial production lines.
-Mining: Mining equipment.
-Aerospace: Aircraft engine protection.
####Advantages
-* * High reliability * *: Adopting redundant design to ensure stable system operation.
-Compliant with safety standards: Compliant with SIL 2 standards, suitable for safety critical applications.
-Easy to install and expand: Provides multiple installation options and supports modular expansion.
-* * Data Recording and Analysis * *: Equipped with data retention and recording functions, facilitating subsequent analysis and reporting.
The MPC4 200-510-071-113 vibration monitoring and protection card has become an important component in industrial automation and mechanical protection systems due to its high performance, multifunctionality, and high reliability.
