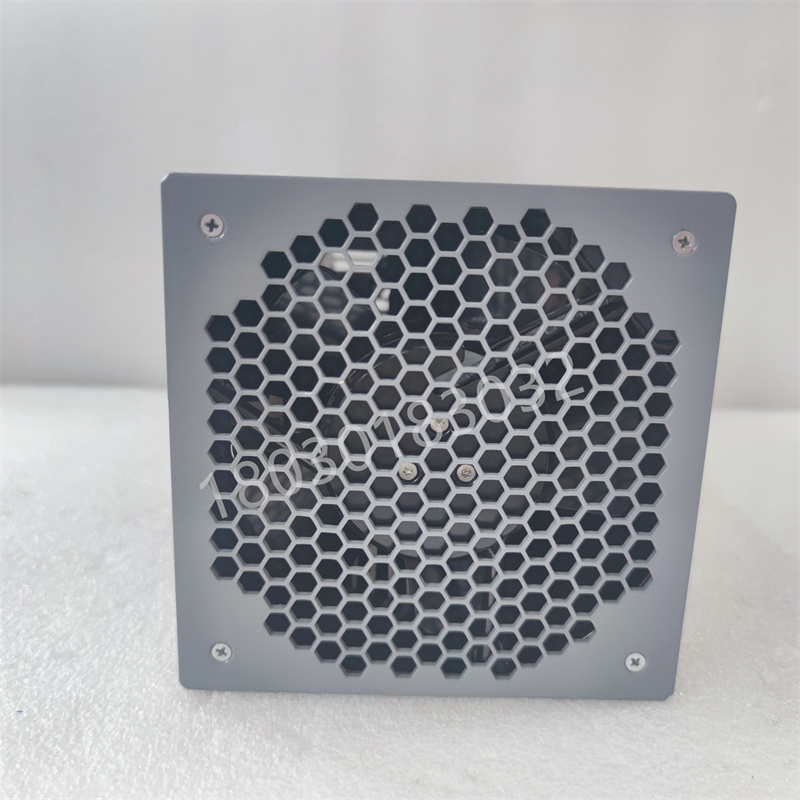

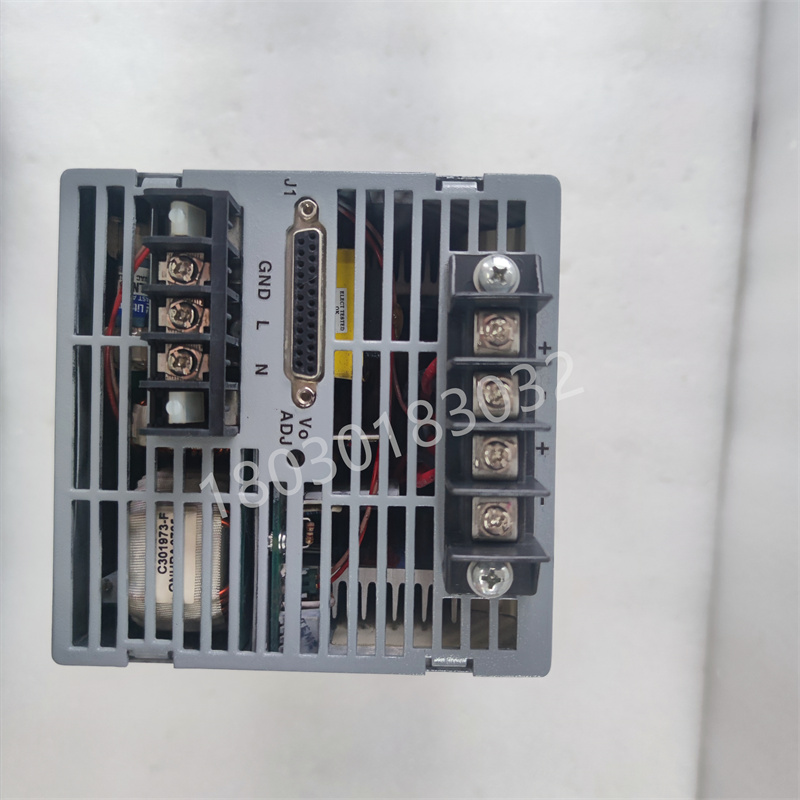

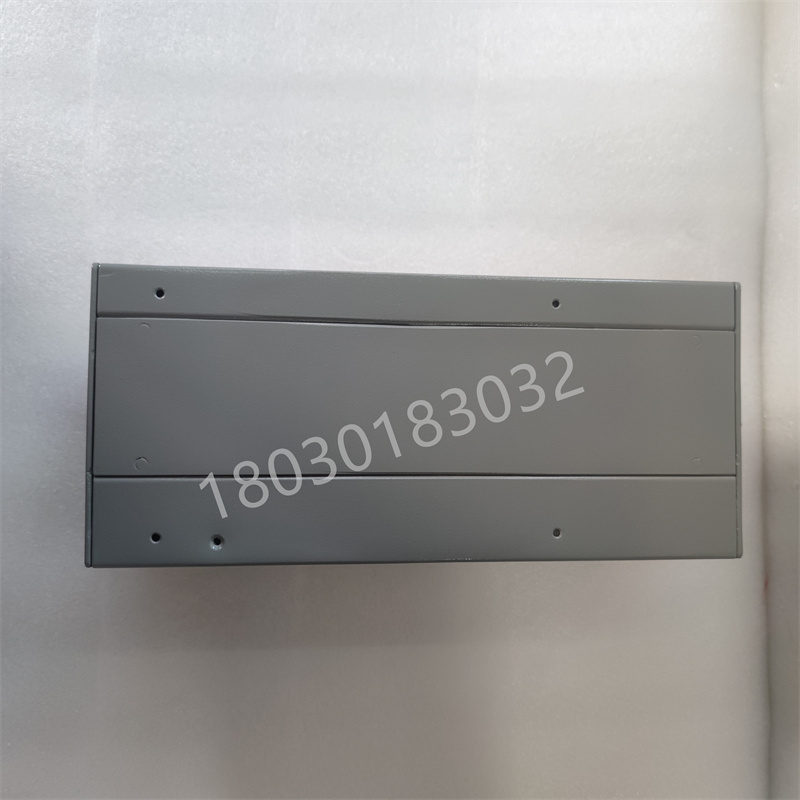

### A-B 80026-524-01-R 门极模块换向晶闸管

#### 技术规格

- **型号**：80026-524-01-R

- **品牌**：AB/三菱

- **产品名称**：可控硅，IGCT模块

- **工作电压**：85至264V AC

- **输出电压**：24V DC

- **最大输出电流**：5.0A

- **效率**：94%

- **防护等级**：IP20

- **工作温度**：-10°C至+40°C

- **功率因数**：0.95

- **重量**：1.2kg

- **尺寸**：125mm x 66mm x 35mm

#### 应用场景

- **交流电动机驱动**：为交流电动机提供稳定电源，确保其高效运行。

- **电源转换**：用于不同电力系统之间的能量转换，例如直流电和交流电之间的转换。

- **电力传输**：在工业设施中传输电力，确保能源的高效分配。

#### 特点

- **高耐压**：能够承受较大的电压波动和冲击。

- **高电流**：具有较大的电流容量，能够承受较大的电流负载。

- **高速控制**：通过控制门极电压，可以快速、准确地控制晶闸管的导通状态。

- **节能环保**：工作时产生的热量较少，不需要大型散热器，减少能源浪费和环境污染。

此晶闸管模块因其高可靠性、高电磁抗扰度以及简单的控制接口，在中型功率半导体工业应用中被广泛使用。

###A-B 80026-524-01-R Gate Module Reversing Thyristor

####Technical specifications

-* * Model * *: 80026-524-01-R

-* * Brand * *: AB/Mitsubishi

-Product Name: Controllable Silicon, IGCT Module

-* * Working voltage * *: 85 to 264V AC

-* * Output voltage * *: 24V DC

-Maximum output current: 5.0A

-Efficiency: 94%

-* * Protection level * *: IP20

-* * Working temperature * *: -10 ° C to+40 ° C

-* * Power factor * *: 0.95

-Weight: 1.2kg

-* * Size * *: 125mm x 66mm x 35mm

####Application scenarios

-AC motor drive: provides stable power supply for AC motors to ensure their efficient operation.

-* * Power Conversion * *: Used for energy conversion between different power systems, such as the conversion between direct current and alternating current.

-* * Electricity Transmission * *: Transmitting electricity in industrial facilities to ensure efficient distribution of energy.

####Characteristics

-High voltage resistance: able to withstand large voltage fluctuations and impacts.

-High current: It has a large current capacity and can withstand large current loads.

-High speed control: By controlling the gate voltage, the conduction state of the thyristor can be quickly and accurately controlled.

-Energy saving and environmental protection: It generates less heat during operation and does not require large radiators, reducing energy waste and environmental pollution.

This thyristor module is widely used in medium-sized power semiconductor industrial applications due to its high reliability, high electromagnetic immunity, and simple control interface.
