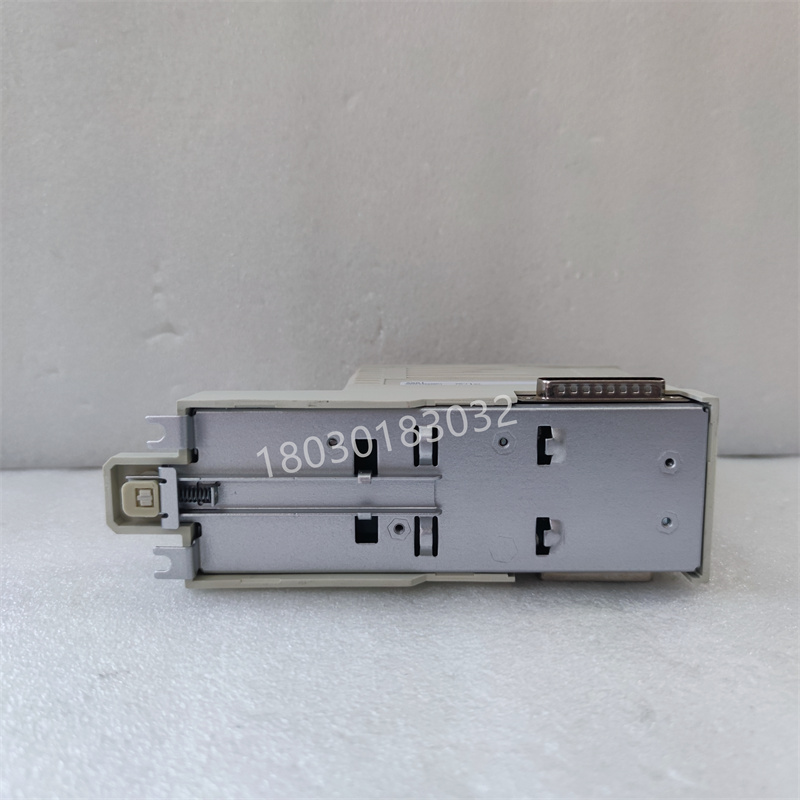

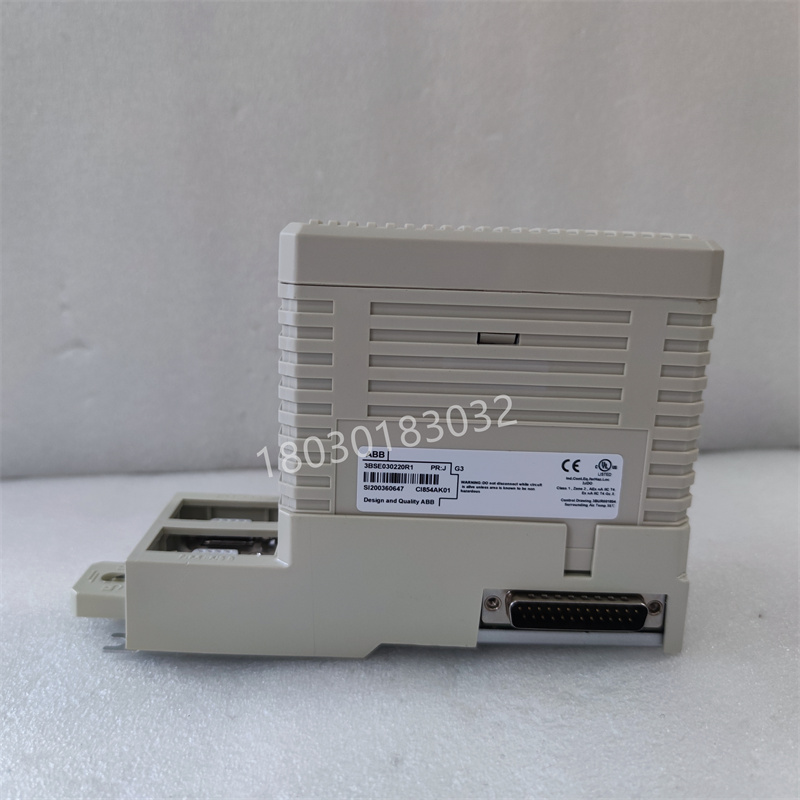

ABB CI854AK01 3BSE030220R1是适配ABB AC 800M控制系统的PROFIBUS DP/V1工业通信接口模块，专为工业自动化场景设计，用于搭建控制器与现场设备的高可靠数据交互通道。

ABB CI854AK01 3BSE030220R1 is a PROFIBUS DP/V1 industrial communication interface module designed for ABB AC 800M control systems, specifically for industrial automation scenarios. It is used to establish a highly reliable data exchange channel between controllers and field devices.

1、 Basic product information

Product ownership: ABB AC 800M controller product line communication module

Supporting components: including CI854 communication interface+TP854 base

Compliance Statement: Non RoHS 2 compliant products are only applicable for maintenance and upgrades of systems launched before July 22, 2017. New installations must be replaced with CI854BK01 (3BSE069449R1)

Protection level: IP20, only supports cabinet installation

2、 Core technical parameters

Communication protocol: Supports PROFIBUS DP V0/V1 master/slave mode, some versions are compatible with Modbus RTU

Communication speed: up to 12Mbps

Power supply specification: 24V DC, allowable fluctuation range 19.2V~28.8V DC, maximum power consumption 2.5W

Data capacity: capable of carrying up to 244 input bytes and 244 output bytes of communication data

Working temperature: Different versions cover a wide temperature range of -40 ℃~+70 ℃, -20 ℃~+60 ℃, etc

Installation method: Standard 35mm DIN rail installation, connected to AC 800M controller CPU through backplane bus

Certification standards: Complies with CE, UL, CSA electrical safety regulations and can be used in conventional industrial and some hazardous areas

3、 Key functional characteristics

Redundancy design: Supports 1:1 hot redundancy architecture, enabling undisturbed switching in case of main link failure, ensuring zero communication interruption

Online configuration: supports online parameter modification and configuration adjustment, and can complete debugging without shutting down the control system

Self diagnostic function: Real time monitoring of network connection status, data transmission error rate, and rapid localization of communication failure points

Seamless integration: native adaptation with AC 800M controller, configuration does not require additional adaptation components, simplifying the system setup process

4、 Typical application scenarios

Process industry: chemical production equipment, water treatment systems, connecting DCS with flow meters, regulating valves and other on-site instruments

Discrete manufacturing: automotive assembly production lines, food processing equipment, achieving efficient data transmission between PLC, frequency converters, and sensors

Energy sector: Continuous production scenarios in the power and metallurgical industries, suitable for production processes with strict communication continuity requirements

5、 Key points for use and maintenance

Wiring specifications: Shielded twisted pair cables should be used for communication lines, with a single point grounding on the shielding layer. The line should avoid strong electrical cables to reduce electromagnetic interference

Installation environment: Installed in a well ventilated location, away from high temperature heat sources, with sufficient heat dissipation space reserved around

Status recognition: A green light that stays on indicates normal power supply, a flashing yellow light indicates established communication, and a red light that is on indicates a fault state

Regular maintenance: It is recommended to conduct appearance, wiring inspection, and functional testing every six months, and promptly clean the surface dust of the module
