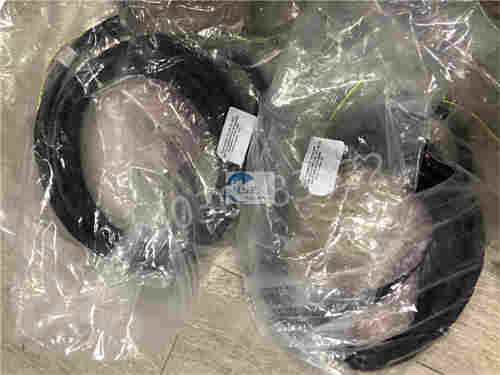

ICS Triplex TC-505-02-2M5 控制连接器

产品概述

ICS Triplex TC-505-02-2M5 是一款专为工业自动化控制系统设计的高性能控制连接器，适用于需要高精度和高可靠性的应用。该连接器支持多种通信协议，确保在恶劣工业环境中的稳定运行。

技术规格

型号：TC-505-02-2M5

兼容性：兼容 ICS 三工控制系统。

输入电压：24V DC。

工作温度：-40℃至70℃。

通信接口：以太网。

认证：CE, UL, RoHS。

尺寸：未明确提供具体尺寸，但模块设计紧凑，便于安装。

重量：未明确提供具体重量，但模块设计轻巧。

功能特点

三重冗余设计：采用三重模件冗余（TMR）结构，确保在单个模块故障时系统仍能正常运行。

高可靠性：支持无单点故障，所有关键组件均为三倍冗余。

自动故障检测与隔离：能够自动检测故障并隔离故障组件，减少平均修复时间并提高系统可用性。

无颠簸故障处理：在故障发生时，系统继续提供控制而不会延迟或性能下降。

热插拔功能：支持模块的热插拔，可以在通电的情况下拆卸和更换模块。

透明容错：应用程序开发与非冗余控制器相同，无需特殊编程。

应用领域

工业自动化：用于需要高精度控制和监控的工业环境。

过程控制：在化工、能源、水处理等行业中，用于监测和控制过程参数。

安全系统：用于安全相关的监控和报警系统。

注意事项

安装环境：确保模块安装在无尘、干燥且通风良好的环境中，避免高温、高湿或腐蚀性气体。

电气连接：正确连接电源和信号线，避免接线错误导致的模块损坏或性能下降。

ICS Triplex TC-505-02-2M5 控制连接器凭借其高性能、多功能和高可靠性，成为工业自动化和控制系统中的重要组件。

ICS Triplex TC-505-02-2M5 Control Connector

product overview

ICS Triplex TC-505-02-2M5 is a high-performance control connector designed specifically for industrial automation control systems, suitable for applications that require high precision and reliability. This connector supports multiple communication protocols to ensure stable operation in harsh industrial environments.

technical specifications

Model: TC-505-02-2M5

Compatibility: Compatible with ICS three-way control system.

Input voltage: 24V DC.

Working temperature: -40 ℃ to 70 ℃.

Communication interface: Ethernet.

Certification: CE, UL, RoHS.

Size: The specific size is not provided, but the module design is compact and easy to install.

Weight: The specific weight is not provided, but the module design is lightweight.

Functional Features

Triple redundancy design: Adopting a Triple Modular Redundancy (TMR) structure to ensure that the system can still operate normally in the event of a single module failure.

High reliability: Supports no single point of failure, and all critical components are triple redundant.

Automatic fault detection and isolation: capable of automatically detecting faults and isolating faulty components, reducing average repair time and improving system availability.

Non bumpy fault handling: When a fault occurs, the system continues to provide control without delay or performance degradation.

Hot swappable function: Supports hot plugging of modules, which can be disassembled and replaced when powered on.

Transparent fault-tolerant: Application development is the same as non redundant controllers, without the need for special programming.

application area

Industrial automation: used in industrial environments that require high-precision control and monitoring.

Process control: Used in industries such as chemical, energy, and water treatment to monitor and control process parameters.

Security system: used for security related monitoring and alarm systems.

precautions

Installation environment: Ensure that the module is installed in a dust-free, dry, and well ventilated environment, avoiding high temperatures, high humidity, or corrosive gases.

Electrical connection: Connect power and signal lines correctly to avoid module damage or performance degradation caused by wiring errors.

The ICS Triplex TC-505-02-2M5 control connector has become an important component in industrial automation and control systems due to its high performance, versatility, and reliability.
