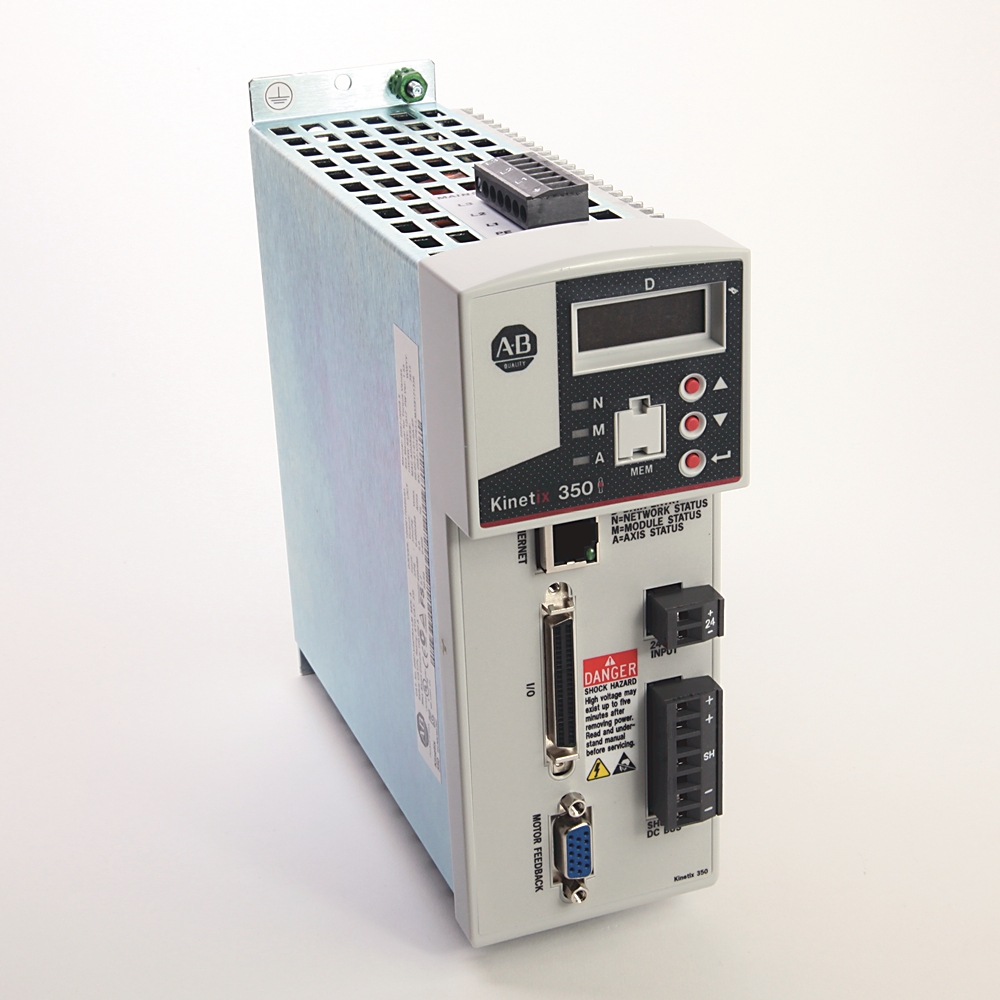

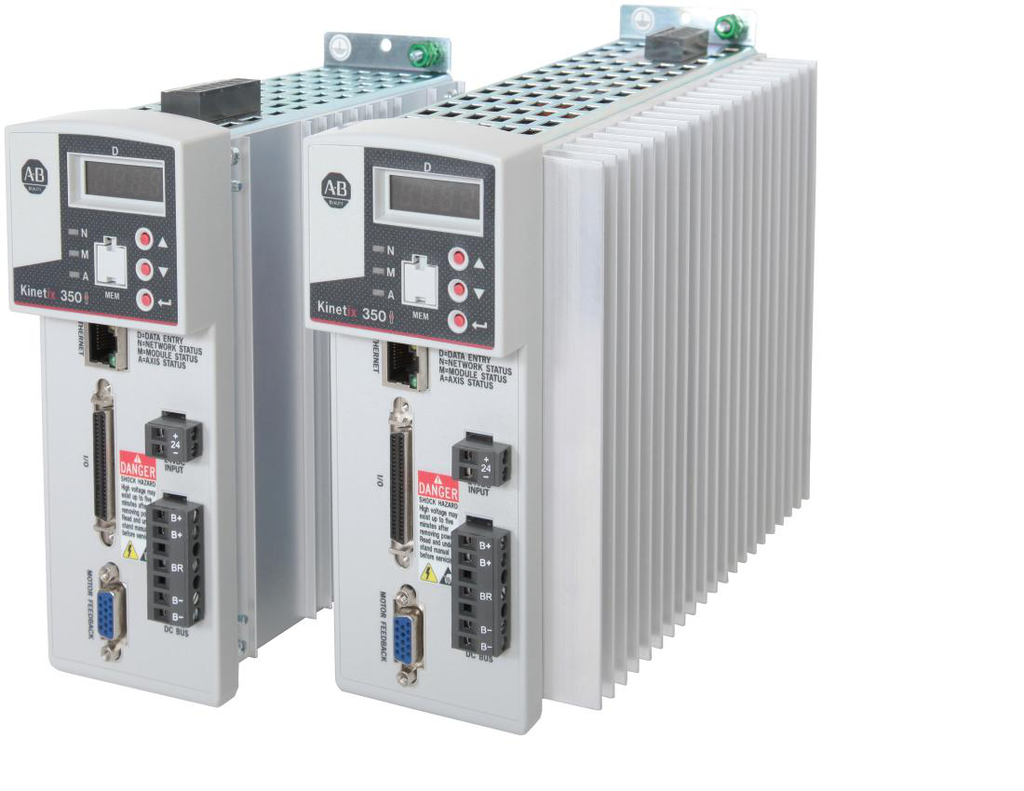

A-B克罗韦尔（AB罗克韦尔）2097-V33PR1-LM 伺服驱动器

属于AB罗克韦尔（现罗克韦尔自动化）旗下2097系列伺服驱动器，专为工业自动化设计，支持EtherNet/IP网络集成，

可与CompactLogix/ControlLogix控制器无缝协作。

适用于多轴协调运动控制，满足低轴数系统优化需求。

参考手册调整加减速参数，避免振荡。

A-B Rockwell 2097-V33PR1-LM servo drive

1、 Product positioning and core parameters

Brand and Series

Belonging to the 2097 series servo drives under AB Rockwell (now Rockwell Automation), specifically designed for industrial automation, it supports EtherNet/IP network integration and can seamlessly collaborate with CompactLogix/ControlLogix controllers.

Key technical parameters

Power and Voltage: Rated power 750W, rated voltage 220V (some data shows 380V, specific model configuration needs to be confirmed), supports single-phase/three-phase input.

Performance indicators: speed response frequency 10Hz, rated current 18A, rated torque conventional (specific values need to refer to the manual).

Environmental adaptability: Operating temperature of 0 ° C~40 ° C (no freezing), humidity ≤ 80% RH (no condensation), protection level IP65, suitable for harsh industrial scenarios.

Mechanical characteristics: The shaft height is conventional, the installation method is wired, the external dimensions are 10 × 15 × 5cm, the weight is 0.85kg, and the mechanical and electrical life are both up to 10 years.

Certification and Standards

Through CCC certification, it meets the requirements of China's mandatory product certification and ensures safety and compliance.

2、 Functional features and advantages

Network integration capability

Supports EtherNet/IP protocol, can build a single network architecture, simplify system wiring, and reduce maintenance costs.

Compatible with Studio 5000 automation engineering environment, supporting standard RSLogix 5000 motion control instruction set for easy programming and debugging.

High efficiency and reliability

Embedded safety disconnect torque function (requires version 21 or higher support) to enhance device safety.

Compact design reduces panel space occupation and is suitable for machine combinations with limited space.

Flexible application adaptation

It can drive MP Series/TL Series servo motors and actuators, supporting various motor types such as low inertia, food grade, stainless steel, etc.

Suitable for multi axis coordinated motion control, meeting the optimization requirements of low axis systems.

3、 Application scenarios and industry cases

Typical application areas

Industrial automation: CNC machine tools, robot joint drives, packaging machinery, etc.

New energy: photovoltaic equipment tracking system, wind power pitch control.

Logistics automation: high-precision positioning of conveyor belts and sorting systems.

Industry Solutions

A certain automotive parts manufacturer uses 2097 series drivers to achieve multi axis synchronous control of welding robots, improving welding accuracy by 30% and reducing failure rates by 20%.

In the food packaging line, MP Series stainless steel motors are used to meet hygiene requirements, and real-time production data monitoring is achieved through EtherNet/IP.

4、 Selection and usage suggestions

Selection precautions

Confirm that the voltage level (220V/380V) matches the power to avoid overload operation.

Choose a cooling solution based on the ambient temperature (such as forced air cooling or natural cooling).

Verify network compatibility to ensure protocol consistency with existing controllers such as CompactLogix 5370.

Maintenance and troubleshooting

Common faults: motor not moving, starting and stopping, overcurrent alarm, etc., often related to parameter settings, wiring errors, or abnormal load.

Solution:

Check the low-pass filter settings on the command end to attenuate high-frequency noise.

Use a voltmeter to test circuit protection and ensure that the voltage is within the specified range (210V~480V).

Refer to the manual to adjust the acceleration and deceleration parameters to avoid oscillation.

AB Rockwell Kinetix 6000: Multi axis drive that supports higher speed response (34Hz) and complex motion control, suitable for high-end robots and CNC equipment.
