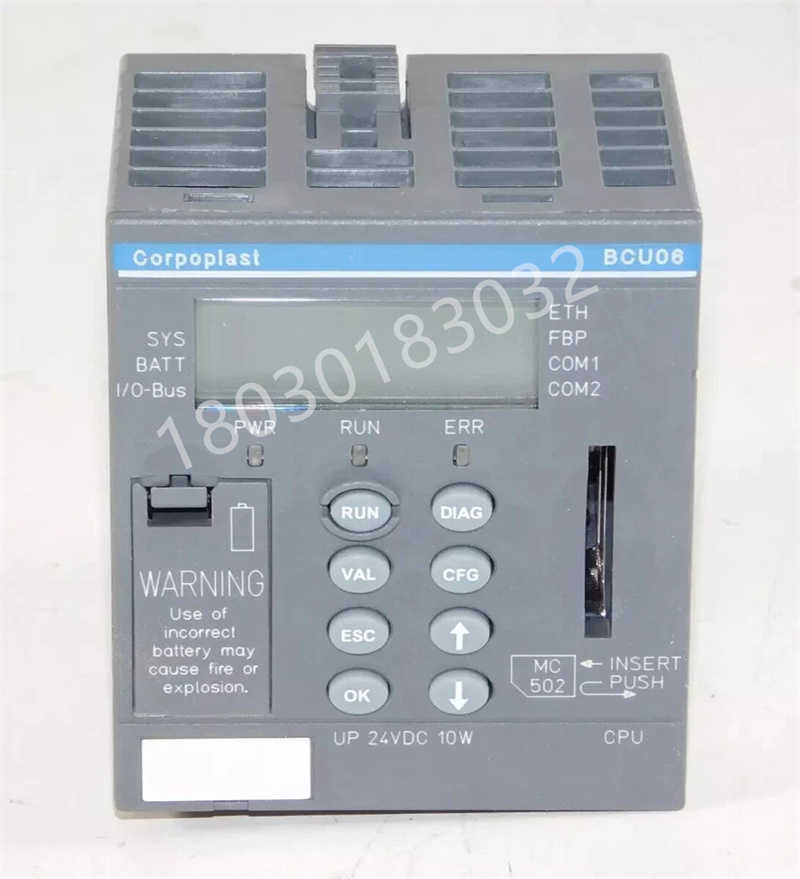

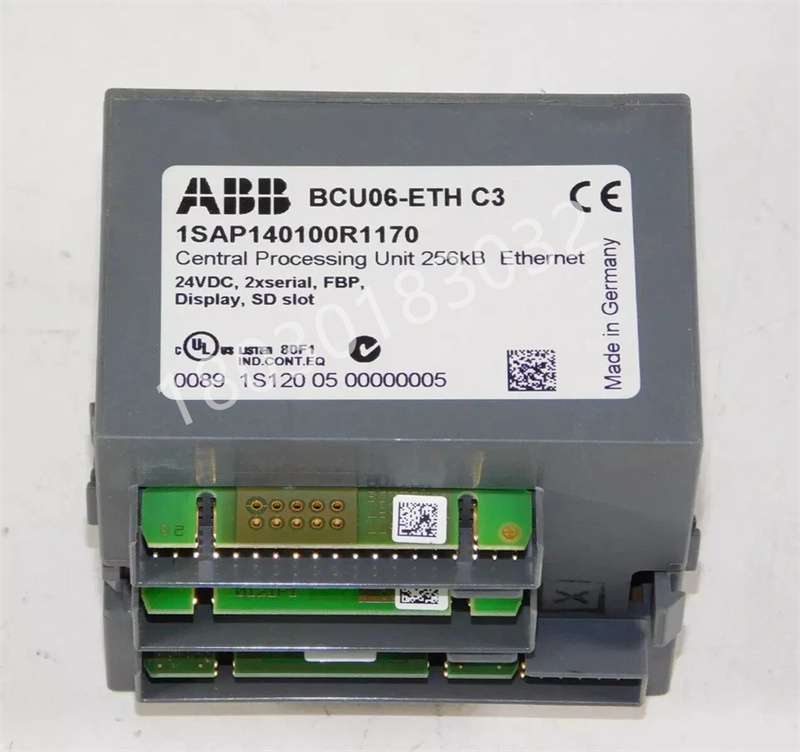

ABB 1SAP140100R1170 逻辑控制器

产品概述

ABB 1SAP140100R1170 是一款高性能的逻辑控制器，属于 ABB AC500 系列。它作为整个控制系统的“大脑”，

负责执行控制逻辑、处理数据、管理输入/输出 (I/O) 模块以及与其他系统和设备进行通信。

技术规格

• 品牌：ABB
• 型号：1SAP140100R1170
• 用途：适用于工业自动化和过程控制系统。
• 处理器：高性能处理器，支持快速数据处理。
• 内存：256KB。
• 通信接口：
  • 以太网接口。
  • 2 个 RS232/485 串行接口。
• 其他特性：
  • FBP（功能块编程）。
  • 配备 LCD 显示屏。
  • 内置 SD 卡插槽，用于程序存储和备份。
• 工作电压：24V DC。
• 防护等级：IP20。
• 工作温度：+5°C 至 +55°C。
• 存储温度：-40°C 至 +70°C。
• 相对湿度：5% 至 95%（非冷凝）。
• 尺寸：119 mm × 186 mm × 135 mm。
• 重量：1.78 kg。

主要特点和优势

• 高性能处理能力：配备高性能处理器，能够快速处理大量数据，确保控制系统的实时响应能力。
• 多种通信协议支持：支持以太网、RS232/485 等多种通信协议，方便与不同设备集成。
• 用户友好界面：配备 LCD 显示屏和 SD 卡插槽，简化了配置和维护过程。
• 紧凑设计：设计紧凑，便于安装和维护。
• 高可靠性：采用工业级设计，能够在恶劣环境下稳定运行。
• 远程监控和诊断：支持远程监控和诊断功能，帮助工程师及时发现并解决问题。
• 丰富的扩展接口：提供丰富的扩展接口，方便用户根据实际需求进行定制化开发。

应用领域

• 工业自动化：用于工厂自动化、过程控制等领域。
• 电力行业：应用于发电厂、变电站等电力系统的设备监控。
• 石油和天然气：用于石油和天然气行业的设备监控和过程控制。
• 化工行业：用于化工厂的过程控制。
• 水处理：用于污水处理厂和净水厂的自动化管理。

ABB 1SAP140100R1170 Logic Controller

product overview

ABB 1SAP140100R1170 is a high-performance logic controller belonging to the ABB AC500 series. As the 'brain' of the entire control system,

Responsible for executing control logic, processing data, managing input/output (I/O) modules, and communicating with other systems and devices.

technical specifications

Brand: ABB

Model: 1SAP140100R1170

Purpose: Suitable for industrial automation and process control systems.

Processor: High performance processor that supports fast data processing.

Memory: 256KB.

Communication interface:

Ethernet interface.

Two RS232/485 serial interfaces.

Other features:

FBP (Function Block Programming).

Equipped with an LCD display screen.

Built in SD card slot for program storage and backup.

Working voltage: 24V DC.

Protection level: IP20.

Working temperature:+5 ° C to+55 ° C.

Storage temperature: -40 ° C to+70 ° C.

Relative humidity: 5% to 95% (non condensing).

Dimensions: 119 mm × 186 mm × 135 mm.

Weight: 0.78 kg.

Main features and advantages

High performance processing capability: Equipped with high-performance processors, it can quickly process large amounts of data, ensuring the real-time response capability of the control system.

Multiple communication protocol support: Supports Ethernet, RS232/485 and other communication protocols, making it easy to integrate with different devices.

User friendly interface: equipped with LCD display and SD card slot, simplifying the configuration and maintenance process.

Compact design: The design is compact, easy to install and maintain.

High reliability: Adopting industrial grade design, it can operate stably in harsh environments.

Remote monitoring and diagnosis: Supports remote monitoring and diagnosis functions to help engineers discover and solve problems in a timely manner.

Rich extension interfaces: Provide a variety of extension interfaces to facilitate customized development for users based on their actual needs.

application area

ABB 1SAP140100R1170 is widely used in the following fields:

Industrial automation: used in fields such as factory automation and process control.

Power industry: equipment monitoring applied to power plants, substations and other power systems.

Oil and Gas: Used for equipment monitoring and process control in the oil and gas industry.

Chemical industry: used for process control in chemical plants.

Water treatment: used for automated management of sewage treatment plants and water purification plants.
