ABB CM589-PNIO-4 运动控制器是 AC500 PLC 系列中基于 PROFINET 协议的通信模块，具备实时通信、高精度控制、多轴协同和丰富接口等特性，适用于工业自动化、机器人技术、自动化物流和医疗设备等领域。

CT 扫描仪：高精度控制扫描部件运动，提升成像质量。

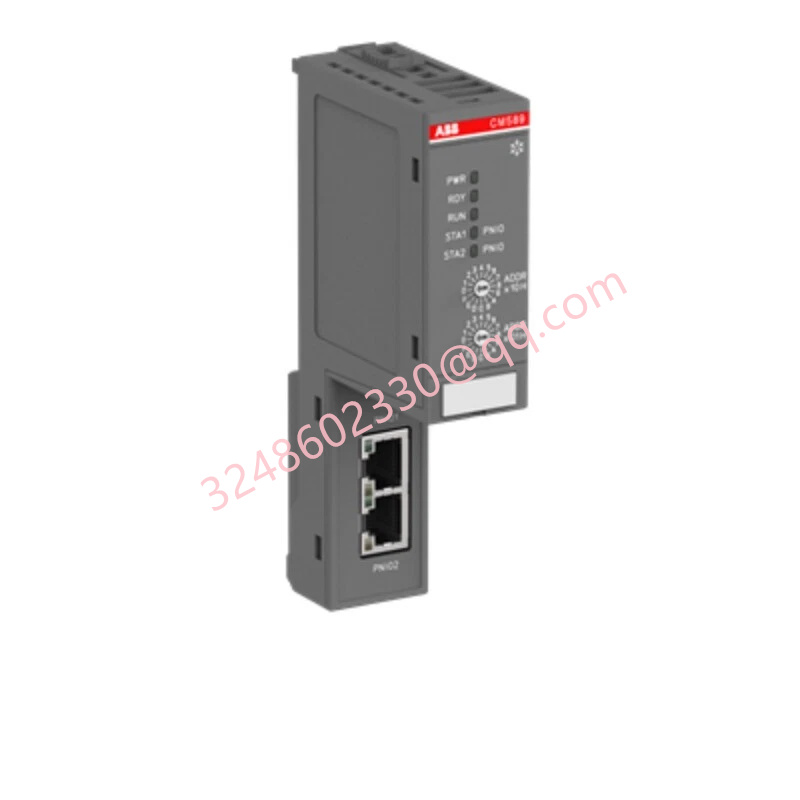

The ABB CM589-PNIO-4 motion controller is a communication module based on the PROFINET protocol in the AC500 PLC series. It has features such as real-time communication, high-precision control, multi axis collaboration, and rich interfaces, and is suitable for industrial automation, robotics technology, automated logistics, and medical equipment.

1、 Product Features

Communication Protocol and Interface

PROFINET IO RT: Supports real-time communication to ensure timely and accurate data transmission.

Dual RJ45 ports: Integrated 2-port switch, supports linear topology, simplifies network cabling.

Transmission rate: 100 Mbps (full duplex), meeting high-speed data transmission requirements.

Electrical parameters

Bus length: maximum 100 meters (segment length).

Power consumption: Typical value of 85 mA (24 VDC power supply).

Indicator lights: 5 LED status indicator lights, real-time display of module operation status.

control function

Multi axis collaboration: supports multi axis motion control, enabling complex trajectory planning and interpolation algorithms (such as line and arc interpolation).

Closed loop control: Real time adjustment of motion parameters through sensor feedback, eliminating errors and ensuring long-term stability.

PID control: proportional integral derivative control algorithm, optimizing speed and acceleration regulation.

protocol support

Real time protocols: RTC (Real time Loop Protocol, Class 1), RTA (Real time Non Loop Protocol).

Network management: DCP (Discovery and Configuration Protocol), SNMP (Simple Network Management Protocol), LLDP (Link Layer Discovery Protocol).

Industrial protocols: MRP (Media Redundancy Protocol), CL-RPC (connectionless remote procedure call).

2、 Application scenarios

Industrial Automation

CNC machine tools: precise control of tool position and movement trajectory to improve machining accuracy.

Automated assembly line: Coordinate multi axis movements to achieve efficient and precise assembly operations.

robotics

Robot arm control: planning motion paths, adjusting posture, supporting complex tasks such as handling, assembly, welding, etc.

Mobile platform: Synchronize control of multi axis motion to ensure robot flexibility and intelligence.

Automated logistics

Conveyor belt scheduling: precise control of cargo handling and classification, optimizing logistics efficiency.

AGV navigation: adjusts motion status through real-time feedback, reduces errors, and saves labor costs.

medical equipment

Surgical robot: Ensure smooth and accurate movement, reduce human operation errors.

CT scanner: high-precision control of scanning component movement to improve imaging quality.

3、 Technical advantages

high-precision control

Micron level positioning accuracy meets the requirements of precision machining and medical equipment.

Real time response capability

Quickly process sensor feedback signals, adjust motion parameters in real-time, and ensure system stability.

Flexibility and Scalability

Supports multiple communication protocols and interfaces, facilitating integration with other devices such as sensors and computers.

Strong programmability, users can customize control strategies and functional modules according to their needs.

Reliability and safety

Fault detection and self diagnosis function, real-time monitoring of system status and providing alarms.

Redundant protocol support (such as MRP) enhances network reliability.
