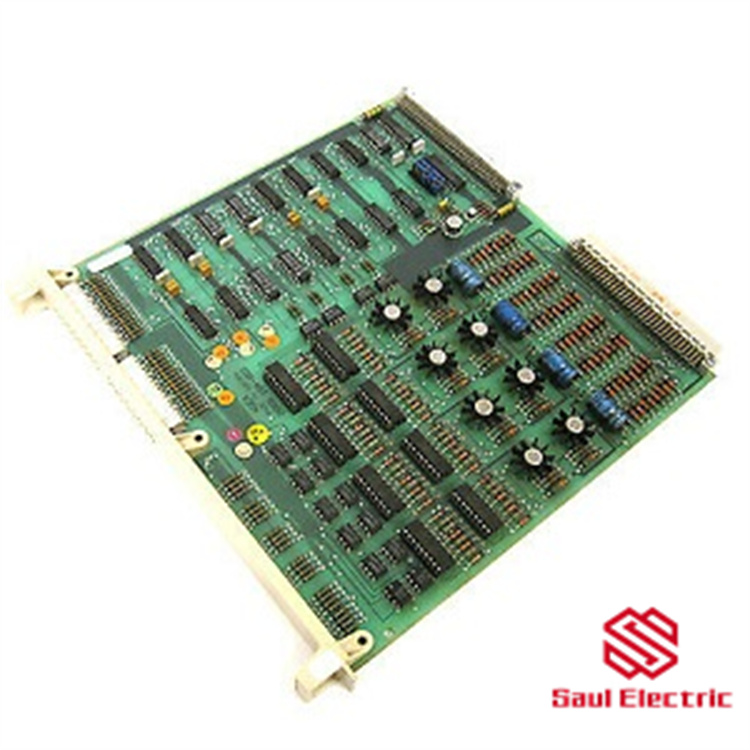

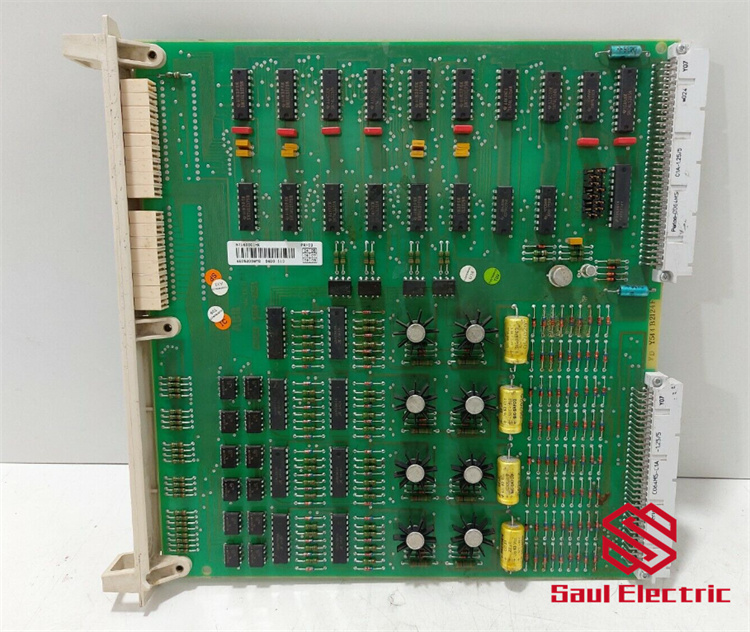

ABB DSDO110 57160001-K/3 数字量输出卡件

这是 ABB Advant OCS 过程控制系统（DCS）中使用的 32通道数字量输出模块，属于 S100 I/O 系列。

系列 ABB Advant OCS / S100 I/O

配套输入模块：DSDI110A（57160001-AAA），32路数字输入，可配对使用。

ABB DSDO110 57160001-K/3 digital output card

This is a 32 channel digital output module used in the ABB Advant OCS process control system (DCS), belonging to the S100 I/O series.

core parameters

Project specifications

Model DSDO110/57160001-K/3

Product Code 3BSE018296R1

32 channels of digital output

Load voltage 24V~48V DC

Maximum load current 150mA/point (24V system)

Size 324 × 225 × 22.5 mm

Weight 0.375 kg

Origin Switzerland

Series ABB Advant OCS/S100 I/O

Key Instructions

Output type: Transistor output (DC), fast response speed, suitable for high-frequency switch control scenarios.

Alternative/Associated Model:

DSDO115A (3BSE018298R1) → Dedicated to 24V systems

DSDO115N (3BNPO15173R1) → Used for safety related 400 series

Supporting input module: DSDI110A (5716001-AAA), 32 digital inputs, can be paired for use.

If your system is a 24V load, prioritize confirming whether you need to switch to DSDO115A (optimized for 24V); If safety instrumented system (SIS) is involved, DSDO115N should be selected. Before purchasing, it is necessary to verify the compatibility of the controller model (such as AC450, AC800M, etc.).
