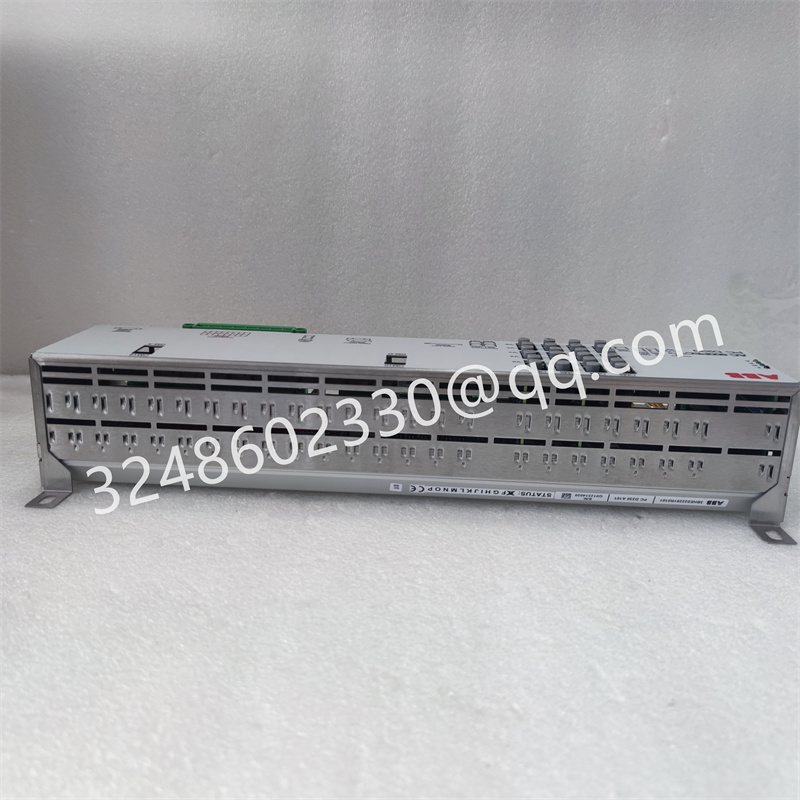

ABB PCD230A 3BHE022291R0101 主处理器 / CIO 通信控制器

1、 Basic identity information

Model name: PCD230A

Material Order Number: 3BHE022291R0101

Brand origin: ABB, produced by the original factory in Sweden

System: AC800PEC High speed Transmission Control System (Power, Frequency Conversion, Turbine Generator Excitation/Speed Control Core Control Unit)

Positioning: System main controller+high-speed I/O communication processor (CIO module), responsible for real-time closed-loop control, multi-channel signal acquisition, bus data forwarding, commonly known as the main processor unit by users

Shutdown status: The original factory has stopped mass production (EOL shutdown), there are no new futures from the original factory, and only new spare parts and refurbished parts are in circulation in the market; The inventory of original maintenance spare parts has been decreasing year by year.

2、 Core hardware performance parameters

Processor: 32-bit RISC, main frequency 500MHz, high-speed real-time computing

Memory: 2MB RAM/8MB Flash program storage

Power supply: DC 9-36V wide voltage, standard DC24V, dual power redundant input, with reverse protection and 1500V isolation

Whole machine power consumption: ≤ 4W

Communication interface: Dual Ethernet, RS485, CAN bus PROFIBUS、Modbus RTU

Scalability: Maximum expansion of 2048 I/O points, compatible with complete sets of transmission, excitation, and frequency conversion equipment

Protection level: IP20 (DIN rail installation inside the cabinet)

Working temperature: -40 ℃~+75 ℃; Storage -40 ℃~+85 ℃

Humidity: 5%~95% RH, no condensation

Safety certification: Meets SIL2 IEC61508, suitable for power critical units

3、 Size and weight (original factory standard)

machine overall size

230mm in length, 132mm in width, and 52mm in thickness

Net weight (unpackaged bare machine)

Standard whole machine: 0.8kg (800g)

Original cardboard box packaging gross weight

Including foam, instructions, terminal accessories: about 1.2~1.3kg

4、 Interface Partition Description

Left side: status indicator light, RS232/485 debugging serial port, CAN bus terminal

Central: Dual Ethernet ports, system bus interface

Right side: Green plug-in terminal block, digital DI/DO, analog AI/AO, 24V redundant power input

Panel matrix indicator lights: fast diagnosis of channel faults, communication, operation, and power status

5、 Typical application scenarios

Power plant turbine generator UNITOL excitation system, high-power variable frequency drive

Metallurgical rolling mill, wind power converter, water and electricity speed controller

Complete control system for large-scale chemical compressors and high-power motors

6、 Supply and replacement instructions

Spot goods source

Brand new original inventory: 12-month warranty; Refurbished parts with a warranty of 3-6 months, high risk

Compatible with alternative models

Upgraded version of the same series: PCD232A, with fully compatible hardware pins and installation dimensions, stronger performance, and some items can be directly replaced; It is recommended to use the new generation AC800PEC controller for the new project, and no longer purchase the discontinued module of PCD230A.

Procurement Tips

The prices of discontinued spare parts continue to rise, and it is recommended to stock up in bulk for the renovation of old units to avoid downtime without spare parts in the later stage.
