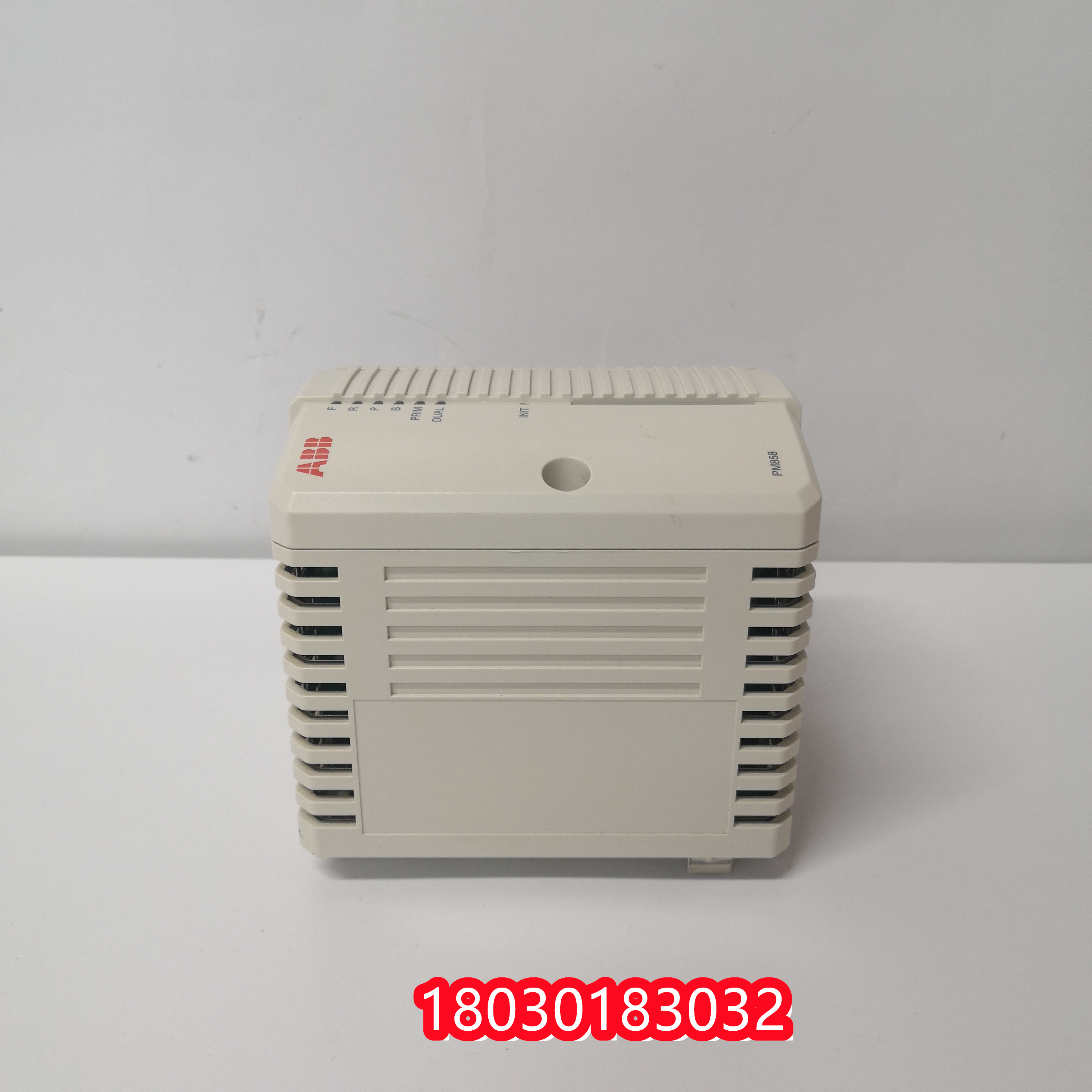

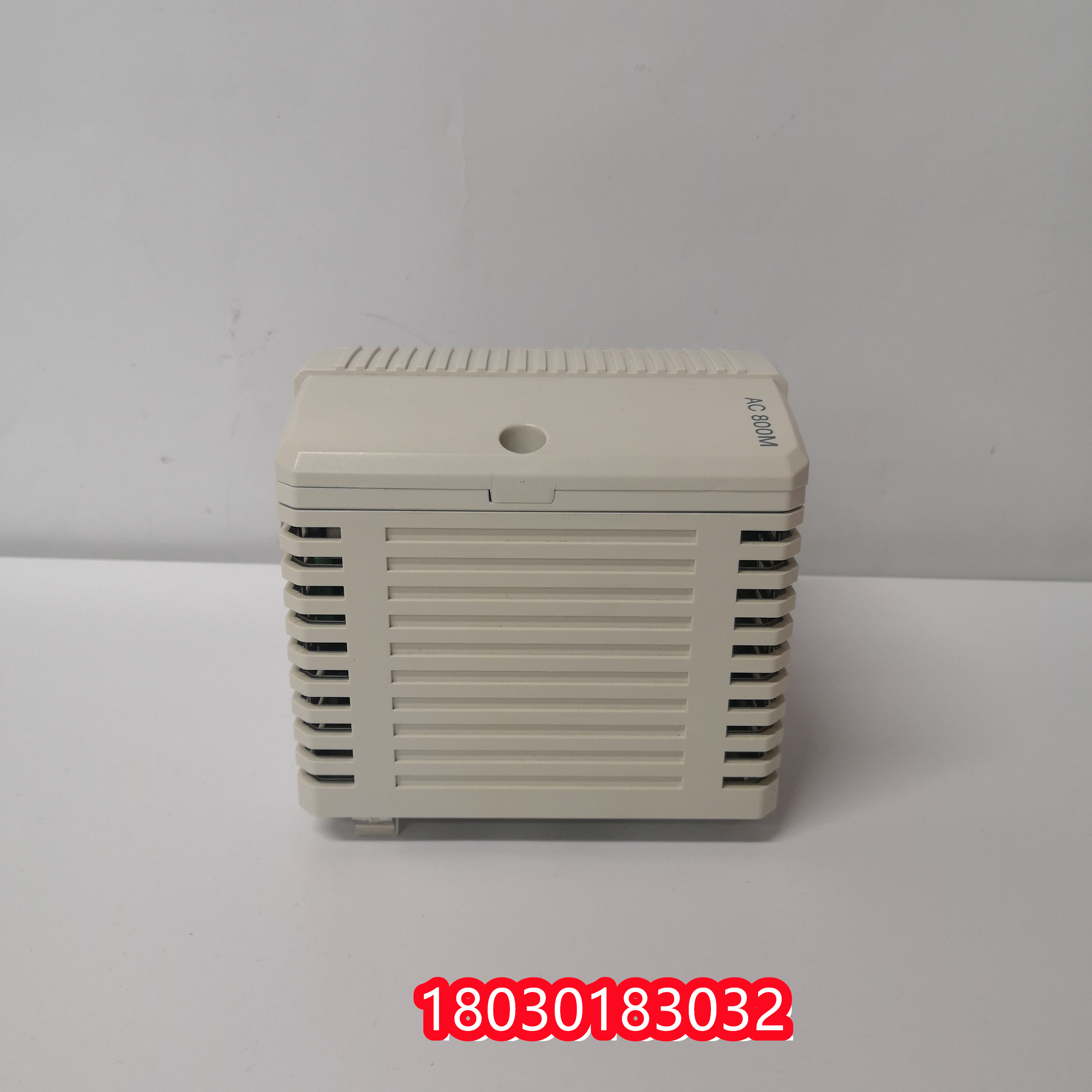

技术说明：PM858 3BSE093350R1 ABB  CPU 可编程控制器

CPU板包含微处理器和RAM内存、实时时钟、LED指示灯、INIT按钮和CompactFlash接口。

PM858控制器的底板上有2个RJ45以太网接口(CN1、CN2)和2个RJ45串口(COM3、COM4)，用于连接到控制网络。其中一个串口(COM3)是带有调制解调器控制信号的RS-232C端口，而另一个端口(COM4)是隔离的，用于连接配置工具。控制器支持CPU冗余，提供更高的可用性(CPU、cex总线、通信接口和S800 1/O)。

简单的DIN导轨连接/分离程序，使用独特的滑动和锁定机制。所有的底板都有一个唯一的以太网地址，它为每个CPU提供了一个硬件标识。该地址可以在TP830底板上的以太网地址标签上找到。

(仅兼容System 800xA 6.0.2,Compact Control Builder 6.0.0-1及以上版本。请参阅产品更新了解更多信息。)特点和优点

ISA安全认证-了解更多

·可靠性和简单的故障诊断程序模块化，允许逐步扩展

-IP20级防护，不需要外壳

控制器可配置800xA控制生成器控制器通过EMC全认证

·Cex总线采用一对BC810/ BC820·基于最佳通信连接标准的硬件(以太网、PROFIBUS、DP等)-内置冗余以太网通信端口

一般信息

货号3bse082895r1 (PM858KO1)没有冗余

高诚信no

时钟频率33 Mhz

性能，1000布尔运算0.36毫秒性能0.36 ms

内存16mb

应用程序可用RAM 7.147 MB闪存存储是的

详细的数据环境与认证

●所有产品图片均为真实，如果您需要更多照片，请联系我们。

●所有售出的产品质量保证一年，如果有质量问题我们可以给您更换或退回。

●我们是中国最大的工控产品供应商，如果您需要其他类型的产品，请向我们咨询，我们会立即给您答复。

●如果您购买的不止一个，我们会给您折扣，如果您收到价格，请与我们联系，我们将尽力让您满意，我们的客户来自世界各地，欢迎来到中国。

The CPU board contains the microprocessor and RAM memory, real-time clock, LED indicator, INIT button, and CompactFlash interface.

The mainboard of the PM858 controller has two RJ45 Ethernet ports (CN1 and CN2) and two RJ45 serial ports (COM3 and COM4) for connecting to the control network. One of the serial ports (COM3) is the RS-232C port with the modem control signal, while the other port (COM4) is isolated and used to connect to the configuration tool. The controller supports CPU redundancy and provides higher availability (CPU, cex bus, communication interface, and S800 1/O).

Simple DIN rail connection/separation procedure with unique sliding and locking mechanisms. All baseboards have a unique Ethernet address, which provides a hardware identity for each CPU. This address can be found on the Ethernet address label on the TP830 baseboard.

(Only compatible with System 800xA 6.0.2,Compact Control Builder 6.0.0-1 and later versions. See Product updates for more information.) Features and advantages

ISA Security Certification - Learn more

· Reliability and simple fault diagnosis procedures are modular, allowing for gradual expansion

-IP20 protection, no enclosure required

The controller can be configured with 800xA Control Generator The controller is fully EMC certified

·Cex bus with a pair of BC810/ BC820· Hardware based on the best communication connection standards (Ethernet, PROFIBUS, DP, etc.)- built-in redundant Ethernet communication ports

General information

Item number 3bse082895r1 (PM858KO1) has no redundancy

High integrity no

The clock frequency is 33 Mhz

Performance, 1000 Boolean operation 0.36ms performance 0.36ms

Memory 16mb

Application available RAM 7.147MB flash storage yes

Detailed data environment and authentication
