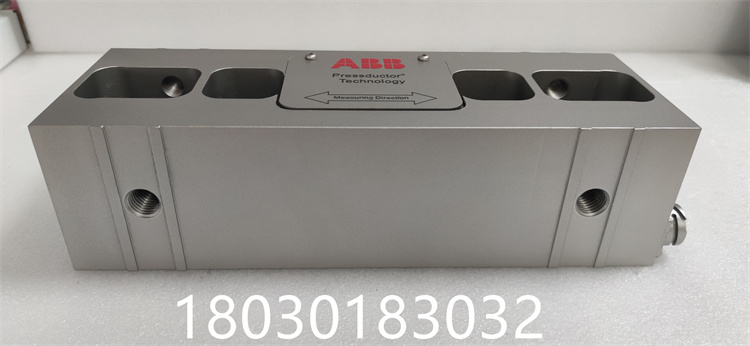

现货 PFTL101B 10KN 3BSE004197R1 横向测量压磁式压头传感器 的详细信息如下：

基本信息

品牌与型号：

品牌：ABB

型号：PFTL101B 10KN 3BSE004197R1

技术规格

测量类型：横向测量

测量范围：10千牛（KN）

产品类型：压磁式压头传感器

产品编号：3BSE004197R1

工作原理

PFTL101B 10KN 3BSE004197R1压磁式传感器利用磁性材料在机械力作用下导磁率发生变化的原理工作。当在传感器的测量方向加以机械力时，初级线圈中的磁场传播方向发生变化，导致次级线圈中的磁场也发生变化，进而在该线圈中产生感应电势。控制单元将这个感应电势转换成一个与被测力对应成比例的直流电压信号。

结构特点

传感器由整块不锈钢制成，体上冲有四个孔，通过这四个孔缠绕有两组线圈，它们互成一定的角度。

应用领域

该传感器可能广泛应用于需要精确测量横向力的工业环境中，如造纸、纺织、印刷等行业。

Spot PFTL101B 10KN 3BSE004197R1 Lateral measurement Piezomagnetic indenter sensor details are as follows:

Basic information

Brand and Model:

Brand: ABB

Model: PFTL101B 10KN 3BSE004197R1

Technical specification

Measurement type: transverse measurement

Measuring range: 10 KN

Product type: Piezomagnetic indenter sensor

Product Number: 3BSE004197R1

Working principle

The PFTL101B 10KN 3BSE004197R1 piezomagnetic sensor works on the principle that the magnetic permeability changes under the action of mechanical forces. When a mechanical force is applied to the measurement direction of the sensor, the direction of magnetic field propagation in the primary coil changes, causing the magnetic field in the secondary coil to also change, which in turn generates an induced potential in the coil. The control unit converts this induced potential into a DC voltage signal proportional to the force being measured.

Structural characteristics

The sensor is made of a single piece of stainless steel with four holes punched in the body, through which two sets of coils are wound at a certain Angle to each other.

Application field

The sensor has the potential to be widely used in industrial environments that require accurate measurement of lateral forces, such as paper, textile, printing and other industries.
