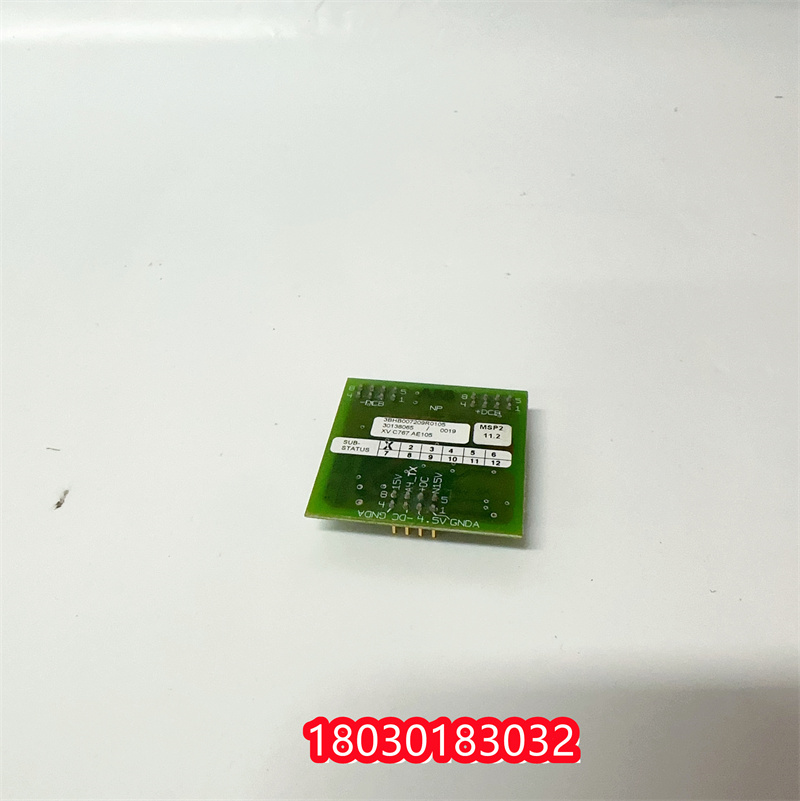

ABB的XVC767102 3BHB007209R0102是一款专用于工业自动化控制领域的主控板驱动器。以下是该产品的一些关键特性和参数：

品牌与型号：品牌为ABB，型号为XVC767AE102-3BHB007209R0102 。

输入与输出电压：输入电压为220V AC，输出电压为24V DC 。

输出电流：最大输出电流为10A 。

工作温度范围：正常工作温度在-10°C至50°C之间 。

控制功能：主控板是驱动器的控制中枢，负责控制电源、调制脉冲的产生、控制方式及保护逻辑等 。

技术应用：采用了SG3525A作为PWM脉冲形成，输出脉冲频率范围20KHz—60KHz，脉冲间隔互为180度，死区时间可以自行调整，适用于IGBT全桥逆变串联谐振感应加热装置 。

功率范围：适用于10KW至120KW的功率范围，控制板接线少，控制集中，无需调试 。

保护功能：具备过流、过压等多种状态指示，并提供开关型霍尔保护接口和线性霍尔保护接口 。

应用领域：广泛应用于工业自动化、能源管理、建筑机械、物料搬运等领域，实现对交流电机的高效驱动和控制 。

该主控板驱动器是ABB公司推出的高性能产品，具有高效节能、动态响应快、控制精度高等特点，能够在多种工业应用中实现对电机的精确控制，提高生产效率和稳定性。

ABB XVC767102 3BHB007209R0102 is a master control board driver specially designed for industrial automation control. Here are some of the key features and parameters of the product:

Brand and model: The brand is ABB, model XVC767AE102-3BHB007209R0102.

Input and output voltage: Input voltage is 220V AC, output voltage is 24V DC.

Output current: The maximum output current is 10A.

Operating temperature range: Normal operating temperature between -10°C and 50°C.

Control function: The main control board is the control center of the driver, responsible for controlling the power supply, the generation of the modulation pulse, the control mode and the protection logic.

Technical application: SG3525A is used as PWM pulse formation, the output pulse frequency range is 20Khz-60khz, the pulse interval is 180 degrees each other, and the dead time can be adjusted by itself, which is suitable for IGBT full-bridge inverter series resonant induction heating device.

Power range: Applicable to the power range of 10KW to 120KW, less wiring of the control board, centralized control, no need to debug.

Protection function: With over current, over voltage and other state indicators, and provide switching Hall protection interface and linear Hall protection interface.

Application: Widely used in industrial automation, energy management, construction machinery, material handling and other fields, to achieve efficient drive and control of AC motor.

The main control board driver is a high-performance product launched by ABB, which has the characteristics of high efficiency and energy saving, fast dynamic response and high control accuracy. It can realize the precise control of the motor in a variety of industrial applications, and improve the production efficiency and stability.
