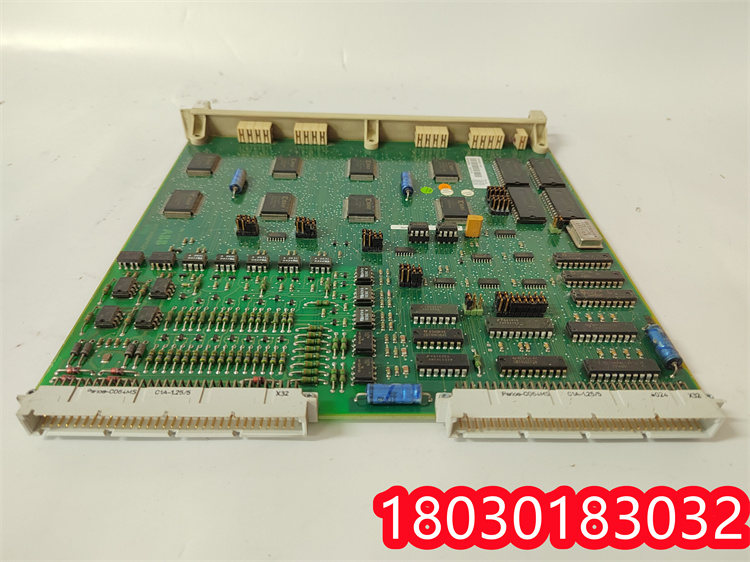

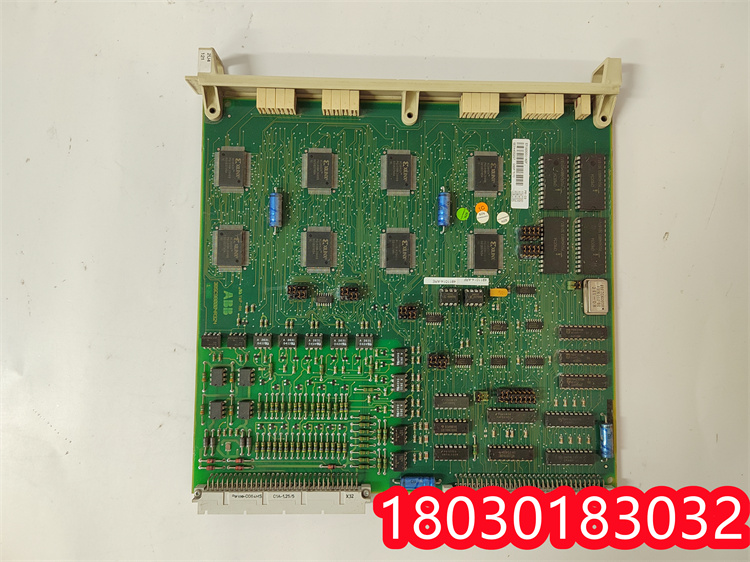

DSADP170 57160001-ADF 是ABB公司生产的一款脉冲计数板，它具备多种功能和技术特性，适用于多种工业自动化应用。以下是该脉冲计数板的一些关键特性：

高速计数能力：该模块能够处理最大脉冲频率达到2.5 MHz的高速脉冲信号，具有高精度计数能力 。

多种输入接口：支持多种不同的输入接口，例如推挽、漏极开路、源极开路等，方便与不同类型的传感器连接 。

可编程设置：用户可以编程设置计数范围、计数方向、脉冲极性等参数，以满足不同应用需求 。

高可靠性和稳定性：设计用于在恶劣的工业环境中稳定工作，具有高可靠性和稳定性 。

强抗干扰能力：采用全自动贴片封装工艺，具备强抗干扰能力，确保准确测量和计数 。

多种输出接口：提供并行输出、串行输出、PWM输出等多种输出接口，方便与控制系统或上位机软件连接 。

应用领域广泛：广泛应用于电力、石化、冶金、轻工、制药、航空以及科学研究、通信系统、电子工程等领域 。

此外，根据深圳长欣自动化设备有限公司提供的信息，DSDP170 57160001-ADF脉冲计数板还具备以下参数：

通道数：32

计数频率：最大50 kHz

计数精度：±1个计数

输入电压范围：5 VDC至24 VDC

输入电流：最大10 mA

功耗：<10 W

工作温度范围：-20°C至+60°C

防护等级：IP67 。

The DSADP170 57160001-ADF is a pulse counting board from ABB that offers a wide range of functions and technical features for a wide range of industrial automation applications. Here are some of the key features of the pulse counting board:

High-speed counting capability: The module can process high-speed pulse signals with a maximum pulse frequency of 2.5 MHz, and has high-precision counting capability.

Multiple input interfaces: Support a variety of different input interfaces, such as push-pull, drain open, source open, etc., to facilitate connection with different types of sensors.

Programmable Settings: Users can programmatically set counting range, counting direction, pulse polarity and other parameters to meet different application requirements.

High reliability and stability: Designed for stable operation in harsh industrial environments with high reliability and stability.

Strong anti-interference ability: automatic patch packaging process, with strong anti-interference ability, to ensure accurate measurement and counting.

A variety of output interfaces: provide parallel output, serial output, PWM output and other output interfaces, easy to connect with the control system or the upper computer software.

Wide range of applications: widely used in electric power, petrochemical, metallurgy, light industry, pharmaceutical, aviation and scientific research, communication systems, electronic engineering and other fields.

In addition, according to the information provided by Shenzhen Changxin Automation Equipment Co., LTD., the DSDP170 57160001-ADF pulse counting board also has the following parameters:

Number of channels: 32

Counting frequency: 50 kHz Max

Counting accuracy: ±1 count

Input voltage range: 5 VDC to 24 VDC

Input current: Max. 10 mA

Power consumption: <10 W

Operating temperature range: -20°C to +60°C

Protection level: IP67.
