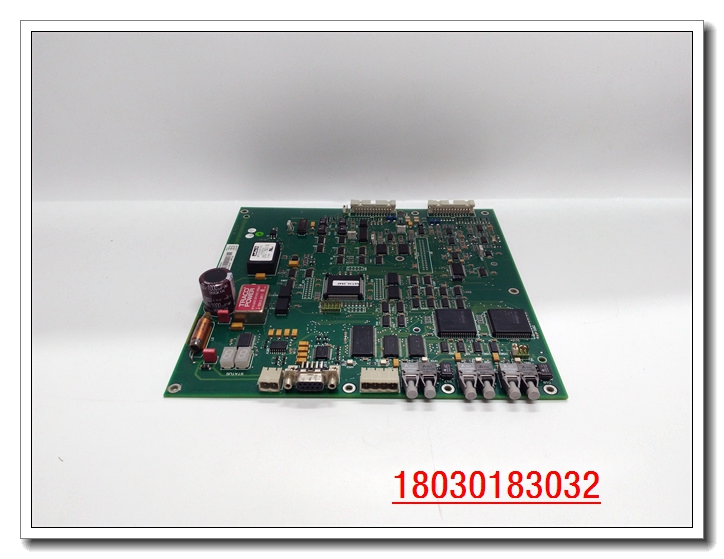

DAPC100 3ASC25H203是ABB系统中的一个可编程控制板模块，主要用于工业控制领域。以下是对该模块的详细解析：

一、模块概述

• 类型：高性能模拟输入模块
• 应用领域：工业自动化领域，适用于需要精细和可靠控制的场景

二、主要特性

1. 高性能控制：
• 搭载高速数据处理能力和精确的控制算法，能够实现高效的过程控制和自动化操作。
2. 多通道输入输出：
• 具备多个输入和输出通道，可以连接和控制多种类型的设备和传感器，实现多种信号的采集和控制。
3. 可编程功能：
• 支持用户自定义的编程功能，提供了灵活性，使用户可以根据具体的应用需求进行配置和编程。
4. 可靠性和稳定性：
• 采用可靠的硬件与先进的控制技术，确保了模块在各种工业环境下的良好稳定性和可靠性。
5. 模拟输入通道：
• 具体来说，它具有2个模拟输入通道，每个通道可以处理0-10V、0-20mA、4-20mA或1-5V的模拟信号，这样的多功能性使它能够适应不同的传感器和信号类型。
6. 高精度A/D转换：
• 使用了16位A/D转换器，保证了高精度和低噪声的信号转换，这对于精确控制至关重要。

三、应用优势

• 由于其高性能、多通道、可编程以及高可靠性等特点，DAPC100 3ASC25H203模块非常适用于需要精细和可靠控制的工业自动化领域。

DAPC100 3ASC25H203 is a programmable control board module in ABB systems, mainly used in the field of industrial control. The following is a detailed analysis of the module:

I. Module overview

Type: High performance analog input module

Field of Application: Industrial automation, suitable for scenarios requiring fine and reliable control

Two, the main characteristics

High performance control:

Equipped with high-speed data processing capabilities and accurate control algorithms, it can achieve efficient process control and automatic operation.

Multi-channel input/output:

With multiple input and output channels, it can connect and control various types of devices and sensors to achieve a variety of signal acquisition and control.

Programmable features:

Support for user-defined programming features provides flexibility, allowing users to configure and program according to specific application requirements.

Reliability and stability:

The reliable hardware and advanced control technology ensure the good stability and reliability of the module in various industrial environments.

Analog input channel:

Specifically, it has 2 analog input channels, each of which can handle 0-10V, 0-20mA, 4-20mA, or 1-5V analog signals, such versatility allows it to adapt to different sensors and signal types.

High precision A/D conversion:

A 16-bit A/D converter is used, which guarantees high precision and low noise signal conversion, which is essential for precise control.

3. Application advantages

Due to its high performance, multi-channel, programmable and high reliability, the DAPC100 3ASC25H203 module is ideal for industrial automation where fine and reliable control is required.
