Bently 330180-51-00 3300 XL 8mm 电涡流前置器

Bently 330180-51-00 3300 XL 8mm Eddy Current Proximitor

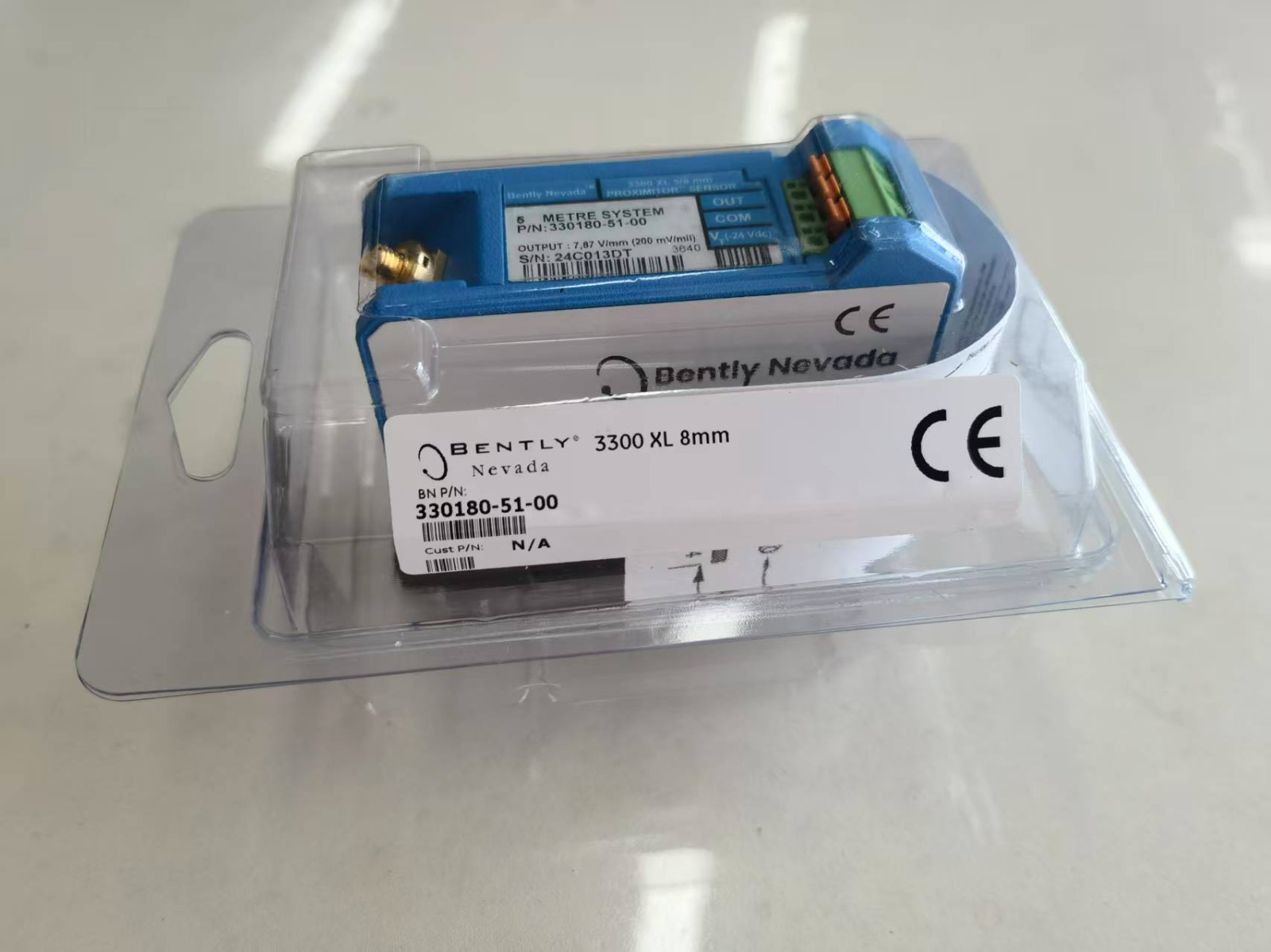

330180-51-00 physical item

1、 Model segmentation definition (330180-51-00)

330180:3300 XL standard 8mm probe with preamplifier series

fifty-one

First 5: The total calibration length of the entire system is 5 meters (the total length of the probe cable and extension cable must be 5 meters)

Secondary 1: DIN35 rail installation (50 represents panel installation)

00: No explosion-proof/multi country certification, standard cable version, ordinary industrial universal version

2、 Core functional principle

Based on the eddy current effect, provide high-frequency oscillation excitation to the probe coil; The impedance change of the coil caused by the change in the gap between the detection axis and the probe is converted into a DC negative voltage output, and the voltage corresponds linearly to the gap;

Used for measuring shaft vibration, shaft displacement, key phase/speed, differential expansion, in conjunction with 3500/42M and 1900/65A monitoring modules, in compliance with API 670 unit protection standards.

3、 Key technical parameters

1. Measurement performance (8mm system)

Sensitivity: 7.87 V/mm (200 mV/mil), error ± 5%

Linear range: 0.25mm to 2.3mm (total linear range 2mm/80mil)

Standard installation clearance: 1.27mm (50mil), corresponding to an output of approximately -10V DC

Output voltage range: -1V~-17V DC

Frequency response: DC~10kHz (± 3dB), covering high and low speed units

Minimum tested target surface diameter: 15.2mm; minimum shaft diameter: 76.2mm

2. Electrical specifications

Power supply: No safety barrier -17.5~-26V DC; Equipped with safety barrier -23~-26V DC

Static working current: ≤ 12mA

Output short circuit protection, RFI/EMI electromagnetic interference suppression

Complete interchangeability: Probe/extension cable/preamplifier can be directly replaced on-site without the need for separate calibration

3. Environment and Machinery

Working temperature: -35 ℃~+85 ℃; Storage -35 ℃~+100 ℃

Shell material: cast aluminum, insulated mounting base, no need for additional insulation pads

Weight: 255g

Installation: DIN rail buckle installation, compatible with old-fashioned panel hole fixing

Protection: Indoor control cabinet installation, not exposed to direct sunlight outdoors

4、 Complete set of supporting components (with a strict total length of 5 meters)

1. 8mm probe (with 1m cable at the tail)

330103-XX-XX-10-02-XX、 330104 series

2. Extend the cable (up to a total length of 5m)

Probe comes with 1m → equipped with 330130-040-00 (4m)

3. Backend monitoring module

3500/42M displacement vibration module, 1900/65A, 2300 series monitoring instruments

5、 Typical application scenarios

Monitoring of shaft systems for thermal power/petrochemical/metallurgical rotary units:

Turbine and gas turbine shaft vibration/axial displacement

Compressor, booster, fan, motor shaft vibration

Key phase speed measurement, zero speed measurement, and differential expansion measurement of bearing shells

6、 Comparison of suffix differentiation for the same model

table

Model length installation certification applicable scenarios

330180-51 5m DIN rail standard non explosion proof ordinary factory control cabinet

330180-51-05 5m DIN rail, multi country explosion-proof certification, chemical explosion-proof area

330180-51 CN 5m DIN rail domestic explosion-proof certification domestic chemical project

330180-50-00 5m panel installation standard old-fashioned control cabinet panel opening

7、 Key points for installation and debugging

Wiring: Dedicated coaxial shielded cable, single ended grounding of shielding layer to avoid ground loop noise

Gap calibration: After installation, measure the output voltage and adjust it to -8.5~-10V (1.27mm standard gap)

The total length of the system is strictly prohibited from mixing: the 5-meter preamplifier can only be paired with a probe and cable totaling 5 meters. Length mismatch will result in loss of linearity and sensitivity offset

Troubleshooting: No output, check power polarity; Signal drift inspection joint coaxial thread, cable damage
