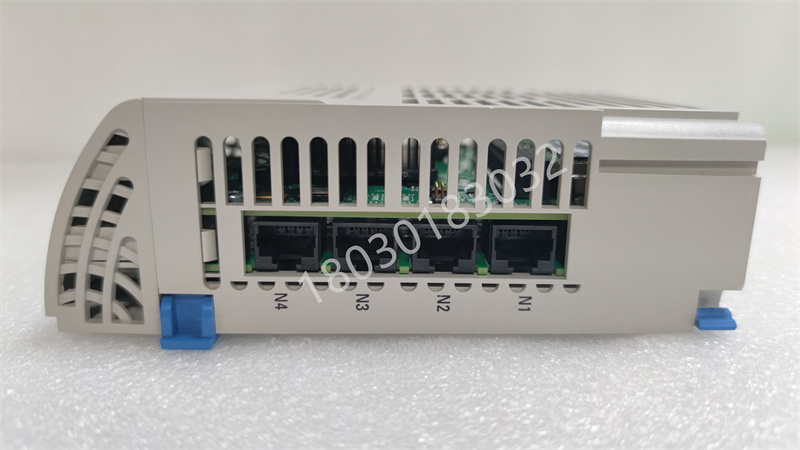

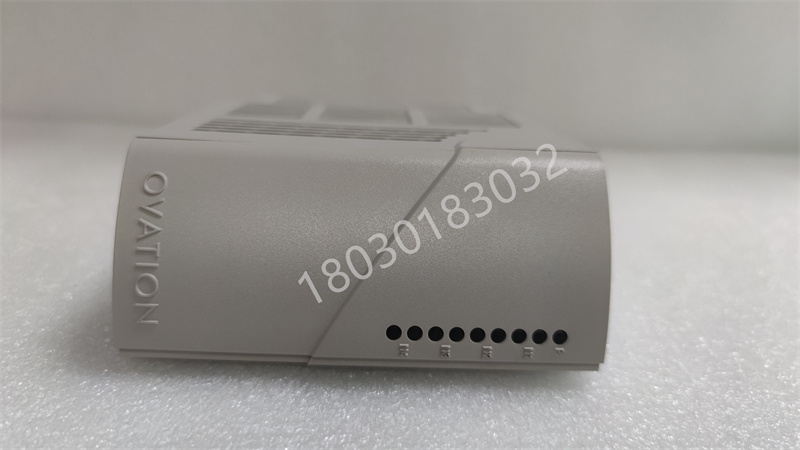

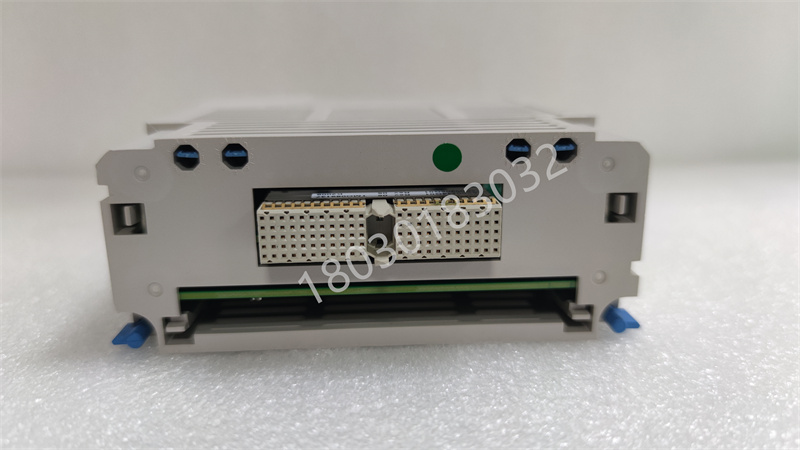

### 艾默生 OVATION 控制器 OCR1100 5X00481G04 和 5X00226G04 高性能输入输出模块

#### 产品概述

艾默生 OVATION 控制器 OCR1100 5X00481G04 和 5X00226G04 是高性能的输入输出模块，专为工业自动化和过程控制系统设计。这些模块广泛应用于电力、石油、化工等多个行业，提供稳定可靠的控制性能。

#### 技术规格

- **5X00481G04**：

  - **类型**：CPU 控制模块。

  - **功能**：支持复杂的控制策略，包括调节、顺序控制和数据采集。

  - **容量**：可管理多达32,000个控制点。

  - **通信能力**：支持与 Ovation 网络和各种 I/O 子系统的无缝连接。

  - **工作温度**：-40°C至70°C。

  - **防护等级**：IP66/IP67。

- **5X00226G04**：

  - **类型**：控制器基座模块。

  - **功能**：为 OCR1100 控制器提供物理安装和电气连接。

  - **兼容性**：与 5X00481G04 CPU 模块配合使用。

#### 功能特点

- **高可靠性**：采用冗余设计，确保系统在故障时能够无缝切换。

- **高效数据处理**：具备快速处理器，提高系统生产力。

- **灵活配置**：支持多种扩展模块和附件，可根据实际需求进行灵活配置。

- **高精度测量**：支持多种传感器类型，如 Pt100、Pt500、Cu100 等，提供高精度的温度测量。

- **诊断功能**：具备故障检测和诊断功能，确保系统的安全性和可靠性。

#### 应用领域

- **电力行业**：用于发电厂的自动化管理。

- **石油和天然气**：用于石油和天然气生产过程中的精确控制。

- **化工行业**：用于化工生产过程中的温度、压力和流量控制。

- **水处理**：用于水厂和污水处理厂的关键任务运行控制。

#### 安装与维护

- **安装方式**：支持 DIN 导轨安装。

- **维护建议**：定期进行清洁和检查，确保模块的长期稳定运行。

这些模块凭借其高性能、高可靠性和灵活的配置能力，成为工业自动化和过程控制系统中的重要组件。

###Emerson OVATION Controller OCR1100 5X00481G04 and 5X00226G04 High Performance Input/Output Modules

####Product Overview

The Emerson OVATION controllers OCR1100 5X00481G04 and 5X00226G04 are high-performance input-output modules designed specifically for industrial automation and process control systems. These modules are widely used in multiple industries such as power, petroleum, and chemical, providing stable and reliable control performance.

####Technical specifications

- **5X00481G04**：

-* * Type * *: CPU control module.

-* * Function * *: Supports complex control strategies, including regulation, sequential control, and data collection.

-* * Capacity * *: Can manage up to 32000 control points.

-Communication Capability: Supports seamless connection with Ovation network and various I/O subsystems.

-Working temperature: -40 ° C to 70 ° C.

-Protection level: IP66/IP67.

- **5X00226G04**：

-* * Type * *: Controller base module.

-* * Function * *: Provides physical installation and electrical connections for the OCR1100 controller.

-Compatibility: Used in conjunction with the 5X00481G04 CPU module.

####Functional Features

-* * High reliability * *: Adopting redundant design to ensure seamless switching of the system in case of failure.

-Efficient data processing: Equipped with fast processors to improve system productivity.

-* * Flexible Configuration * *: Supports multiple expansion modules and accessories, and can be flexibly configured according to actual needs.

-High precision measurement: Supports multiple sensor types such as Pt100, Pt500, Cu100, etc., providing high-precision temperature measurement.

-* * Diagnostic Function * *: It has fault detection and diagnostic functions to ensure the safety and reliability of the system.

####Application Fields

-Power industry: Used for automated management of power plants.

-Oil and Gas: Used for precise control in the production process of oil and gas.

-Chemical industry: Used for temperature, pressure, and flow control in chemical production processes.

-* * Water treatment * *: Used for critical task operation control of water plants and sewage treatment plants.

####Installation and maintenance

-Installation method: Supports DIN rail installation.

-* * Maintenance suggestion * *: Regularly clean and inspect to ensure the long-term stable operation of the module.

These modules have become important components in industrial automation and process control systems due to their high performance, high reliability, and flexible configuration capabilities.
