GE /FANUC/控制器/卡件

美国GE电气 DS200LDCCH1A 驱动控制板

    品牌:GE
    型号:DS200LDCCH1A
    订货号:DS200LDCCH1A
    上架日期:2025-05-07 10:43
  • 产品详情

### GE DS200LDCCH1A 驱动控制板


#### 产品概述

GE DS200LDCCH1A是一款高性能的驱动LAN控制板,专为GE Mark V系列驱动器和励磁器设计。它广泛应用于各种工业自动化和过程控制系统中,提供驱动控制、通信和人机交互功能。

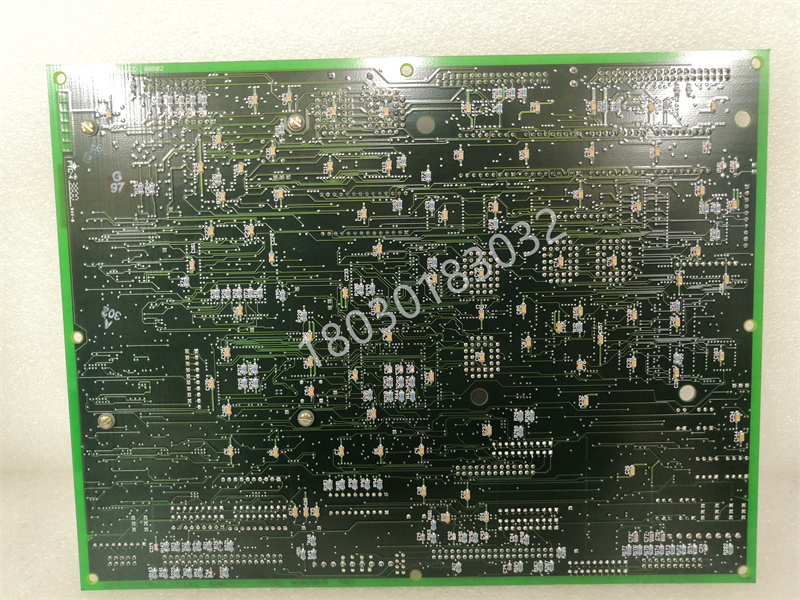

DS200LDCCH1ALA.2020.02.19. (1)_副本.jpg


#### 技术规格

- **接口类型**:

  - 支持Ethernet、RS-485等通信协议。

- **电源要求**:根据系统配置而定。

- **工作温度**:0°C至50°C。

- **湿度**:<85% RH。

- **尺寸**:80mm(宽)×160mm(高)×250mm(深)。

- **重量**:约2Kg。

- **功耗**:15VA。

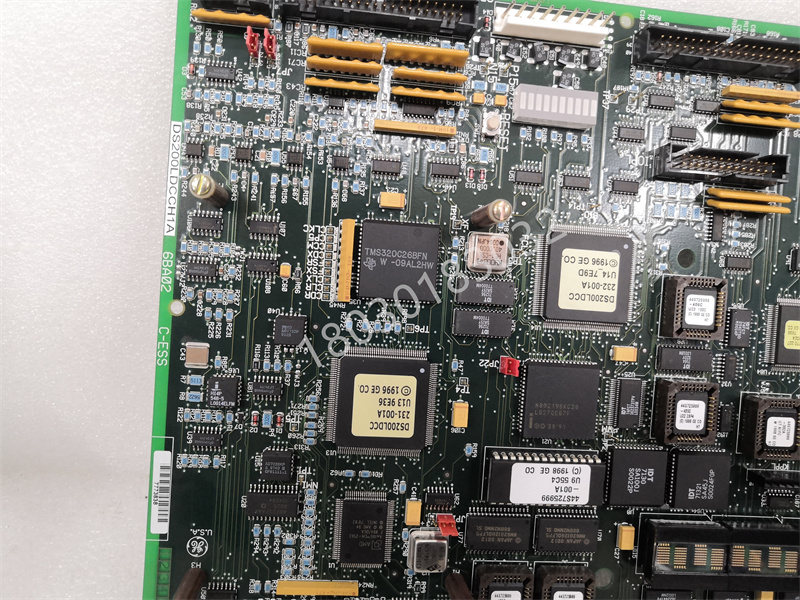

DS200LDCCH1ALA.2020.02.19. (2)_副本.jpg


#### 功能特点

- **驱动控制**:实现对电机的速度、扭矩等参数的精确控制。

- **LAN通信**:通过局域网连接,实现与其他设备(如上位机、PLC等)的通信。

- **人机交互**:提供本地操作界面,方便用户进行参数设置和故障诊断。

- **I/O处理**:处理数字量和模拟量输入输出信号。

- **实时监控与诊断**:提供实时数据和诊断功能,帮助用户监控和分析驱动器的性能。

- **多种处理器集成**:板载四个微处理器,包括LAN控制处理器(LCP)、驱动控制处理器(DCP)、电机控制处理器(MCP)和协电机处理器(CMP),实现高效控制和管理。

DS200LDCCH1ALA.2020.02.19. (4)_副本.jpg


#### 应用场景

- **发电厂**:用于控制汽轮机、发电机等大型设备。

- **工业生产线**:用于控制各种驱动设备,如电机、液压泵等。

- **机械控制**:控制各种类型的电机,如直流电机、步进电机等。

- **过程控制**:在化工和制造业领域,控制液体泵、阀门和其他驱动设备,实现精确的流量和压力控制。

- **能源管理**:应用于能源管理系统中,控制能源生产和分配过程中的各种设备。


GE DS200LDCCH1A凭借其高性能、多功能和高可靠性,成为工业自动化和过程控制系统中的重要组件。

3500/42M 176448-02大卡
3500/42M 17644402
3500/42M 17644--大卡
CLS204
3500/33 149986-01大卡
CLS204
CARTRIDGE20UM5 "-PENTE

330500-02-00
IC695ETM001
330400-02-05
CI853K01
CI853 3BSE018103R1
330780-90-00
A413240
125840-01
3500/15 127610-01
MVME5500-0161
MVME55006E-0163R
FLOBOSS S600
PXIE-4142
3152335-004 尾缀Q
VE3008 CE3008 K2005X1-MC
VE3008 CE3008 KJ2005X1-M
VE3008 CE3008 KJ2005X1-1
VE3008 CE3008 KJ2005X1-M0
VE3008 CE3008 K2005X1-M
HVE04.2-WO75N

6SL3352-1AG41-3FA1
MARATHON@CP-8 P/N2651:
0090-07135
C1867 3BSE043660R1
3ASC25H209 DATX110
3ASC25H209

###GE DS200LDCCH1A Drive Control Board

####Product Overview

The GE DS200LDCCH1A is a high-performance drive LAN control board designed specifically for GE Mark V series drives and exciters. It is widely used in various industrial automation and process control systems, providing drive control, communication, and human-computer interaction functions.

####Technical specifications

-* * Interface type * *:

-Supports communication protocols such as Ethernet and RS-485.

-* * Power Requirements * *: Depending on the system configuration.

-Working temperature: 0 ° C to 50 ° C.

-* * Humidity * *:<85% RH.

-* * Size * *: 80mm (width) x 160mm (height) x 250mm (depth).

-Weight: Approximately 2Kg.

-* * Power consumption * *: 15VA.

####Functional Features

-Drive Control: Achieve precise control of motor speed, torque, and other parameters.

-LAN communication: Communication with other devices (such as upper computer, PLC, etc.) is achieved through LAN connection.

-* * Human Computer Interaction * *: Provides a local operating interface for users to easily set parameters and diagnose faults.

-I/O processing: Processing digital and analog input/output signals.

-Real time monitoring and diagnosis: Provides real-time data and diagnostic functions to help users monitor and analyze the performance of drives.

-* * Multiple Processor Integration * *: Onboard four microprocessors, including LAN Control Processor (LCP), Drive Control Processor (DCP), Motor Control Processor (MCP), and Co motor Processor (CMP), to achieve efficient control and management.

####Application scenarios

-Power plant: used to control large equipment such as steam turbines and generators.

-Industrial production line: used to control various driving equipment, such as motors, hydraulic pumps, etc.

-Mechanical Control: Control various types of motors, such as DC motors, stepper motors, etc.

-Process Control: In the chemical and manufacturing industries, it controls liquid pumps, valves, and other driving equipment to achieve precise flow and pressure control.

-Energy Management: Used in energy management systems to control various equipment involved in energy production and distribution processes.

The GE DS200LDCCH1A has become an important component in industrial automation and process control systems due to its high performance, versatility, and reliability.
