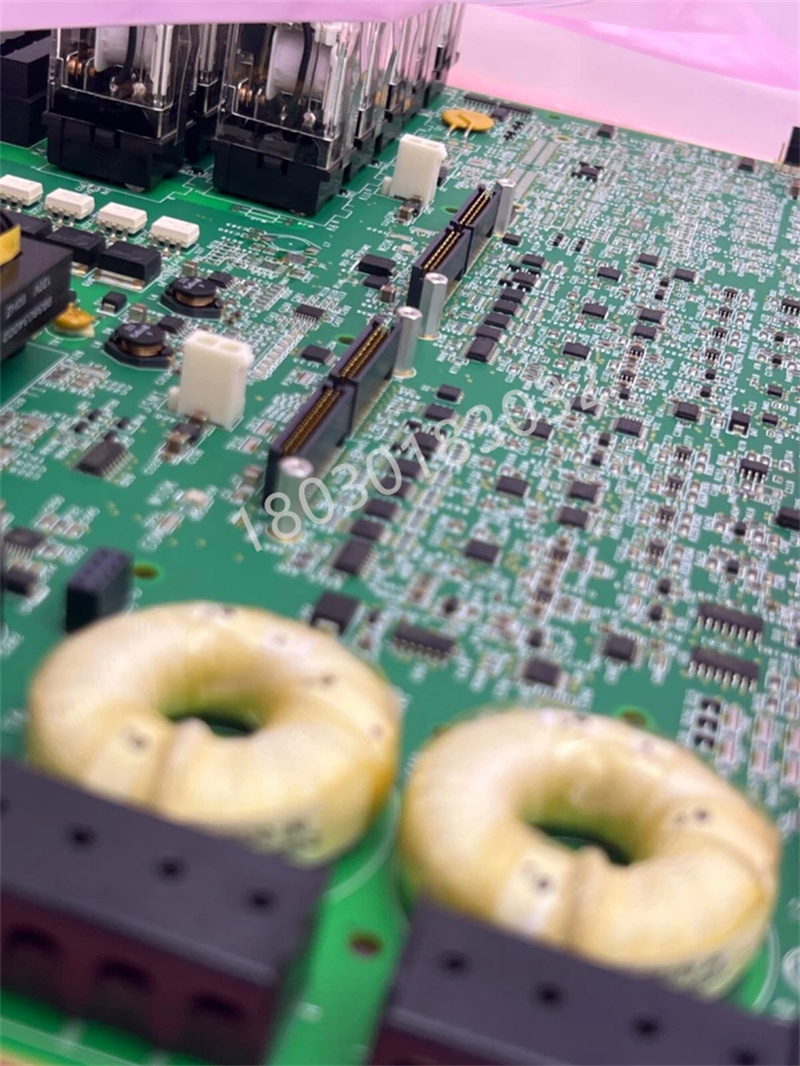

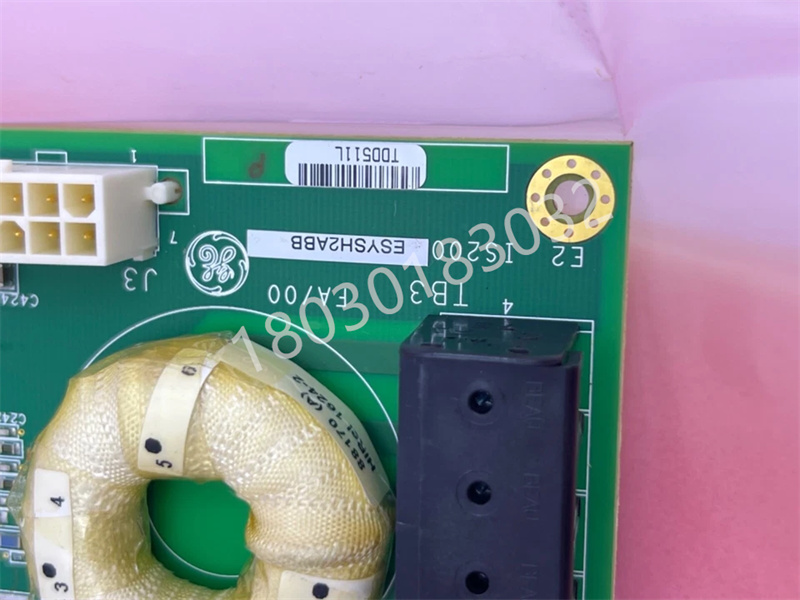

GE IS200ESYSH2A 控制系统输出接口板

产品概述

GE IS200ESYSH2A 是一款高性能的系统接口板，专为 EX2100e 励磁控制系统设计。它支持双控制冗余，确保系统的高可靠性和稳定性。

技术规格

主要特点和优势

• 双控制冗余：支持 M1 和 M2 两个控制部分，确保在故障情况下系统的无缝切换。
• 高可靠性：设计用于恶劣的工业环境，确保长期稳定运行。
• 灵活的 I/O 配置：支持多种输入输出信号，包括模拟和数字信号。
• 易于安装和维护：采用可拆卸的终端条设计，便于安装和维护。
• 广泛的应用兼容性：适用于励磁调节系统和静态系统。

应用领域

• 电力系统：用于发电厂和变电站的励磁控制系统。
• 工业自动化：在自动化生产线中，用于实时采集生产数据。
• 水处理：用于污水处理厂和净水厂的自动化管理。

GE IS200ESYSH2A Control System Output Interface Board

product overview

GE IS200ESYSH2A is a high-performance system interface board designed specifically for the EX2100e excitation control system. It supports dual control redundancy to ensure high reliability and stability of the system.

technical specifications

Parameter Name Parameter Value

Product model IS200ESYSH2A

Brand GE General Electric

Series EX2100e

Control type dual control redundancy

Control section M1 and M2 controllers

Data processing capability 52G

Seven universal contact inputs for input interfaces

Power requirement 55V DC

Size 16.7cm x 14.8cm x 5.5cm

Weight 0.6kg

Working temperature range -20 ° C to+60 ° C

Storage temperature range -40 ° C to+85 ° C

Relative humidity 5-95% (no condensation)

Protection level IP20

Main features and advantages

Dual control redundancy: Supports both M1 and M2 control parts to ensure seamless switching of the system in case of faults.

High reliability: designed for harsh industrial environments to ensure long-term stable operation.

Flexible I/O configuration: Supports multiple input and output signals, including analog and digital signals.

Easy to install and maintain: Adopting a detachable terminal strip design for easy installation and maintenance.

Wide application compatibility: suitable for excitation regulation systems and static systems.

application area

Power system: excitation control system used for power plants and substations.

Industrial automation: Used for real-time collection of production data in automated production lines.

Water treatment: used for automated management of sewage treatment plants and water purification plants.
