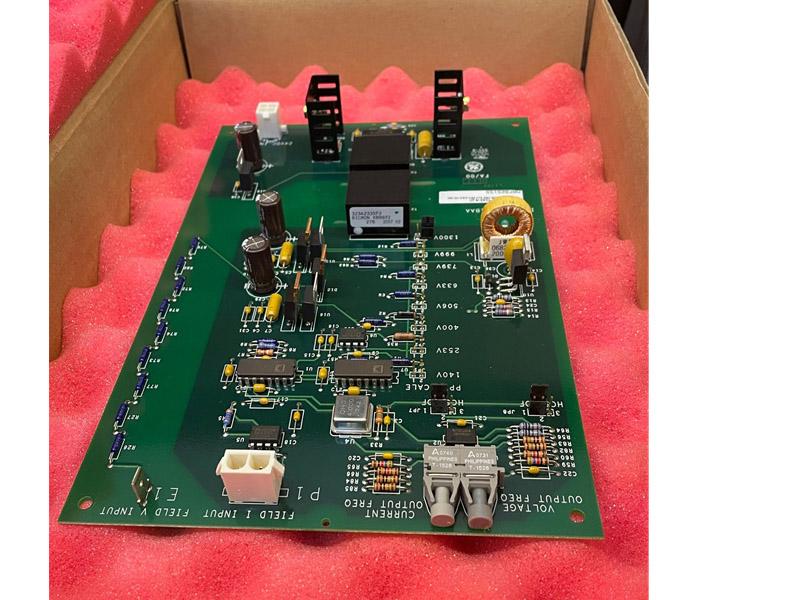

IS200EMIOH1A is a communication interface module produced by GE General Electric. The following is a detailed introduction to it:

1、 Product Information

Brand: GE (General Electric)

Model: IS200EMIOH1A

Application System: Mainly used in the GE Speedtronic Mark VI series steam turbine control system, as the excitation main input/output board, connecting various modules in the excitation system to achieve data exchange and control.

2、 Parameters and specifications

Input/output channels:

Analog input channels: 8 channels

Analog output channel: 2 channels

Digital input channel: 16 channels

Digital output channel: 16 channels

Input signal type:

Voltage input range: 0-5V, 0-10V

Current input range: 4-20mA, 0-20mA

Output signal type:

Voltage output range: 0-5V, 0-10V

Current output range: 4-20mA

Resolution:

Analog input: 16 bits

Analog output: 16 bits

Sampling rate:

Analog input: 10kHz

Analog output: 1kHz

Communication Protocol: Supports multiple communication protocols such as ProfiBus, DeviceNet, ModBus, etc., facilitating system integration and expansion.

Work environment:

Working temperature range: -20 ℃ to 60 ℃

Relative humidity: 5% to 95% (no condensation)

Power specifications:

Rated voltage: 24VDC

Power consumption: maximum 10W

Size and weight:

Size (length x width x height): 160mm x 120mm x 50mm (also known as 33 x 10 x 8cm, may vary depending on different batches or configurations)

Weight: Approximately 0.5kg (also known as 0.65985kg or 0.8kg, may vary depending on different batches or configurations)

3、 Usage scenarios

The IS200EMIOH1A communication interface module is widely used in industrial fields that require excitation control, such as CNC machinery, metallurgy, coal mines, food factories, oil and gas, petrochemicals, chemical engineering, paper and printing, textile printing and dyeing, machinery, electronic manufacturing, automobile manufacturing, tobacco, plastic machinery, electricity, water conservancy, water treatment, environmental protection, municipal engineering, boiler heating, energy, power transmission and distribution, etc. In these fields, it plays an important role in connecting various modules in the excitation system, achieving data exchange and control, and ensuring the stable operation of the system.

4、 Functional Features

High precision and stability: 16 bit resolution analog input and output ensure high-precision data acquisition and control.

Flexible communication capability: Supports multiple mainstream communication protocols, facilitating system integration and expansion.

Wide temperature working range: able to work stably at extreme temperatures and adapt to various industrial environments.

Compact design: With a compact size, it is easy to install and layout, saving space.
