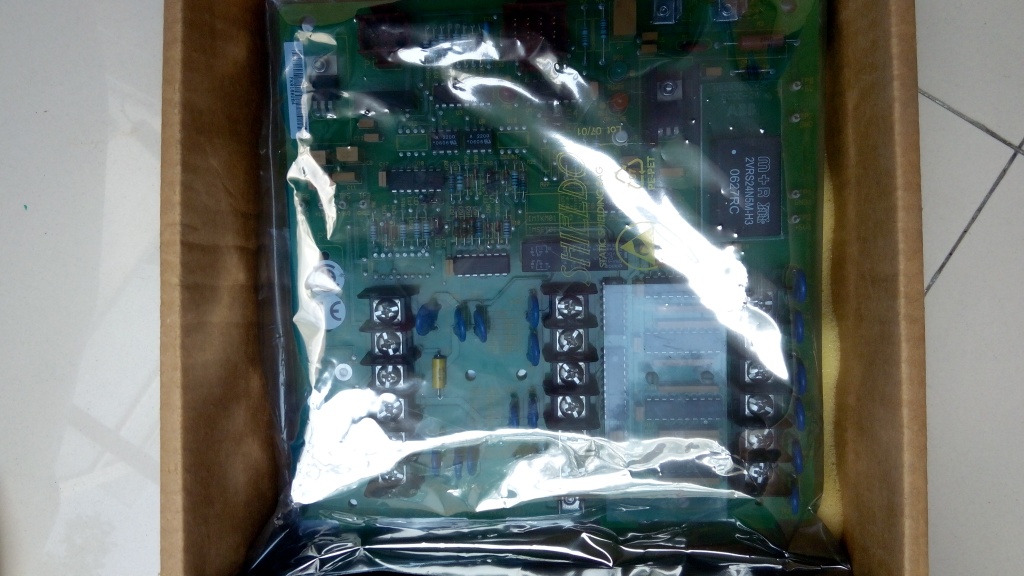

美国GE电气制造的IS200TRPGH1B紧急保护端子板是用于燃气轮机控制系统的关键组件。以下是对其详细说明、优势以及应用领域的探讨：

说明

IS200TRPGH1B紧急保护端子板是GE电气为燃气轮机控制系统设计的一款产品。它属于VIe系列，专为燃气轮机的紧急跳闸保护而设计。这款端子板集成了多个功能，包括接收总线和发电机电压输入，处理I/O包的速度信号输入，并提供紧急跳闸功能。此外，它还配备了继电器和连接器，用于后备保护和主保护。

优势

1. 高度集成：IS200TRPGH1B紧急保护端子板集成了多个功能，包括电压互感器、继电器和连接器等，使得整个燃气轮机控制系统的结构更加紧凑和高效。
2. 快速响应：由于该端子板专为紧急跳闸保护而设计，因此它具有快速响应的能力，能够在燃气轮机出现故障时迅速切断电源，保护设备免受进一步损坏。
3. 灵活配置：端子板上的继电器和连接器可以根据具体需求进行灵活配置，以适应不同型号的燃气轮机控制系统。
4. 易于安装和维护：IS200TRPGH1B紧急保护端子板设计合理，安装简便，同时维护也相对容易，降低了用户的运营成本。

应用

IS200TRPGH1B紧急保护端子板主要应用于燃气轮机控制系统中，用于提供紧急跳闸保护功能。在燃气轮机运行过程中，如果出现异常情况或故障，该端子板会迅速切断电源，以防止设备受到进一步损坏。此外，它还可以提供后备保护和主保护功能，确保燃气轮机的安全稳定运行。

总之，美国GE电气的IS200TRPGH1B紧急保护端子板以其高度集成、快速响应、灵活配置以及易于安装和维护等优势，在燃气轮机控制系统中发挥着重要作用，为燃气轮机的安全稳定运行提供了有力保障。

The IS200TRPGH1B emergency protection terminal board manufactured by GE Electric in the United States is a key component used in gas turbine control systems. The following is a detailed explanation, advantages, and discussion of its application areas:

explain

The IS200TRPGH1B emergency protection terminal board is a product designed by GE Electric for gas turbine control systems. It belongs to the VIe series and is designed specifically for emergency trip protection of gas turbines. This terminal board integrates multiple functions, including receiving bus and generator voltage inputs, processing speed signal inputs for I/O packages, and providing emergency tripping function. In addition, it is equipped with relays and connectors for backup protection and main protection.

advantage

Highly integrated: The IS200TRPGH1B emergency protection terminal board integrates multiple functions, including voltage transformers, relays, and connectors, making the structure of the entire gas turbine control system more compact and efficient.

Quick response: As this terminal board is specifically designed for emergency trip protection, it has the ability to respond quickly and quickly cut off power in the event of a gas turbine failure, protecting the equipment from further damage.

Flexible configuration: The relays and connectors on the terminal board can be flexibly configured according to specific needs to adapt to different models of gas turbine control systems.

Easy to install and maintain: The IS200TRPGH1B emergency protection terminal board is designed reasonably, easy to install, and relatively easy to maintain, reducing user operating costs.

application

The IS200TRPGH1B emergency protection terminal board is mainly used in gas turbine control systems to provide emergency trip protection function. During the operation of the gas turbine, if any abnormal situation or malfunction occurs, the terminal board will quickly cut off the power to prevent further damage to the equipment. In addition, it can also provide backup protection and main protection functions to ensure the safe and stable operation of the gas turbine.

In summary, GE Electric's IS200TRPGH1B emergency protection terminal board plays an important role in gas turbine control systems due to its high integration, fast response, flexible configuration, and ease of installation and maintenance, providing strong guarantees for the safe and stable operation of gas turbines.
