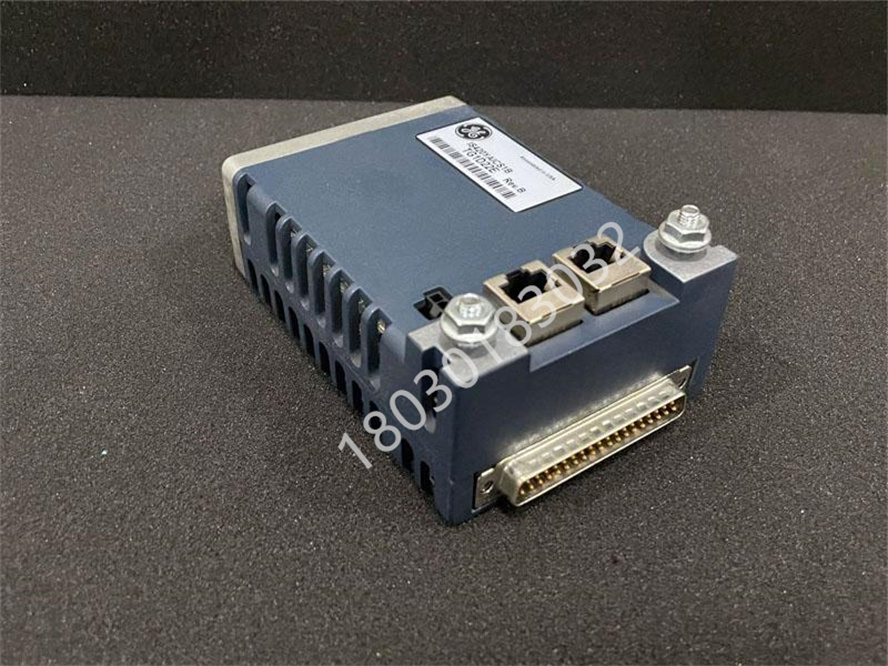

GE通用电气IS420YAICS1B输入输出端子模块是一款高性能的模拟I/O（输入/输出）模块，它作为GE Mark VIeS控制系统的一部分，在工业自动化领域发挥着重要作用。以下是对该模块的详细解析：

一、产品概述

IS420YAICS1B模块主要用于连接一个或两个I/O以太网与模拟输入/输出端子板，实现模拟信号的精确采集、转换和控制。该模块具备强大的模拟信号处理能力，能够为工业自动化系统提供可靠、精确的数据支持，满足各种复杂工业应用的需求。

二、主要特点

高精度模拟信号处理：IS420YAICS1B能够接收来自相关端子板的输入电压信号，并通过精密的转换机制将其转换为控制系统可以理解的数字信号，确保信号的准确性和可靠性。

灵活的输入配置：该模块支持多种输入配置方式，能够适应不同的工业自动化应用场景，提供灵活的数据采集和控制方案。

服务性接口功能：除了基本的输入输出功能外，IS420YAICS1B还具备服务性接口功能，在设备发动、关机或运转过程中进行故障检测和维护服务，提高了系统的可维护性和可靠性。

兼容性：该模块与BPPC处理器板兼容，并支持V05.01或更高版本的固件。同时，它还需要配合V06.01或更高版本的ControlST软件使用，以确保系统的稳定运行。

三、结构组成

IS420YAICS1B模块由一个处理器板和一个特定于输入功能的采集板组成。这种设计使得模块在处理复杂工业信号时更加高效和稳定。

四、应用领域

IS420YAICS1B模块广泛应用于工业自动化领域，特别是在需要精确控制模拟信号的场合。例如，它可以用于工业涡轮机、发电机等设备的温度、压力、流量等参数的监测和控制，确保设备的稳定运行和生产效率。

GE GE IS420YAICS1B Input/Output terminal module is a high-performance analog I/O (input/output) module that plays an important role in the field of industrial automation as part of the GE Mark VIeS control system. The following is a detailed analysis of the module:

I. Product overview

IS420YAICS1B module is mainly used to connect one or two I/O Ethernet and analog input/output terminal board to achieve accurate acquisition, conversion and control of analog signals. The module has powerful analog signal processing capabilities, which can provide reliable and accurate data support for industrial automation systems to meet the needs of various complex industrial applications.

Two, the main characteristics

High precision analog signal processing: The IS420YAICS1B is capable of receiving input voltage signals from the relevant terminal board and converting them into digital signals that the control system can understand through a sophisticated conversion mechanism, ensuring the accuracy and reliability of the signal.

Flexible input configuration: The module supports a variety of input configuration modes, which can adapt to different industrial automation application scenarios and provide flexible data acquisition and control schemes.

Service interface function: In addition to the basic input and output functions, the IS420YAICS1B also has a service interface function, fault detection and maintenance services during equipment startup, shutdown or operation, improving the maintainability and reliability of the system.

Compatibility: The module is compatible with BPPC processor boards and supports firmware version V05.01 or later. At the same time, it also needs to be used with V06.01 or later ControlST software to ensure stable operation of the system.

Three, structure composition

The IS420YAICS1B module consists of a processor board and a capture board specific to the input function. This design makes the module more efficient and stable when processing complex industrial signals.

4. Application field

The IS420YAICS1B module is widely used in the field of industrial automation, especially where precise control of analog signals is required. For example, it can be used to monitor and control the temperature, pressure, flow and other parameters of industrial turbines, generators and other equipment to ensure the stable operation and production efficiency of the equipment.
