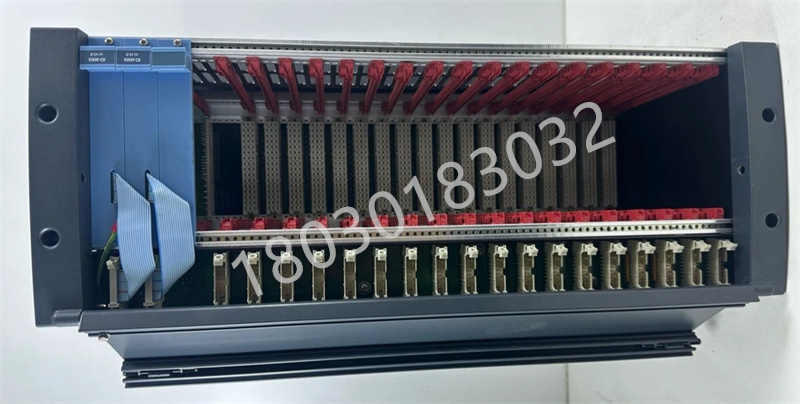

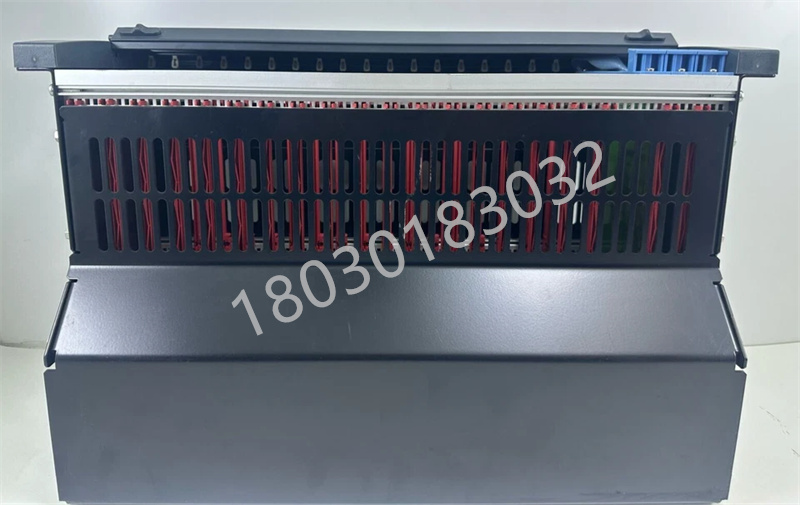

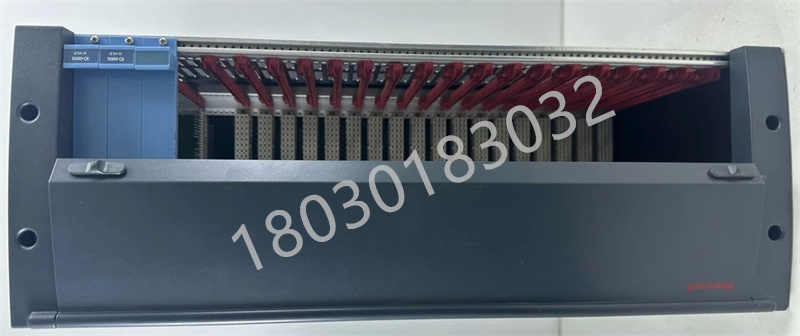

Honeywell FC-IOCHAS-0001R 机架模块

产品概述

Honeywell FC-IOCHAS-0001R 是一款专为工业自动化应用设计的冗余 I/O 模块机箱，旨在为 I/O 模块提供安全可靠的安装环境，并通过冗余配置提升系统的容错能力和可靠性。

技术规格

• 尺寸：19 英寸标准机架，高度为 1+3+1 HE（44.5+133.4+44.5 mm），宽度为 482.6 mm（19 英寸），深度为 280 mm（11 英寸）。
• 重量：约 8.5 kg。
• 电源消耗：5V-1 和 5V-2 各为 35 mA。
• 认证：CE, UL, CSA, TUV, FM。
• 槽位：支持 18 个 I/O 模块槽位（1 至 18 号），以及 2 个 I/O 扩展模块槽位（20 和 21 号）。
• 连接器：提供多个扁平电缆连接器，用于连接 I/O 模块和扩展模块。

主要特点和优势

• 冗余设计：支持电源冗余和通信冗余，确保在单个模块故障时系统仍能继续运行。
• 多功能性：支持多种输入输出类型，如模拟量输入（AI）、模拟量输出（AO）、数字量输入（DI）和数字量输出（DO）等。
• 高性能：采用先进的电子技术和控制算法，确保模块在处理输入输出信号时具有高精度和高速度。
• 易于配置：支持即插即用和快速配置功能，用户可以根据实际需求轻松设置模块的参数和输入输出通道。
• 工业级设计：采用工业级材料和工艺制造，具有良好的抗干扰能力和耐恶劣环境性能。

应用场景

Honeywell FC-IOCHAS-0001R Rack Module

product overview

Honeywell FC-IOCHAS-0001R is a redundant I/O module chassis designed specifically for industrial automation applications, aimed at providing a safe and reliable installation environment for I/O modules, and enhancing system fault tolerance and reliability through redundant configuration.

technical specifications

Size: 19 inch standard rack, height 1+3+1 HE (44.5+133.4+44.5 mm), width 482.6 mm (19 inches), depth 280 mm (11 inches).

Weight: Approximately 8.5 kg.

Power consumption: 35mA for 5V-1 and 5V-2.

Certification: CE, UL, CSA, TUV, FM.

Slot: Supports 18 I/O module slots (1 to 18), as well as 2 I/O expansion module slots (20 and 21).

Connector: Provides multiple flat cable connectors for connecting I/O modules and expansion modules.

Main features and advantages

Redundancy design: Supports power redundancy and communication redundancy to ensure that the system can continue to operate in the event of a single module failure.

Multifunctionality: Supports multiple input and output types, such as Analog Input (AI), Analog Output (AO), Digital Input (DI), and Digital Output (DO).

High performance: Advanced electronic technology and control algorithms are adopted to ensure that the module has high precision and speed in processing input and output signals.

Easy to configure: Supports plug and play and quick configuration functions, allowing users to easily set module parameters and input/output channels according to their actual needs.

Industrial grade design: Made with industrial grade materials and processes, it has good anti-interference ability and resistance to harsh environments.

Application scenarios

FC-IOCHAS-0001R is widely used in the field of industrial automation, such as chemical plants, steel plants, power plants, manufacturing industries, etc. It can serve as an important component of DCS systems, PLC control systems, etc., to monitor and control on-site equipment, improve production efficiency and safety.
