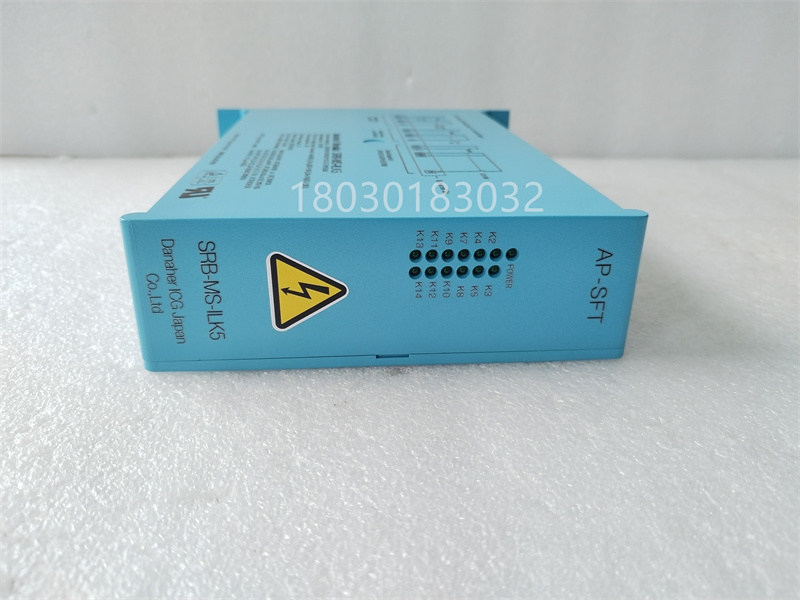

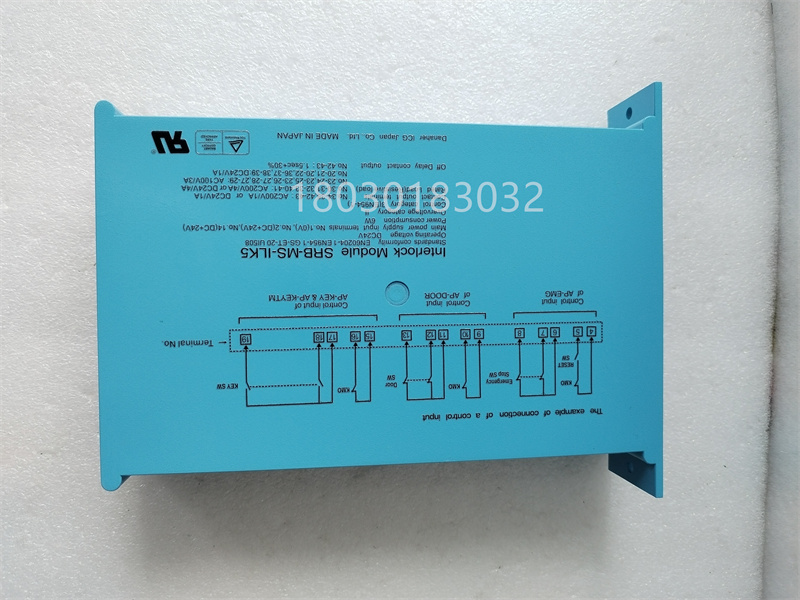

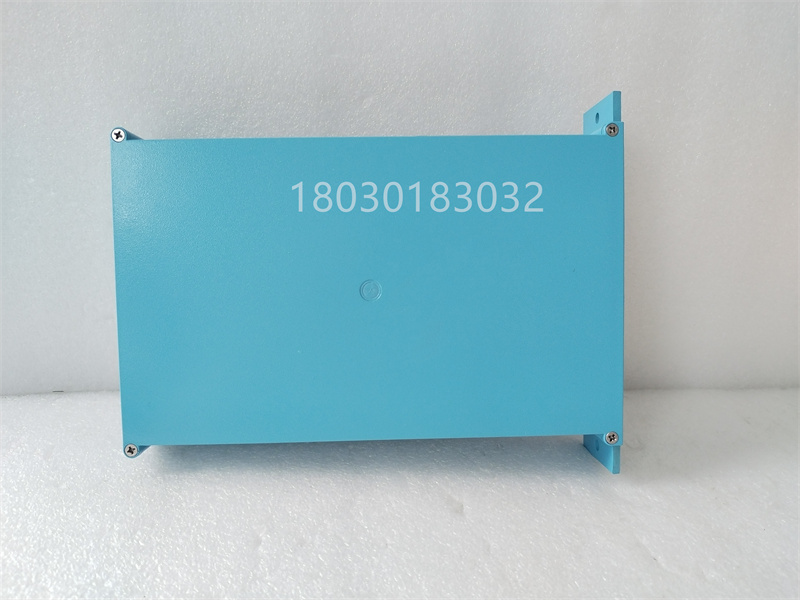

KOLLMORGEN SRB-MS-ILK5 控制处理器单元

主要特点

• 高安全等级：符合 SIL 2 和 PL d 安全等级，确保高安全可靠性。
• 快速响应时间：响应时间小于 20 毫秒，能够快速切断危险信号。
• 多种功能：支持多种功能，满足不同应用需求。
• 易于使用：提供直观的指示和方便的操作。
• 紧凑设计：尺寸为 40 mm x 25 mm x 11 mm，便于集成到现有系统中。
• 高防护等级：防护等级 IP67，适用于恶劣工业环境。

技术规格

• 输入电压：24 VDC。
• 输入信号：PNP/NPN。
• 输出信号：PNP/NPN。
• 响应时间：小于 20 ms。
• 工作温度：-20°C 至 +60°C。
• 尺寸：40 mm x 25 mm x 11 mm。
• 重量：0.85kg。

应用场景

• 机器人：用于防止机器人意外启动或碰撞障碍物。
• 机床：用于保护操作人员免受机器运动伤害。
• 输送系统：用于防止输送系统出现堵塞或人员伤亡。
• 其他工业应用：广泛应用于其他需要高安全等级的安全互锁应用。

KOLLMORGEN SRB-MS-ILK5 Control Processor Unit

Product Overview

KOLLMORGEN SRB-MS-ILK5 is a high-performance safety interlock module designed specifically for industrial automation and process control.

It complies with SIL 2 and PL d safety levels, ensuring high reliability and safety in safety critical applications.

Main Features

High safety level: Compliant with SIL 2 and PL d safety levels, ensuring high safety and reliability.

Fast response time: With a response time of less than 20 milliseconds, it can quickly cut off danger signals.

Multiple functions: Supports multiple functions to meet different application needs.

Easy to use: Provides intuitive instructions and convenient operation.

Compact design: The dimensions are 40mm x 25mm x 11mm, making it easy to integrate into existing systems.

High protection level: IP67 protection level, suitable for harsh industrial environments.

Technical Specifications

Input voltage: 24 VDC.

Input signal: PNP/NPN.

Output signal: PNP/NPN.

Response time: less than 20 ms.

Working temperature: -20 ° C to+60 ° C.

Dimensions: 40mm x 25mm x 11mm.

Weight: 0.85kg.

Application scenarios

Robots: Used to prevent robots from accidentally starting or colliding with obstacles.

Machine tool: used to protect operators from machine movement injuries.

Conveyor system: used to prevent blockages or casualties in the conveyor system.

Other industrial applications: widely used in other security interlock applications that require high security levels.

KOLLMORGEN SRB-MS-ILK5 has become an ideal control processor unit in the fields of industrial automation and process control due to its high performance, versatility, and reliability.
