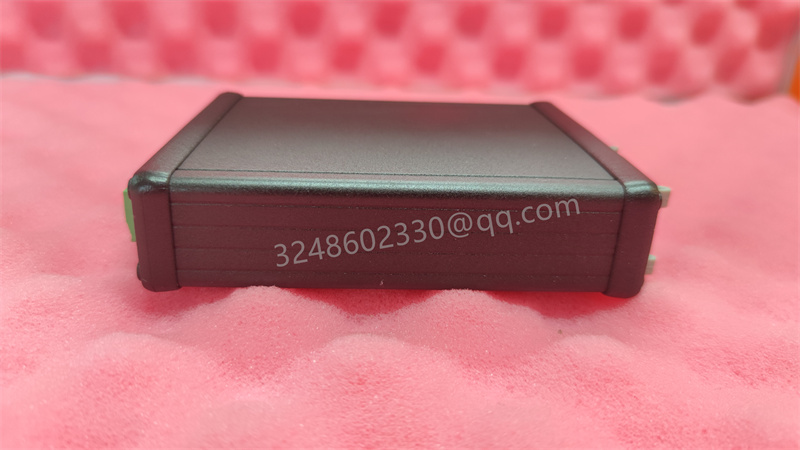

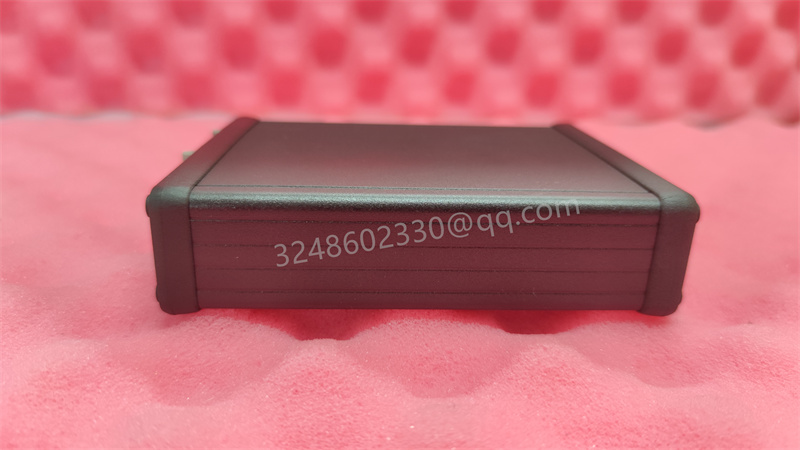

AN-X2-AB-DHRIO 是一款由 ProSoft Technology 生产的高性能通信模块，专为工业自动化应用设计，能够实现 Allen-Bradley DH+ 和远程 I/O 网络与 EtherNet/IP 网络之间的无缝连接。

技术规格

工作电压：24V DC（±20%）。

工作温度范围：-40°C 至 +70°C。

尺寸：109.2 mm x 25.4 mm x 127 mm。

重量：约 310 克。

通信接口：

1 个 RJ45 10/100 Mbps 以太网端口。

1 个 DH+/RIO 端口。

数据传输速率：最高 5 Mbps。

支持协议：EtherNet/IP、Modbus TCP、DF1、DH485、ASCII 等。

最大节点数：64 个 DH+ 节点。

功能特点

多协议支持：支持 EtherNet/IP 和 DH+ 等多种协议。

高性能：采用高性能处理器，提供高性价比的解决方案。

冗余电源输入：支持冗余电源输入，提高系统可靠性。

内置 Web 服务器：支持远程监控、配置、诊断数据展示及操作模式设置。

灵活的安装方式：支持桌面或 DIN 导轨安装。

高兼容性：兼容多种 Allen-Bradley 设备，如 ControlLogix、CompactLogix、PanelView 等。

应用场景

AN-X2-AB-DHRIO 广泛应用于以下领域：

制造业：生产线自动化、机械设备控制。

能源行业：电力系统监控。

交通运输：铁路信号系统。

建筑自动化：楼宇自控系统。

该模块特别适用于将传统 DH+ 设备集成到现代 EtherNet/IP 网络中，实现设备的无缝升级和数据交换。

AN-X2-AB-DHRIO is a high-performance communication module produced by ProSoft Technology, designed specifically for industrial automation applications, capable of seamlessly connecting Allen Bradley DH+and remote I/O networks with EtherNet/IP networks. technical specifications Working voltage: 24V DC (± 20%). Working temperature range: -40 ° C to+70 ° C. Dimensions: 109.2 mm x 25.4 mm x 127 mm. Weight: Approximately 310 grams. Communication interface: 1 RJ45 10/100 Mbps Ethernet port. 1 DH+/RIO port. Data transmission rate: up to 5 Mbps. Supported protocols: EtherNet/IP, Modbus TCP, DF1, DH485, ASCII, etc. Maximum number of nodes: 64 DH+nodes.

Functional Features Multi protocol support: Supports multiple protocols such as EtherNet/IP and DH+. High performance: Using high-performance processors to provide cost-effective solutions. Redundant power input: Supports redundant power input to improve system reliability. Built in web server: supports remote monitoring, configuration, diagnostic data display, and operation mode settings. Flexible installation method: Supports desktop or DIN rail installation. High compatibility: Compatible with various Allen Bradley devices such as ControlLogix, CompactLogix, PanelView, etc. Application scenarios AN-X2-AB-DHRIO is widely used in the following fields: Manufacturing industry: production line automation, mechanical equipment control. Energy industry: power system monitoring. Transportation: Railway signal system. Building automation: Building automation system. This module is particularly suitable for integrating traditional DH+devices into modern EtherNet/IP networks, achieving seamless device upgrades and data exchange.
