VM600 RPS6U 200-582-500-01X 输出模块

产品概述

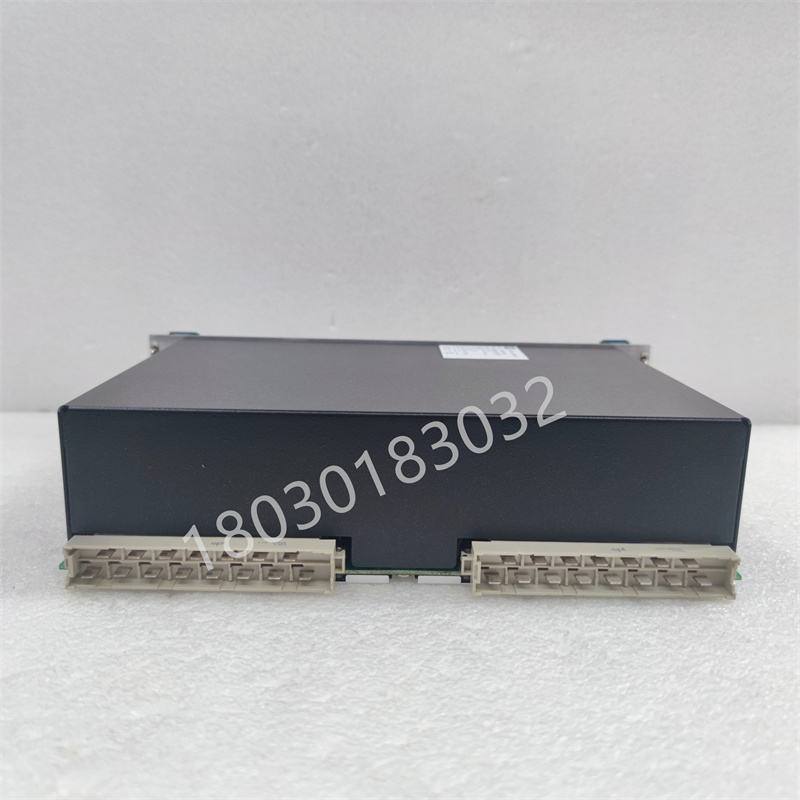

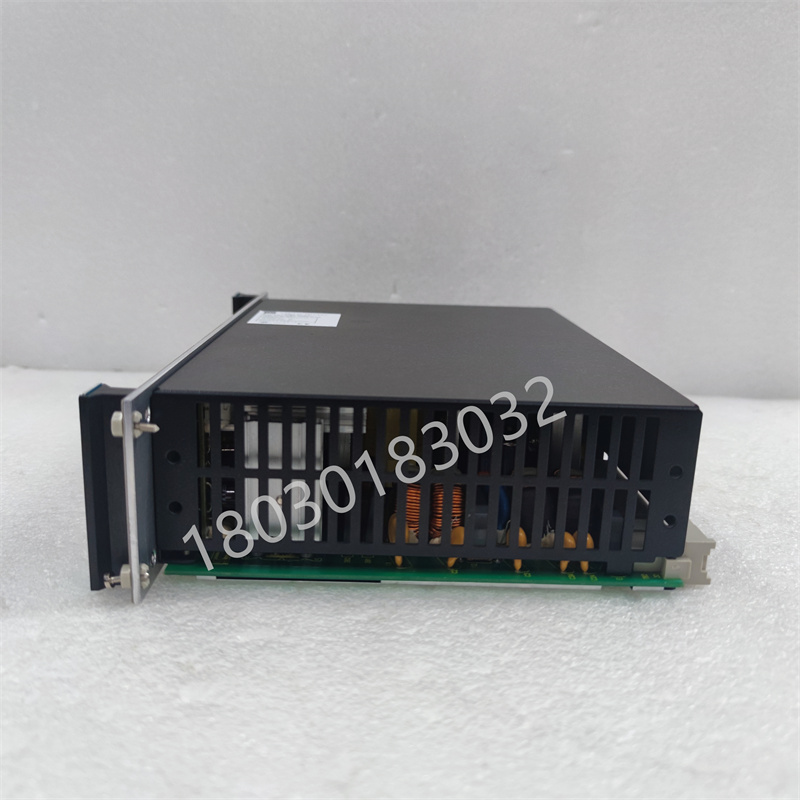

VM600 RPS6U 200-582-500-01X 是一款高性能的冗余电源模块，专为 Vibro-Meter VM600 系列机械保护和状态监测系统设计。它能够为整个 VM600 机架及其内部安装的所有处理卡、I/O 卡、通信卡等提供稳定可靠的直流电源。

技术规格

主要特点和优势

• 高可靠性：提供稳定、低噪声的直流电源，确保所有内部模块的精确运行。
• 支持电源冗余：能够支持双电源冗余配置，当一个 RPS6U 模块发生故障时，另一个模块无缝接管。
• 宽输入电压范围：支持宽范围的 24V DC 输入，使其能够适应不同的现场电源条件。
• 全面的输出保护：内置过压、短路和过载保护机制，有效防止电源模块自身及所连接模块的损坏。
• 高效能设计：高效率的电源转换减少了热量产生，降低了能耗，并允许在较宽的工作温度范围内稳定运行。
• 热插拔功能：支持带电插拔，允许在系统不关机的情况下更换故障模块，最大程度地减少维护时间和停机成本。
• 直观的状态指示：前面板的 LED 指示灯提供清晰的电源状态信息，便于快速诊断和排查故障。
• 坚固耐用的工业级设计：模块设计可在恶劣的工业环境中（如高低温、电磁干扰）可靠运行。

应用领域

• 电力行业：用于发电厂、变电站等电力系统的设备监控。
• 石油化工：用于化工过程中设备的温度、压力、流量等参数的监测。
• 石油和天然气：用于钻井设备、输油管道、炼油装置的温度控制。
• 水处理：用于污水处理厂和净水厂的自动化管理。

VM600 RPS6U 200-582-500-01X output module

product overview

VM600 RPS6U 200-582-500-01X is a high-performance redundant power module designed specifically for the Vibro Meter VM600 series mechanical protection and condition monitoring systems. It can provide stable and reliable DC power for the entire VM600 rack and all processing cards, I/O cards, communication cards, etc. installed inside.

technical specifications

Parameter Name Parameter Value

Product model VM600 RPS6U 200-582-500-01X

Manufacturer Vibro Meter (Meggitt Sensing Systems)

Product type: Redundant power module

Input voltage 24V DC (typical value)

Output voltage+5V DC,+12V DC, -12V DC

Maximum output current+5V DC: up to 50A;+12V DC: up to 8A; -12V DC: up to 4A

Maximum output power 330W

Typical efficiency value of 83% (for 24VDC version)

Ripple and noise<50 mVPEAK-TO-PEAK (all outputs)

Protection functions include overvoltage protection, short circuit protection, and overload protection

Redundant configuration supports dual power redundant configuration

Status indicator light LED indicator light (IN: external power supply is normal; +5V,+12V, -12V: all outputs are normal)

Hot swappable function supports live plugging and unplugging

Working temperature: 0 ° C to+70 ° C (32 ° F to+158 ° F)

Storage temperature -40 ° C to+85 ° C (-40 ° F to+185 ° F)

Relative humidity 0% to 90% (non condensing)

Installation position: Front of VM600 rack, connected to the back panel VME bus

Certified to comply with EC standards, including EMC (Electromagnetic Compatibility)

Main features and advantages

High reliability: Provides stable, low-noise DC power supply to ensure precise operation of all internal modules.

Support power redundancy: It can support dual power redundancy configuration, so that when one RPS6U module fails, the other module seamlessly takes over.

Wide input voltage range: Supports a wide range of 24V DC input, enabling it to adapt to different on-site power conditions.

Comprehensive output protection: Built in overvoltage, short circuit, and overload protection mechanisms effectively prevent damage to the power module itself and connected modules.

High efficiency design: Efficient power conversion reduces heat generation, lowers energy consumption, and allows for stable operation over a wide range of operating temperatures.

Hot swappable function: Supports live plugging, allowing for the replacement of faulty modules without shutting down the system, minimizing maintenance time and downtime costs to the greatest extent possible.

Intuitive status indication: The LED indicator light on the front panel provides clear power status information, making it easy to quickly diagnose and troubleshoot faults.

Durable industrial grade design: The module design can operate reliably in harsh industrial environments such as high and low temperatures, electromagnetic interference.

application area

VM600 RPS6U 200-582-500-01X is widely used in the following fields:

Power industry: used for equipment monitoring in power systems such as power plants and substations.

Petrochemical industry: used for monitoring parameters such as temperature, pressure, and flow rate of equipment in chemical processes.

Oil and natural gas: used for temperature control in drilling equipment, oil pipelines, and refining facilities.

Water treatment: used for automated management of sewage treatment plants and water purification plants.
