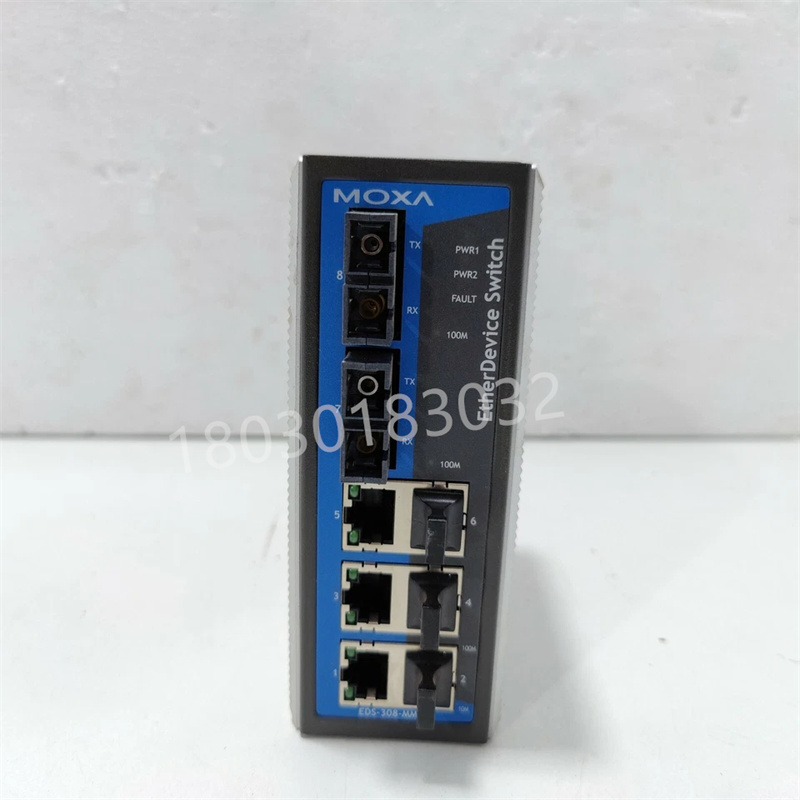

MOXA EDS-308-MM-SC 交换机

产品概述

MOXA EDS-308-MM-SC 是一款高性能的非网管型工业以太网交换机，专为工业自动化、交通监控、能源管理等严苛环境下的网络通信需求而设计。它具备高可靠性、稳定性和抗干扰能力，能够确保网络通信的顺畅运行。

技术规格

端口配置：

6 个 10/100BaseT(X) 以太网端口（RJ45 连接器）。

2 个 100BaseFX 多模光纤端口（SC 连接器）。

传输速率：10/100 Mbps。

电源电压：12-48V DC。

工作温度：0°C 至 60°C。

存储温度：-40°C 至 85°C。

湿度范围：5% 至 95%（无凝结）。

尺寸：53.6 x 135 x 105 mm。

重量：0.63 kg。

防护等级：IP30。

安装方式：DIN 导轨安装或壁挂式安装（需选配安装套件）。

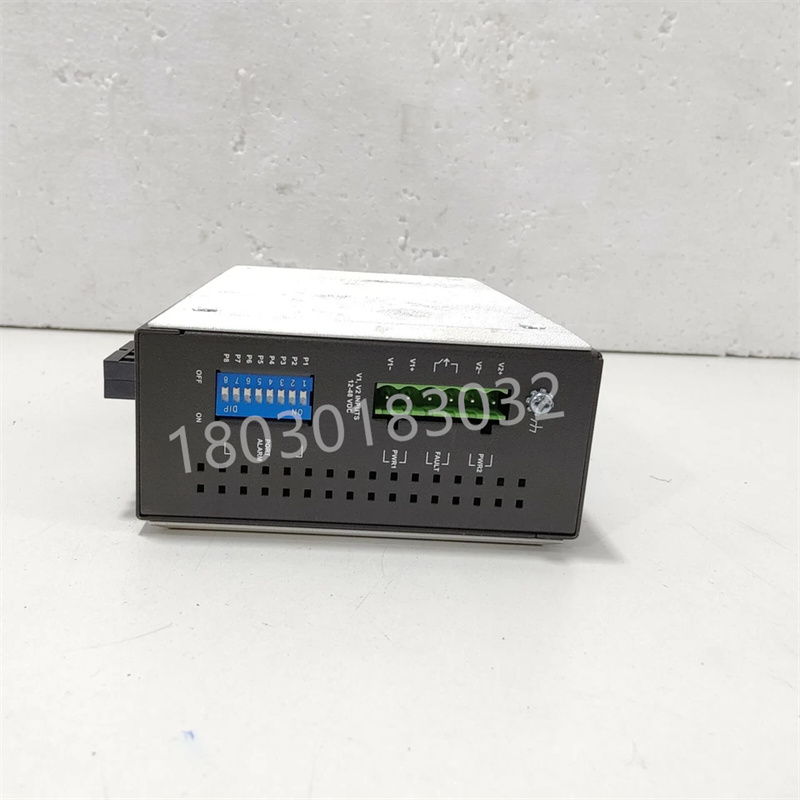

报警功能：1 个继电器输出，用于电源故障或端口中断报警。

传输距离：

多模光纤：2 km。

单模光纤：可达 40 km。

功能特点

高可靠性：设计用于恶劣工业环境，具备冗余双电源输入和过载电流保护。

智能报警：内嵌智能报警功能，帮助系统维护与监控网络运行状况。

多种网络标准支持：支持 IEEE 802.3、IEEE 802.3u 和 IEEE 802.3x。

流量控制：支持 IEEE 802.3x 流量控制。

VLAN 支持：支持 VLAN 功能。

环网冗余：不支持环网冗余。

网管功能：不支持网管功能。

应用场景

工业自动化：在汽车制造、电子制造等行业中，用于连接自动化设备。

交通监控：在铁路沿线部署，实现长距离数据传输。

能源管理：在电力系统中，用于设备之间的网络连接。

智能交通：在交通信号系统中，确保网络的稳定运行。

认证与标准

认证：CE, FCC, UL, cUL, RoHS。

抗冲击与抗振动：符合 IEC 60068-2-27 和 IEC 60068-2-32 标准。

MOXA EDS-308-MM-SC Switch product overview MOXA EDS-308-MM-SC is a high-performance unmanaged industrial Ethernet switch designed specifically for network communication needs in harsh environments such as industrial automation, traffic monitoring, and energy management. It has high reliability, stability, and anti-interference ability, which can ensure the smooth operation of network communication. technical specifications Port configuration: 6 10/100BaseT (X) Ethernet ports (RJ45 connectors). 2 100BaseFX multimode fiber ports (SC connectors). Transmission rate: 10/100 Mbps. Power supply voltage: 12-48V DC. Working temperature: 0 ° C to 60 ° C. Storage temperature: -40 ° C to 85 ° C. Humidity range: 5% to 95% (no condensation). Size: 53.6 x 135 x 105 mm. Weight: 0.63 kg. Protection level: IP30. Installation method: DIN rail installation or wall mounted installation (optional installation kit required). Alarm function: 1 relay output, used for power failure or port interruption alarm. Transmission distance: Multimode fiber: 2 km. Single mode fiber: up to 40 km. Functional Features High reliability: designed for harsh industrial environments, with redundant dual power inputs and overload current protection. Intelligent alarm: Embedded intelligent alarm function, helping the system maintain and monitor the network operation status. Multiple network standards supported: Supports IEEE 802.3, IEEE 802.3u, and IEEE 802.3x. Traffic control: Supports IEEE 802.3x traffic control. VLAN support: Supports VLAN functionality. Ring network redundancy: Ring network redundancy is not supported. Network management function: does not support network management function. Application scenarios Industrial automation: used to connect automation equipment in industries such as automotive manufacturing and electronics manufacturing. Traffic monitoring: deployed along railway lines to achieve long-distance data transmission. Energy management: In the power system, it is used for network connections between devices. Intelligent transportation: Ensure the stable operation of the network in the traffic signal system. Certification and Standards Certification: CE, FCC, UL, cUL, RoHS. Anti impact and anti vibration: Complies with IEC 60068-2-27 and IEC 60068-2-32 standards.
