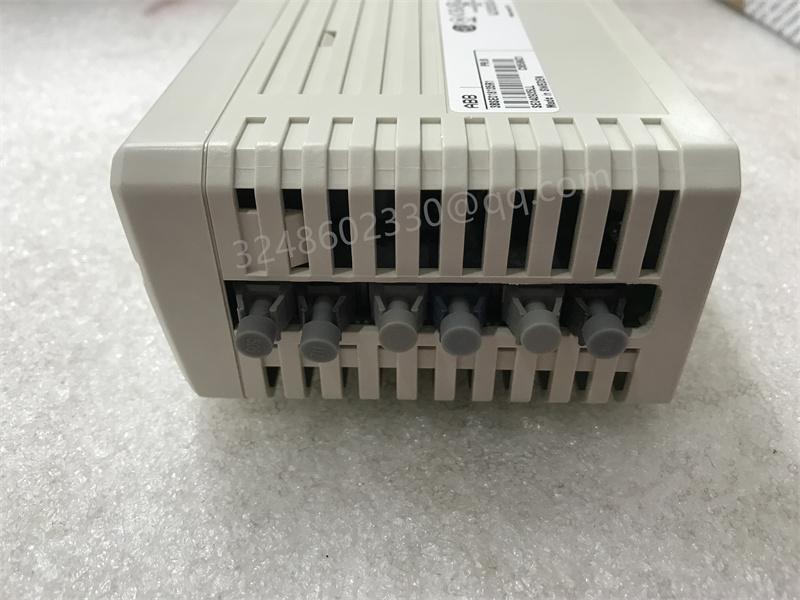

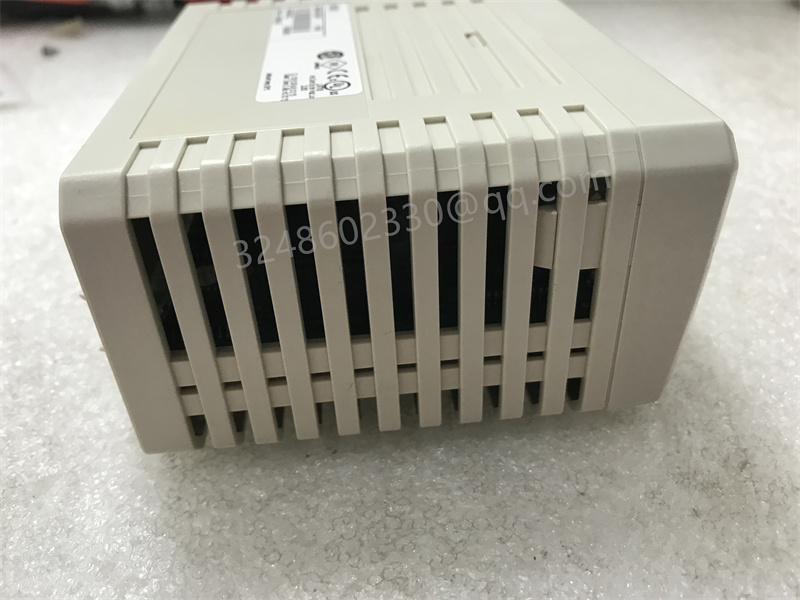

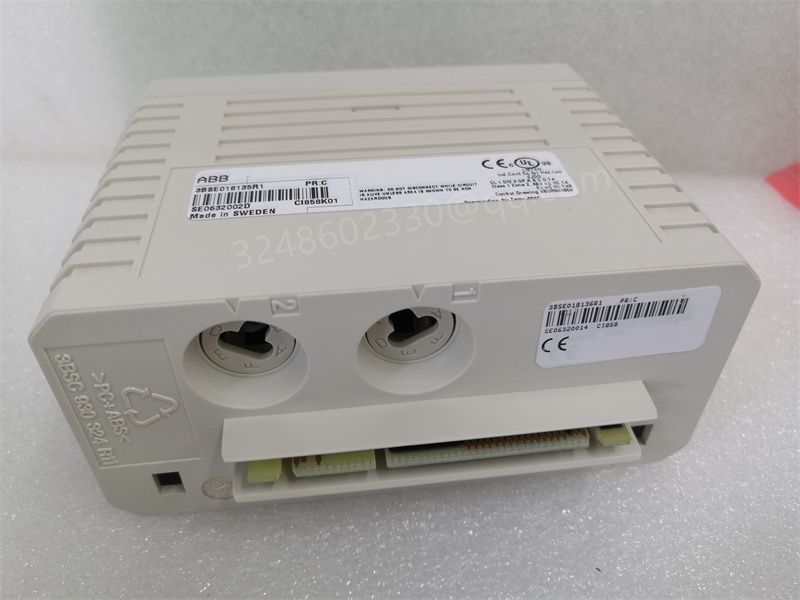

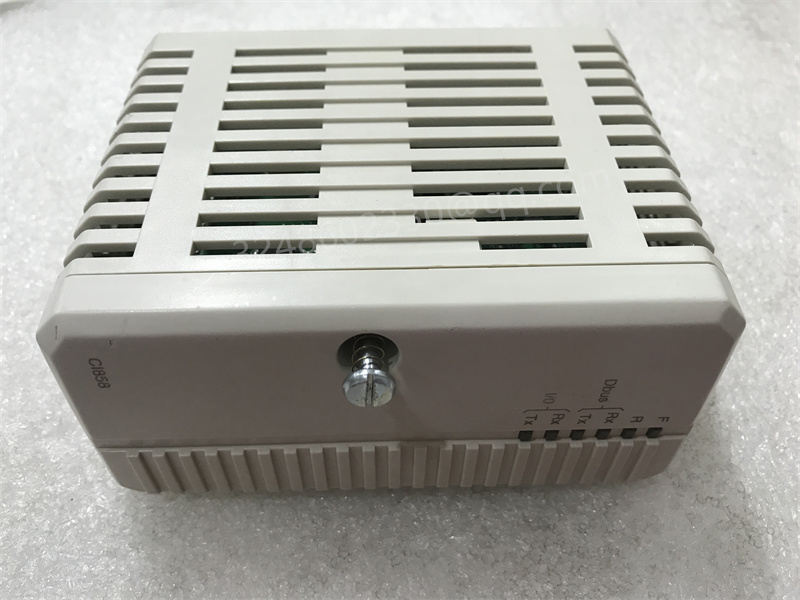

ABB CI858K01 3BSE018135R1 是一款高性能的驱动总线接口模块，广泛应用于工业自动化领域，主要用于连接 ABB 驱动器和控制系统。

技术规格

输入电压：24V DC（部分资料提到范围为 18-56V DC）。

电流：100 mA。

工作温度范围：-40°C 至 +85°C。

存储温度范围：-40°C 至 +85°C。

尺寸：12.4 cm × 7.4 cm × 4.4 cm。

重量：约 0.3 千克（不含基板），含基板后为 0.55 千克。

通信协议：支持 DriveBus、PROFIBUS DP、Modbus RTU、RS-232 等。

最大连接数：支持多达 24 个 ABB 驱动器。

热插拔：支持。

数据传输速率：高达 40,000 kbit/s。

功能特点

高性能：支持高速数据传输，确保通信的快速和可靠性。

高可靠性：适用于工业环境，具有较高的稳定性。

灵活配置：可根据不同应用需求进行配置，支持热插拔，方便维护和扩展。

模块化设计：安装和维护简便，支持与其他设备的无缝集成。

状态监测与故障诊断：提供实时监控模块状态和诊断功能，快速识别和解决运行问题。

应用领域

工业自动化：广泛应用于生产线、包装线等工业自动化系统。

过程控制：用于温度控制、流量控制等过程控制系统。

机器人技术：支持机器人与控制系统之间的数据通信。

能源管理：适用于电力、化工、冶金、机械等行业。

楼宇管理：可用于建筑自动化系统。

ABB ci858k01 3bse018135r1 is a high-performance drive bus interface module, which is widely used in the field of industrial automation, mainly for connecting ABB drives and control systems.

technical specifications

Input voltage: 24V DC (the range mentioned in some documents is 18-56v DC).

Current: 100 mA.

Operating temperature range: -40 ° C to+85 ° C.

Storage temperature range: -40 ° C to+85 ° C.

Size: 12.4 cm × 7.4 cm × 4.4 cm.

Weight: about 0.3KG (without base plate), 0.55kg with base plate.

Communication protocol: support drivebus, PROFIBUS DP, Modbus RTU, RS-232, etc.

Maximum connections: support up to 24 ABB drives.

Hot plug: support.

Data transmission rate: up to 40000 kbit/s.

Functional features

High performance: it supports high-speed data transmission and ensures fast and reliable communication.

High reliability: suitable for industrial environment with high stability.

Flexible configuration: it can be configured according to different application requirements, supports hot plug, and is convenient for maintenance and expansion.

Modular design: easy installation and maintenance, support seamless integration with other equipment.

Condition monitoring and fault diagnosis: provide real-time monitoring module status and diagnosis function to quickly identify and solve operation problems.

application area

Industrial automation: widely used in production lines, packaging lines and other industrial automation systems.

Process control: used for temperature control, flow control and other process control systems.

Robot technology: support data communication between robot and control system.

Energy management: applicable to electric power, chemical industry, metallurgy, machinery and other industries.

Building management: it can be used in building automation system.
