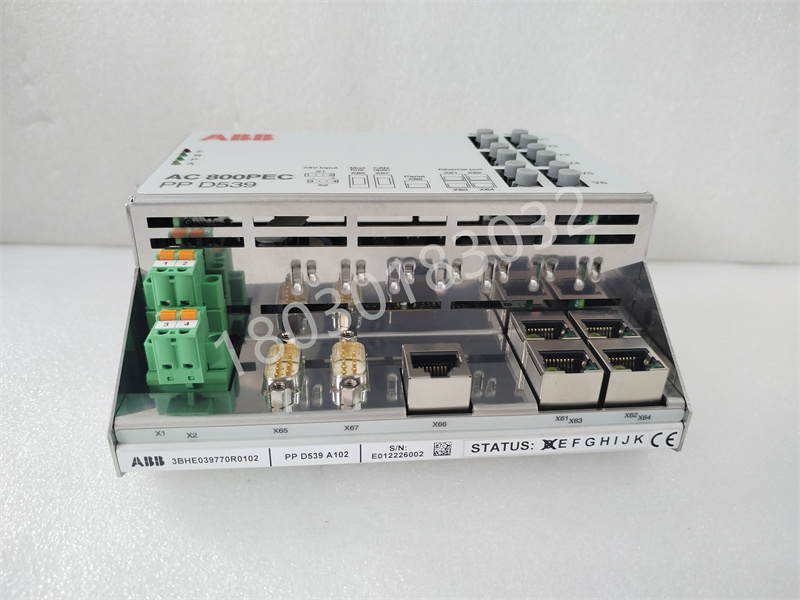

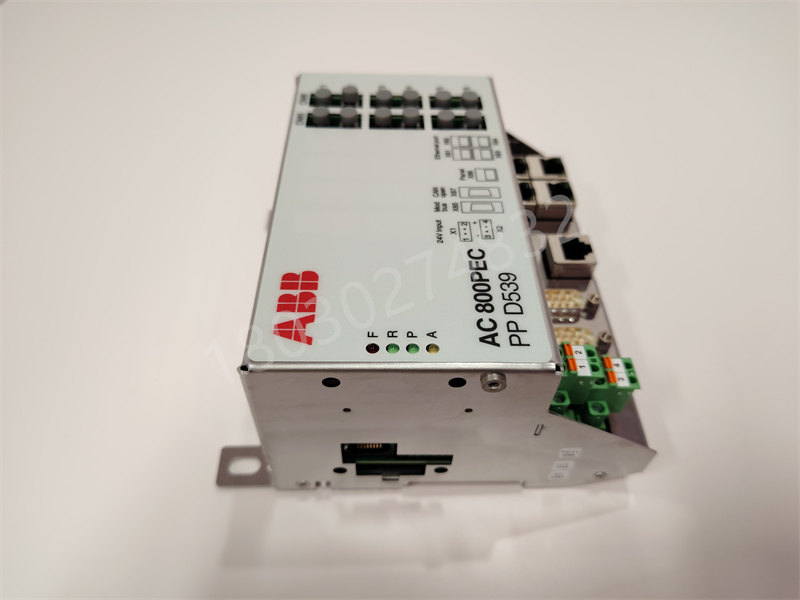

ABB 3BHE039770R0102 PPD539A102 励磁控制器

产品概述

ABB 3BHE039770R0102 PPD539A102 是一款高性能的励磁通讯控制器，专为工业自动化和控制应用设计。

它采用双控制器结构和主动自检机制，提高了系统的可靠性和安全性。

技术规格

额定功率：100 kW。

额定电压：AC 400 V。

额定电流：212 A。

通信接口：以太网、RS232/RS485。

控制精度：±0.1%。

响应速度：小于 10 ms。

尺寸：400 mm x 300 mm x 200 mm。

重量：8 kg。

防护等级：IP65。

功能特点

高性能：采用高性能处理器和先进的控制算法，实现快速、准确的控制响应。

高可靠性：双控制器结构和主动自检机制，提高了系统的可靠性和安全性。

高通用性：支持多种通信接口和多种控制模式，适用于各种工业自动化和控制应用。

多种通信协议：支持以太网、RS232/RS485 等通信协议，方便与上位控制系统和现场设备进行连接。

快速 I/O 系统：覆盖读写操作时间小于 1 毫秒，适用于高速控制需求。

慢速 I/O 系统：支持速度大于 1 毫秒的操作，可根据项目需求添加。

冗余设计：支持双电源冗余和隔离保护。

应用领域

电力系统：用于励磁系统控制、变频器控制和直流输电。

制造业：适用于生产线自动化控制、机械控制和过程控制。

水处理和化工行业：用于泵站、锅炉和水处理设备的自动化控制。

轨道交通：支持轨道交通设备的自动化管理。

可再生能源发电：如风力发电机和光伏发电系统的控制。

建筑自动化：用于 HVAC 和照明控制系统。

ABB 3BHE039770R0102 PPD539A102 Excitation Controller

product overview

ABB 3BHE039770R0102 PPD539A102 is a high-performance excitation communication controller designed specifically for industrial automation and control applications. It adopts a dual controller structure and an active self checking mechanism, which improves the reliability and safety of the system.

technical specifications

Rated power: 100 kW.

Rated voltage: AC 400 V.

Rated current: 212 A.

Communication interface: Ethernet RS232/RS485。

Control accuracy: ± 0.1%.

Response speed: less than 10 ms.

Dimensions: 400 mm x 300 mm x 200 mm.

Weight: 8 kg.

Protection level: IP65.

Functional Features

High performance: Using high-performance processors and advanced control algorithms to achieve fast and accurate control response.

High reliability: The dual controller structure and active self checking mechanism improve the reliability and safety of the system.

High usability: Supports multiple communication interfaces and control modes, suitable for various industrial automation and control applications.

Multiple communication protocols: Supports Ethernet, RS232/RS485 and other communication protocols, making it easy to connect with upper control systems and field devices.

Fast I/O system: Covering read and write operation time less than 1 millisecond, suitable for high-speed control requirements.

Slow I/O system: Supports operations with speeds greater than 1 millisecond, which can be added according to project requirements.

Redundant design: Supports dual power redundancy and isolation protection.

application area

Power system: used for excitation system control, frequency converter control, and direct current transmission.

Manufacturing industry: suitable for production line automation control, mechanical control, and process control.

Water treatment and chemical industry: used for automation control of pump stations, boilers, and water treatment equipment.

Rail Transit: Supports automated management of rail transit equipment.

Renewable energy generation: such as the control of wind turbines and photovoltaic power generation systems.

Building automation: used for HVAC and lighting control systems.
