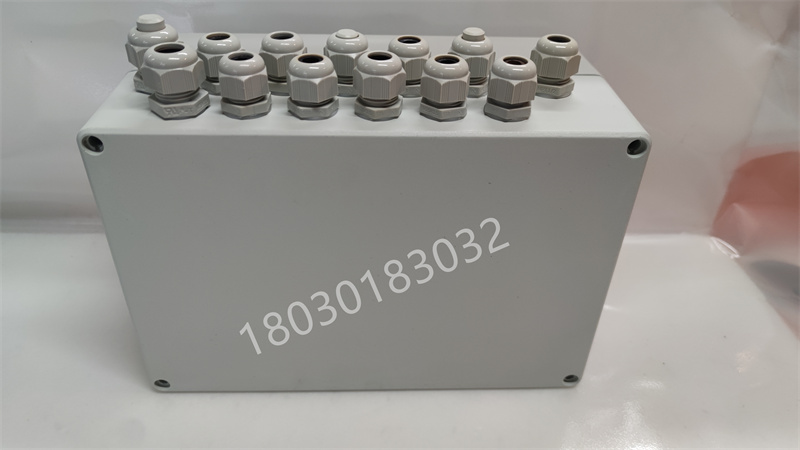

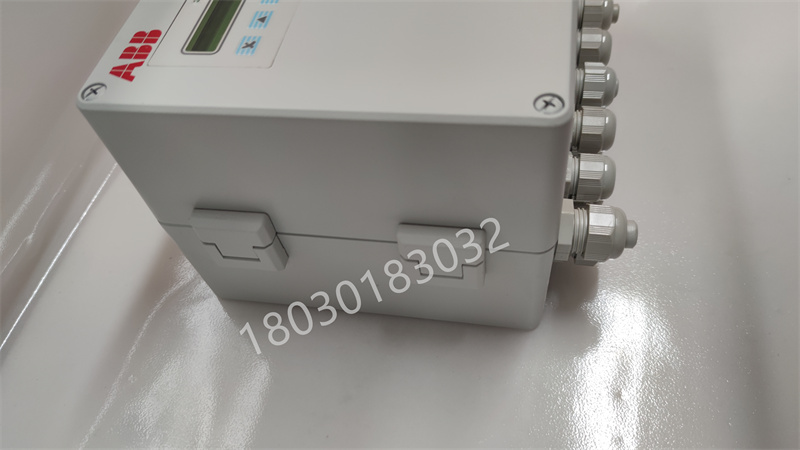

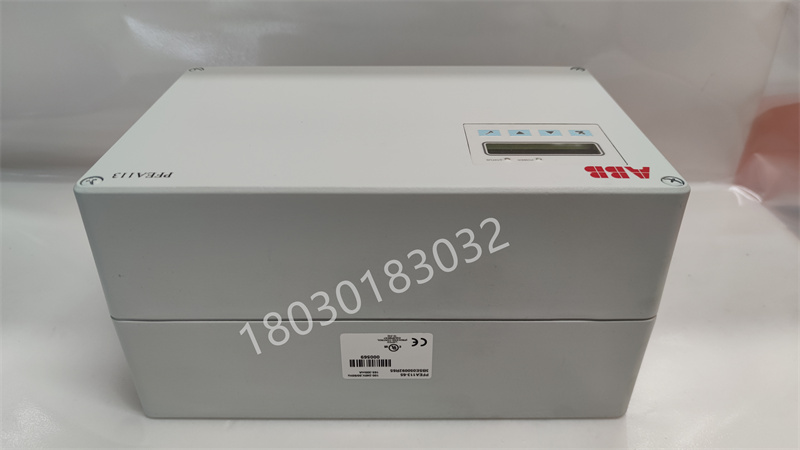

ABB PFEA113-65 3BSE050092R65 张力控制器

产品概述

ABB PFEA113-65 3BSE050092R65 是一款高性能的张力控制器，专为工业自动化和过程控制系统设计。

它能够精确测量和控制卷材或连续材料在生产和加工过程中的张力，确保产品质量和生产效率。

技术规格

• 测量范围：0-200% 满量程。
• 精度：±0.1% 满量程。
• 响应时间：<10 ms。
• 功能：张力设定、张力偏差报警、趋势分析、数据记录等。
• 接口：RS-485, Modbus TCP。
• 防护等级：IP67。
• 外形尺寸：225 mm × 160 mm × 80 mm。
• 重量：约 6.5kg。
• 工作温度范围：-20°C 至 +70°C。
• 存储温度范围：-40°C 至 +85°C。
• 相对湿度：0% 至 90%（非冷凝）。
• 供电电压：DC 24V (18-36V) 或 AC 100(-15%)-240(+10%)V。
• 功耗：12 W。

主要特点和优势

• 高精度测量：采用高精度传感器和先进的信号处理技术，可精确控制张力。
• 快速响应：响应速度快，可及时跟踪张力变化，确保控制精度。
• 多功能性：支持多种功能，例如张力设定、张力偏差报警、趋势分析等，可满足各种张力控制需求。
• 可靠性高：采用坚固耐用的设计和制造工艺，可确保长期可靠运行。
• 易于使用：提供友好的用户界面和多种功能，方便用户操作。
• 多种安装方式：支持标准导轨式安装和适用于更恶劣环境中的封闭式安装 IP65。
• 多语言交互式显示：支持多语言显示和配置键，用于设置不同参数并检查张力测量系统的状态。
• 冗余设计：支持冗余配置，提高系统的可靠性和可用性。
• 自诊断功能：具备自诊断功能，LED 状态指示灯实时显示模块运行状态。

应用领域

• 造纸行业：用于纸张生产过程中的张力控制。
• 电线电缆行业：用于电线电缆生产中的张力控制。
• 纺织行业：用于纺织品生产中的张力控制。
• 包装行业：用于包装材料生产中的张力控制。
• 金属加工：用于金属加工过程中的张力控制。
• 橡胶和塑料：用于橡胶和塑料加工过程中的张力控制。
• 其他工业领域：如化工、石油、天然气等，用于控制卷材或连续材料的张力。

注意事项

• 产品状态：全新，提供一年质保。
• 库存状态：现货库存。
• 发货方式：FedEx 联邦快递、顺丰、德邦。

ABB PFEA113-65 3BSE050092R65 Tension Controller

product overview

ABB PFEA113-65 3BSE050092R65 is a high-performance tension controller designed specifically for industrial automation and process control systems.

It can accurately measure and control the tension of coils or continuous materials during production and processing, ensuring product quality and production efficiency.

technical specifications

Measurement range: 0-200% full scale.

Accuracy: ± 0.1% of full scale.

Response time:<10 ms.

Function: tension setting, tension deviation alarm, trend analysis, data recording, etc.

Interface: RS-485, Modbus TCP.

Protection level: IP67.

Dimensions: 225 mm × 160 mm × 80 mm.

Weight: Approximately 6.5kg.

Working temperature range: -20 ° C to+70 ° C.

Storage temperature range: -40 ° C to+85 ° C.

Relative humidity: 0% to 90% (non condensing).

Power supply voltage: DC 24V (18-36V) or AC 100 (-15%) -240 (+10%) V.

Power consumption: 12 W.

Main features and advantages

High precision measurement: Using high-precision sensors and advanced signal processing technology, tension can be precisely controlled.

Quick response: Fast response speed, able to track tension changes in a timely manner, ensuring control accuracy.

Multifunctionality: Supports multiple functions, such as tension setting, tension deviation alarm, trend analysis, etc., to meet various tension control needs.

High reliability: Adopting a sturdy and durable design and manufacturing process, it can ensure long-term reliable operation.

Easy to use: Provides a user-friendly interface and multiple functions, making it convenient for users to operate.

Multiple installation methods: Supports standard rail installation and IP65 enclosed installation suitable for more harsh environments.

Multi language interactive display: supports multi language display and configuration keys, used to set different parameters and check the status of the tension measurement system.

Redundant design: Supports redundant configuration to improve system reliability and availability.

Self diagnostic function: Equipped with self diagnostic function, the LED status indicator light displays the real-time operation status of the module.

application area

ABB PFEA113-65 3BSE050092R65 is widely used in the following fields:

Paper industry: used for tension control in the paper production process.

Wire and cable industry: used for tension control in wire and cable production.

Textile industry: used for tension control in textile production.

Packaging industry: used for tension control in packaging material production.

Metal processing: used for tension control during metal processing.

Rubber and Plastic: Used for tension control in rubber and plastic processing.

Other industrial fields, such as chemical, petroleum, natural gas, etc., are used to control the tension of coils or continuous materials.

precautions

Product status: Brand new, with a one-year warranty provided.

Inventory status: In stock inventory.

Shipping methods: FedEx, SF Express, Deppon.
