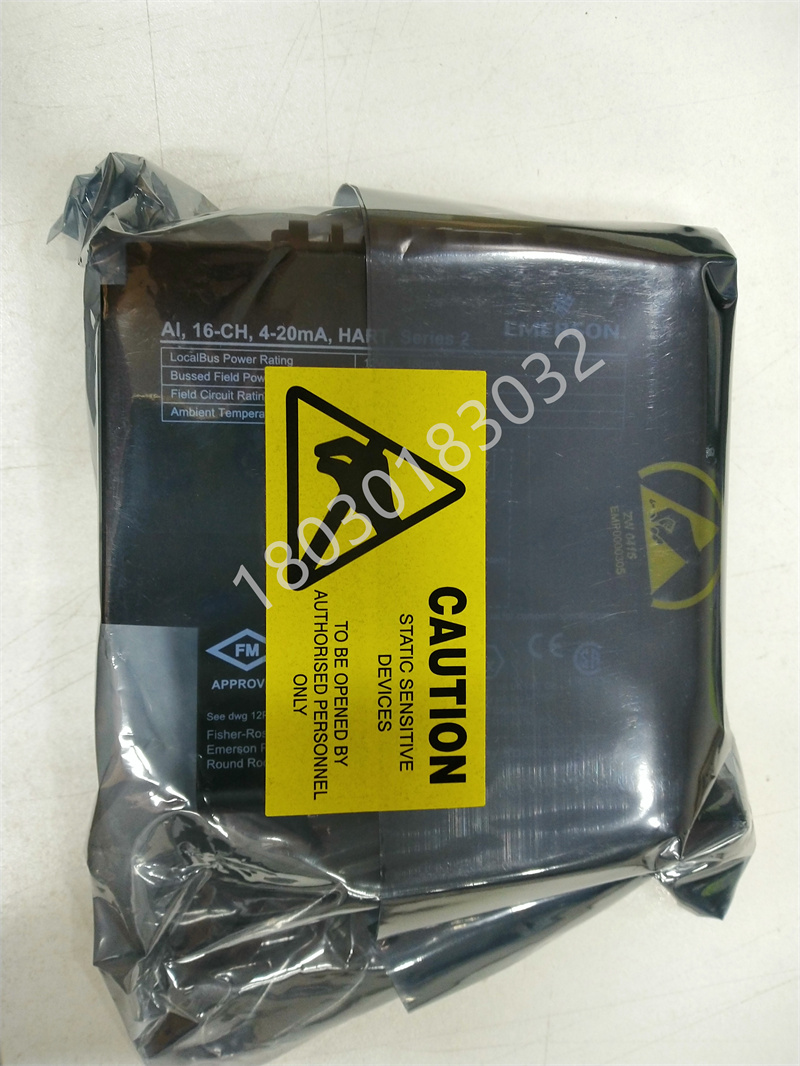

DELTAV系统卡件CE4003S2B9在TSI汽轮机监测系统中作为输入模块，

主要用于采集汽轮机运行过程中的模拟信号，具备高精度、高可靠性和模块化设计等特点，适用于工业环境中的自动化控制场景。

CE4003S2B9是艾默生（Emerson）公司生产的一款模拟输入模块，属于DeltaV系统的一部分。DeltaV系统是一种先进的分布式控制系统（DCS），广泛应用于工业自动化领域，包括汽轮机监测系统。CE4003S2B9模块在TSI汽轮机监测系统中扮演着重要角色，负责采集汽轮机运行过程中的各种模拟信号，如温度、压力、流量等，并将这些信号转换为控制系统能够处理的数字信号。

高可靠性：符合工业级标准，能够在恶劣的工业环境中稳定运行，确保汽轮机监测系统的连续性和可靠性。

故障诊断：当汽轮机出现故障时，CE4003S2B9模块采集的数据可以为故障诊断提供重要线索，帮助工程师快速定位问题并采取相应措施。

The DELTAV system card CE4003S2B9 serves as an input module in the TSI turbine monitoring system,

Mainly used to collect analog signals during the operation of steam turbines, it has the characteristics of high precision, high reliability, and modular design, and is suitable for automation control scenarios in industrial environments.

1、 Product Overview

CE4003S2B9 is an analog input module produced by Emerson and is part of the DeltaV system. The DeltaV system is an advanced distributed control system (DCS) widely used in the field of industrial automation, including turbine monitoring systems. The CE4003S2B9 module plays an important role in the TSI turbine monitoring system, responsible for collecting various analog signals during the operation of the turbine, such as temperature, pressure, flow rate, etc., and converting these signals into digital signals that can be processed by the control system.

2、 Product Features

High precision signal acquisition: The CE4003S2B9 module is equipped with a high-precision A/D converter, which can ensure the accuracy of analog signal acquisition and meet the data accuracy requirements of the steam turbine monitoring system.

Multi channel design: This module supports multi-channel input and can simultaneously collect multiple analog signals, improving monitoring efficiency.

Isolation technology: Adopting inter channel isolation technology to prevent signal interference and improve system stability.

Modular structure: supports hot swapping function, facilitates online maintenance and replacement, and reduces downtime. Meanwhile, modular design also facilitates system expansion and upgrading.

High reliability: Compliant with industrial standards, capable of stable operation in harsh industrial environments, ensuring the continuity and reliability of the turbine monitoring system.

3、 Application scenarios

The CE4003S2B9 module has a wide range of application scenarios in TSI turbine monitoring system, including but not limited to the following aspects:

Steam turbine status monitoring: Real time collection of temperature, pressure, vibration and other parameters of the steam turbine to provide accurate data support for operators and help identify potential problems in a timely manner.

Performance evaluation: Through long-term monitoring and analysis of turbine operating data, evaluate the performance status of the turbine and provide a basis for optimizing operating parameters.

Fault diagnosis: When a turbine malfunctions, the data collected by the CE4003S2B9 module can provide important clues for fault diagnosis, helping engineers quickly locate the problem and take corresponding measures.

4、 Technical parameters (example)

Here are some possible technical parameters (specific parameters may vary by model and version):

Number of input channels: Multiple channels (specific quantity to refer to model specifications)

Input signal range: Supports multiple analog signal input ranges, such as 0-5V, 1-5V, 4-20mA, etc

A/D converter resolution: high resolution (such as 16 bits)

Working temperature range: 0 ℃ to 50 ℃ (with a wider storage temperature range)

Protection level: IP20 or higher

Communication interface: Supports communication interface with DeltaV control system
