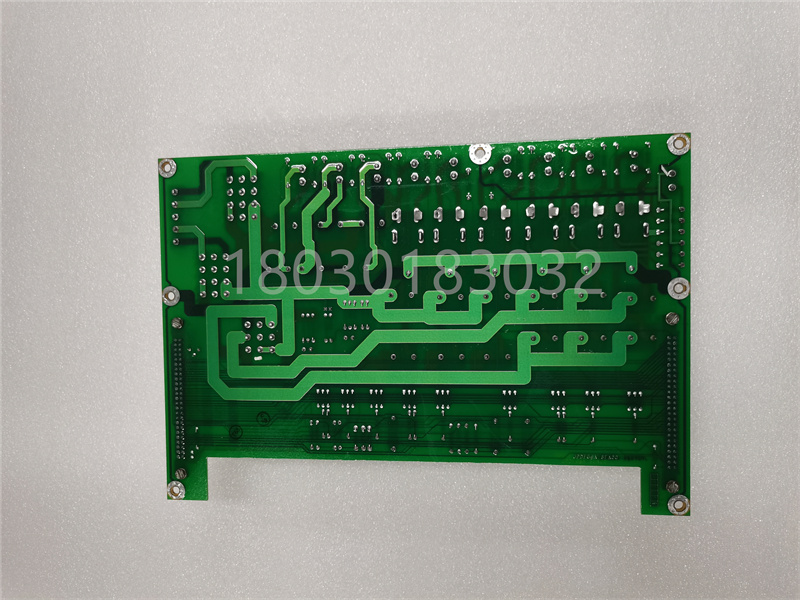

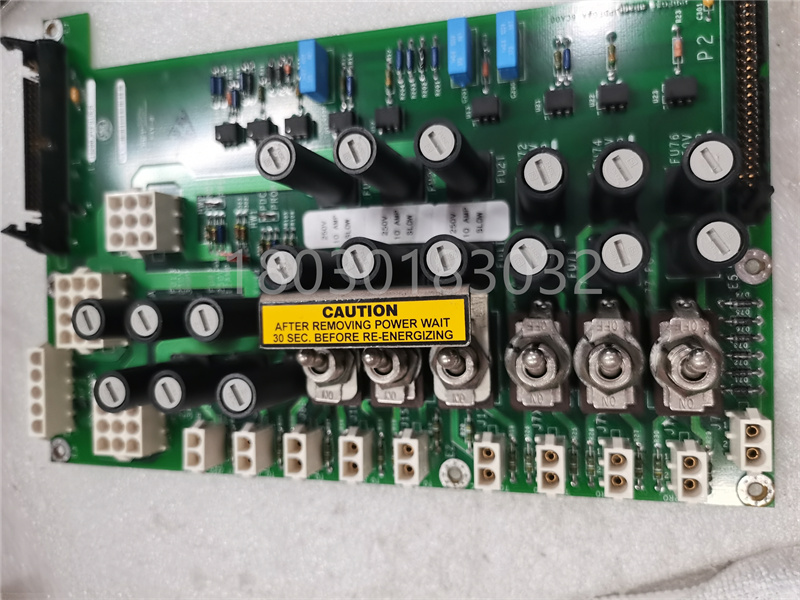

### GE IS200JPDFG1A 电源控制模块

#### 技术规格

- **输入电压**：125V DC。

- **输出电压**：125V DC。

- **额定电流**：30A。

- **输出路数**：9路。

- **浪涌电流**：1000A。

- **工作温度范围**：-40°C至70°C。

- **安装方式**：DIN导轨安装。

- **尺寸**：310mm x 170mm x 85mm。

- **重量**：约6kg。

- **外壳材质**：铝合金。

#### 功能特点

- **高效率**：>90%的效率，可节省能源。

- **低纹波**：输出纹波小于1%，确保系统板的稳定运行。

- **过载保护**：防止模块损坏。

- **短路保护**：防止模块损坏。

- **冗余设计**：支持冗余电源输入，提高系统可靠性。

- **接地故障检测**：能够检测系统接地故障。

#### 应用场景

IS200JPDFG1A广泛应用于各种工业自动化和控制系统，包括但不限于：

- **工业自动化**：如机械控制、过程控制、工艺控制、楼宇自动化。

- **电力系统**：如发电厂、水电站和重型涡轮机管理。

- **能源管理系统**：支持能源系统的监控、分析和优化。

#### 作用与用途

IS200JPDFG1A的主要作用是将125V DC电源分配给其他系统板，这些系统板是工业控制系统的核心部件，用于执行各种控制功能。它广泛应用于机械控制、工艺控制、过程控制、楼宇自动化、电力系统等领域。

###GE IS200JPDFG1A power control module

####Technical specifications

-Input voltage: 125V DC.

-Output voltage: 125V DC.

-Rated current: 30A.

-Number of output channels: 9 channels.

-Surge current * *: 1000A.

-Operating temperature range: -40 ° C to 70 ° C.

-Installation method: DIN rail installation.

-* * Size * *: 310mm x 170mm x 85mm.

-Weight: Approximately 6kg.

-Shell material: Aluminum alloy.

####Functional Features

-High efficiency:>90% efficiency, which can save energy.

-Low Ripple: The output ripple is less than 1%, ensuring stable operation of the system board.

-Overload protection: prevents module damage.

-Short circuit protection: prevents module damage.

-* * Redundant design * *: Supports redundant power input to improve system reliability.

-Grounding fault detection: capable of detecting system grounding faults.

####Application scenarios

IS200JPDFG1A is widely used in various industrial automation and control systems, including but not limited to:

-Industrial automation: such as mechanical control, process control, process control, and building automation.

-* * Power system * *: such as power plants, hydropower stations, and heavy turbine management.

-Energy Management System: Supports monitoring, analysis, and optimization of energy systems.

####Function and Application

The main function of IS200JPDFG1A is to distribute 125V DC power to other system boards, which are the core components of industrial control systems used to perform various control functions. It is widely used in fields such as mechanical control, process control, building automation, and power systems.
