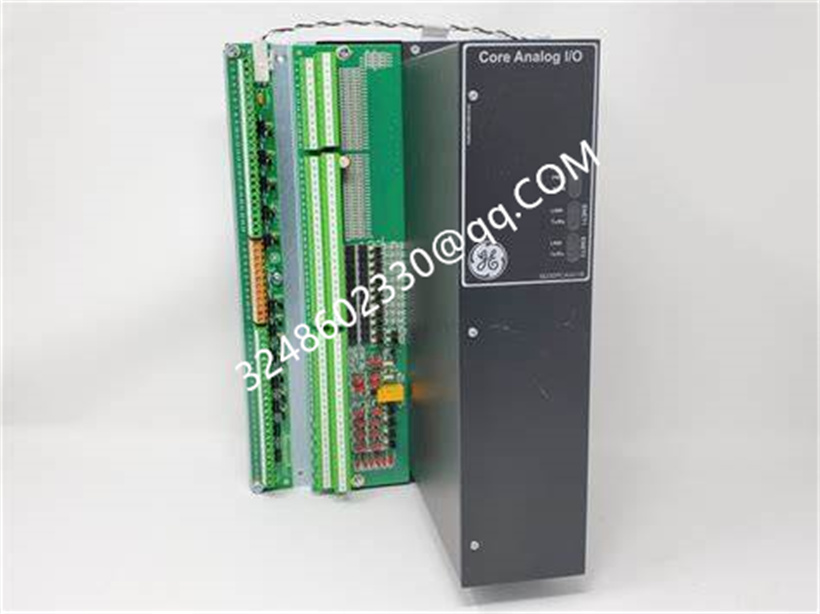

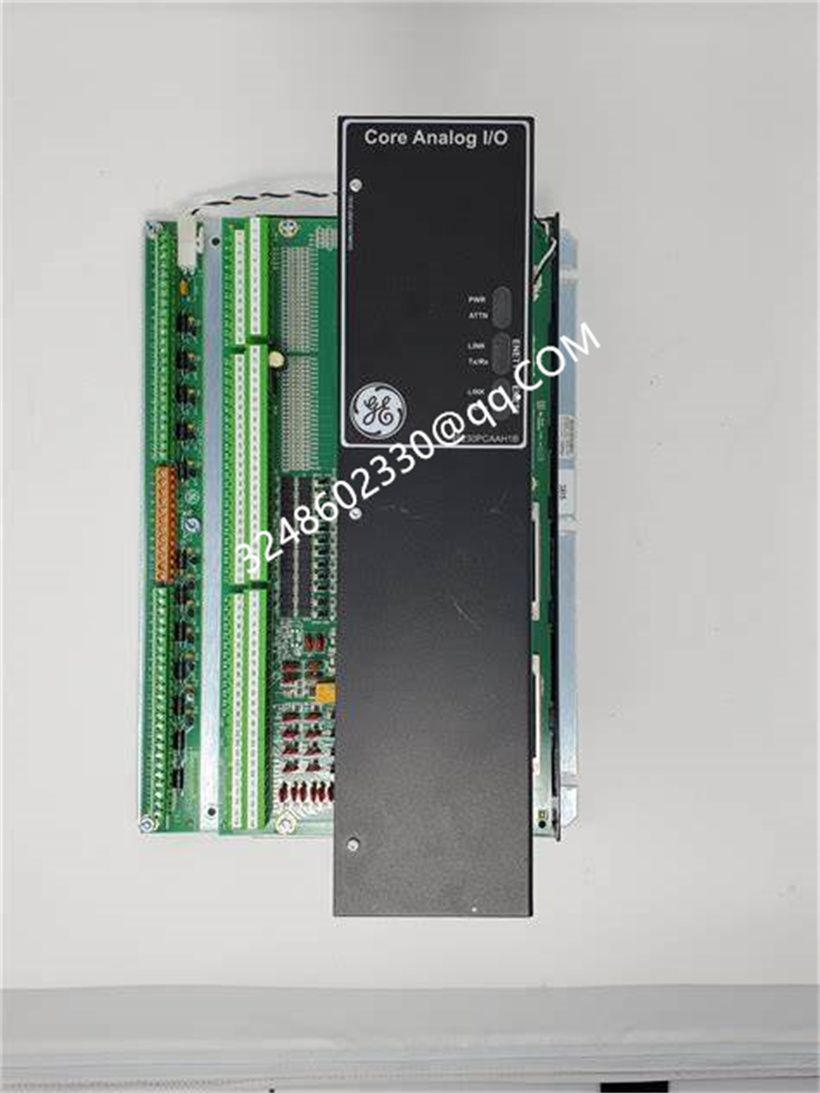

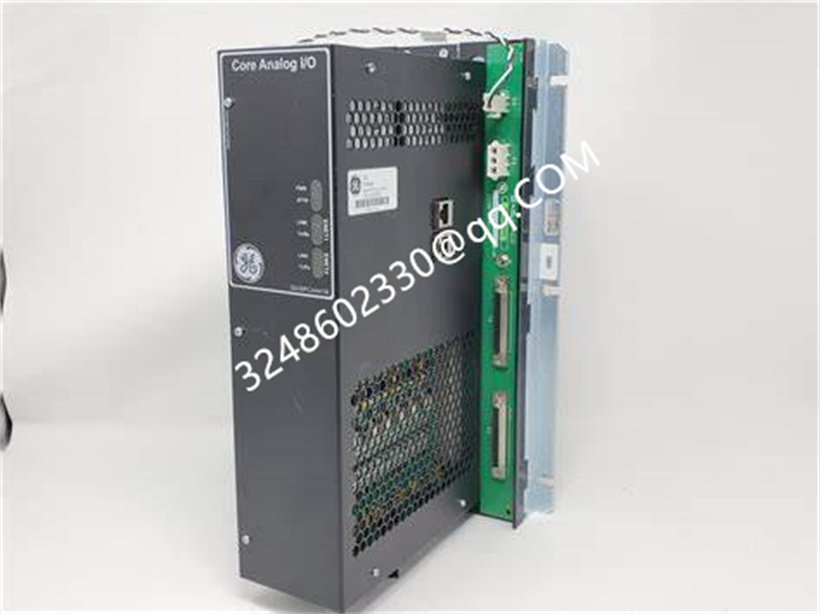

GE IS230PCAAH1A MarkV系列 燃气轮机模块卡件

  GE IS230PCAAH1A 是一款专为 Mark VIe 系统设计的核心模拟模块，广泛应用于燃气轮机控制系统中。该模块由通用电气（GE）开发，主要负责提供燃气轮机运行所需的大部分模拟信号 I/O 功能。具体来说，IS230PCAAH1A 模块能够处理多种类型的输入信号，包括热电偶输入、4-20mA 电流环 I/O、地震输入、线性可变差动变压器（LVDT）励磁和输入、脉冲率输入以及伺服线圈输出。这些功能使得该模块在燃气轮机的自动化控制和监测中发挥着关键作用

  IS230PCAAH1A 模块支持单工、双工和三重模块冗余（TMR）系统配置，以适应不同的燃气轮机控制需求。这种冗余设计不仅提高了系统的可靠性，还确保了在单个模块故障时，系统仍能继续运行。此外，该模块的吞吐量允许在 40 毫秒内操作多达 9 个 21 插槽 VME 机架的 I/O 板，包括数据投票，从而提高了系统的实时性和效率。

  在实际应用中，IS230PCAAH1A 模块通常与核心模拟终端板（TCAS 和 TCAT）配合使用，以提供更广泛的模拟信号处理能力。例如，TCAT 提供了额外的输入端子，使得模块能够处理更多的传感器和执行器信号。这种模块与终端板的集成极大地简化了燃气轮机系统内的模拟信号处理，提高了系统的整体性能。

在市场供应方面，IS230PCAAH1A 模块在市场上有一定的库存，部分供应商提供现货服务，货期为 1 天内发货。这表明该模块在工业自动化领域中具有较高的需求和应用价值。

GE IS230PCAAH1A MarkV Series Gas Turbine Module Card

GE IS230PCAAH1A is a core simulation module designed specifically for Mark VIe systems, widely used in gas turbine control systems. This module was developed by General Electric (GE) and is primarily responsible for providing most of the analog signal I/O functions required for gas turbine operation. Specifically, the IS230PCAAH1A module is capable of processing various types of input signals, including thermocouple input, 4-20mA current loop I/O, seismic input, linear variable differential transformer (LVDT) excitation and input, pulse rate input, and servo coil output. These functions enable the module to play a critical role in the automation control and monitoring of gas turbines

The IS230PCAAH1A module supports simplex, duplex, and triple module redundancy (TMR) system configurations to adapt to different gas turbine control requirements. This redundant design not only improves the reliability of the system, but also ensures that the system can continue to operate in the event of a single module failure. In addition, the throughput of this module allows for the operation of up to 9 I/O boards of 21 slot VME racks, including data voting, within 40 milliseconds, thereby improving the real-time performance and efficiency of the system.

In practical applications, the IS230PCAAH1A module is typically used in conjunction with core analog terminal boards (TCAS and TCAT) to provide a wider range of analog signal processing capabilities. For example, TCAT provides additional input terminals, allowing the module to process more sensor and actuator signals. The integration of this module with the terminal board greatly simplifies the analog signal processing within the gas turbine system and improves the overall performance of the system.

From the specifications, the size of IS230PCAAH1A is 17.71 × 13.77 × 7.87 centimeters, with a working temperature range of -30 to 65 degrees Celsius, suitable for various industrial environments. In addition, the module also has high precision and reliability, using advanced microprocessor technology and digital signal processing technology, which can quickly respond to various changes and demands of gas turbines and achieve precise control.

In terms of market supply, the IS230PCAAH1A module has a certain inventory in the market, and some suppliers provide spot services with a delivery time of 1 day. This indicates that the module has high demand and application value in the field of industrial automation.

The GE IS230PCAAH1A module is a core simulation module designed specifically for Mark VIe systems, with multiple functions and high reliability, widely used in the automation control and monitoring of gas turbines.
