GE IS420ESWBH1A 以太网控制器

产品概述

GE IS420ESWBH1A 是一款高性能的工业以太网/IONet 交换机，专为 GE Mark VIe 系列控制系统设计。它提供高可靠性和高性能的网络连接，适用于工业自动化和过程控制系统。

技术规格

• 端口配置：

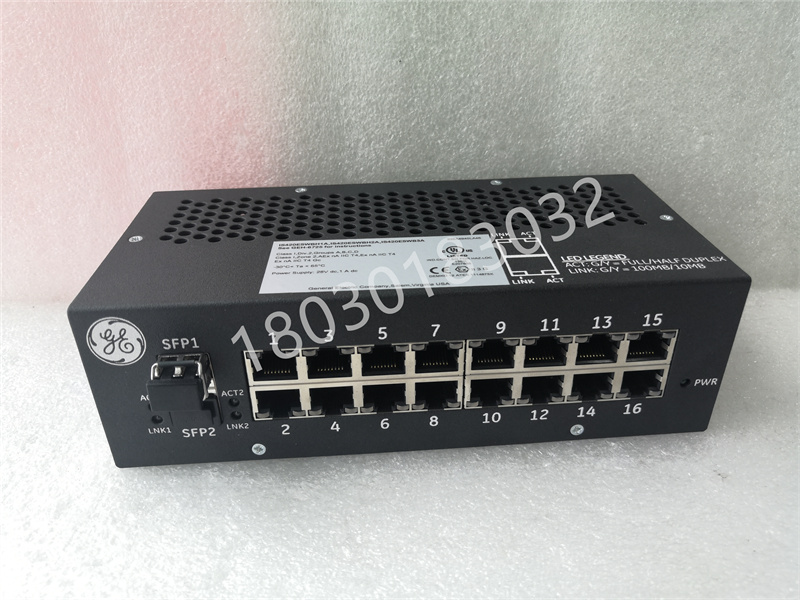

  • 16 个 10/100Base-TX 铜质端口，支持 10Mbps 或 100Mbps 的传输速率，并兼容 RJ-45 接口。
  • 1 个多模式 100Base-FX 光纤端口，支持光纤传输，提高网络传输的可靠性和距离。
• 网络功能：
  • 支持多种网络配置，包括双、单工或 TMR 控制器的控制器冗余配置。
  • 支持多种网络协议，如 802.3、802.3u 和 802.3x，具有自动协商功能，可自动检测网络设备和链路状态。
• 性能指标：
  • 缓冲区大小至少为 256 KB，可存储网络数据包，保证数据传输的连续性和稳定性。
  • 支持 4K MAC 地址，可连接大量网络设备，满足大型工业自动化系统的需求。

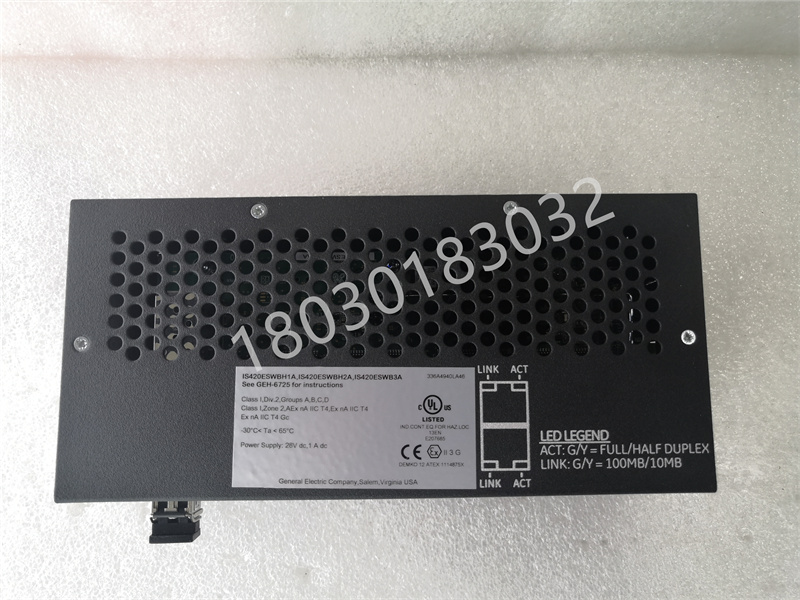

  • 具有 LED 指示灯，可显示链路状态、活动状态、双工状态以及每个端口的速度等信息，便于故障排查和监控。

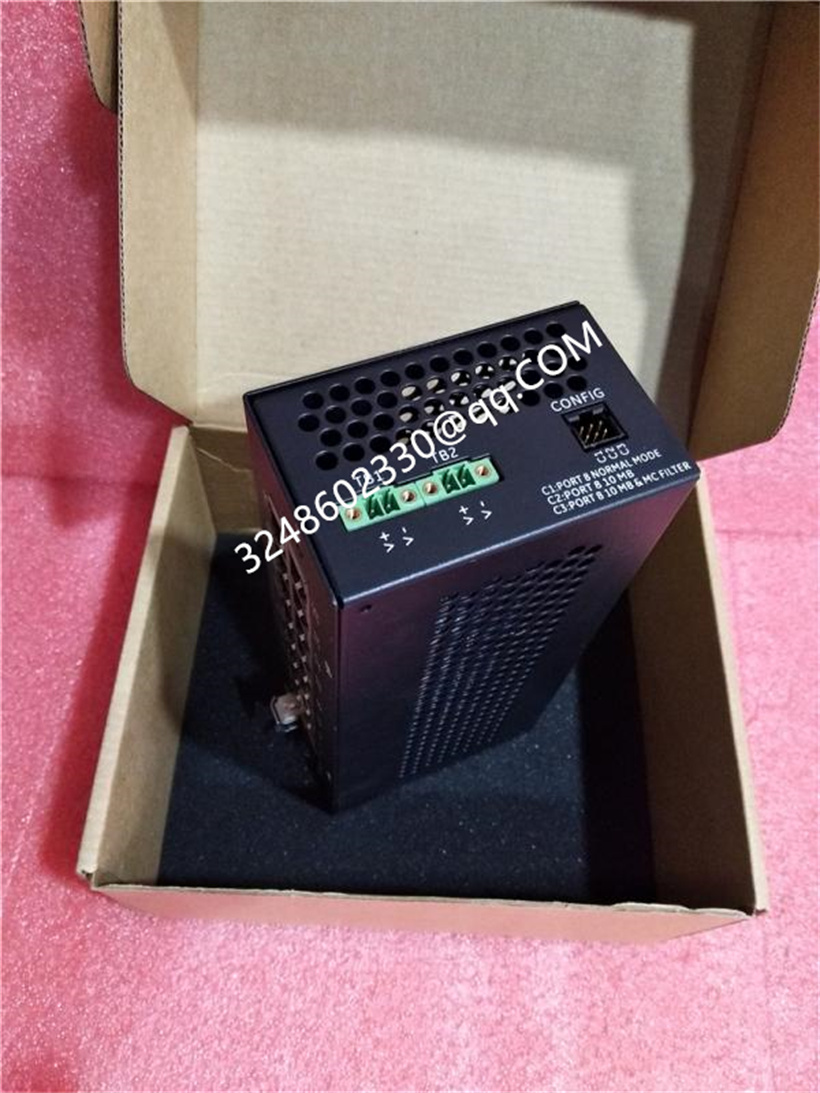

• 电源输入：支持冗余双电源输入，提高了设备的可靠性和稳定性。
• 工作温度范围：-40°C 至 +85°C。
• 存储温度范围：-40°C 至 +85°C。
• 相对湿度范围：5% 至 95%（无凝露）。

主要特点和优势

• 高可靠性：支持冗余双电源输入，提高设备的可靠性和稳定性。
• 多种网络配置：适用于多种网络配置，包括双、单工或 TMR 控制器的控制器冗余配置。
• 易于安装和配置：支持平行或垂直安装选项，可根据实际需求灵活配置。
• 强大的网络功能：支持多种网络协议，具有自动协商功能，可自动检测网络设备和链路状态。
• 高精度信号处理：能够精确处理模拟信号，确保数据的准确性和实时性。

应用领域

• 工业自动化：用于工厂自动化、过程控制等领域，连接 PLC、传感器、执行器、HMI 等工业设备。
• 电力行业：应用于发电厂、变电站等，构建可靠的工业通讯网络。
• 燃气轮机控制系统：作为 Mark VIe 系统 IONet 网络的关键组成部分，用于连接控制模块、I/O 模块和监控系统。
• 蒸汽轮机控制系统：同样适用于 Mark VIeS 安全控制系统，提供可靠的工业以太网连接。

相关产品

• IS420ESWBH2A：与 IS420ESWBH1A 类似，但可能具有不同的光纤端口配置。
• IS420ESWBH3A：ESWB 系列的另一型号，可能在端口数量或类型上有所不同。
• IS420ESWAH3A：ESWA 系列的 IONet/以太网交换机，可能具有不同的硬件形态。
• Mark VIe 控制系统：GE 的燃气轮机和蒸汽轮机控制平台，IS420ESWBH1A 是其网络组件。
• Mark VIeS 安全控制系统：GE 的安全关键控制系统，也使用 ESWB 系列交换机。

GE IS420ESWBH1A Ethernet Controller

product overview

GE IS420ESWBH1A is a high-performance industrial Ethernet/IONet switch designed specifically for GE Mark VIe series control systems. It provides high reliability and high-performance network connectivity, suitable for industrial automation and process control systems.

technical specifications

Port configuration:

16 10/100Base TX copper ports, supporting transmission rates of 10Mbps or 100Mbps, and compatible with RJ-45 interface.

1 multi-mode 100Base FX fiber optic port, supporting fiber optic transmission, improving the reliability and distance of network transmission.

Network function:

Supports multiple network configurations, including redundant controller configurations for dual, simplex, or TMR controllers.

Supports multiple network protocols, such as 802.3, 802.3u, and 802.3x, with automatic negotiation function that can automatically detect network devices and link status.

Performance indicators:

The buffer size should be at least 256 KB, which can store network packets and ensure the continuity and stability of data transmission.

Supports 4K MAC addresses and can connect a large number of network devices to meet the needs of large-scale industrial automation systems.

Equipped with LED indicator lights, it can display information such as link status, activity status, duplex status, and speed of each port for easy troubleshooting and monitoring.

Power input: Supports redundant dual power input, improving the reliability and stability of the device.

Working temperature range: -40 ° C to+85 ° C.

Storage temperature range: -40 ° C to+85 ° C.

Relative humidity range: 5% to 95% (no condensation).

Main features and advantages

High reliability: Supports redundant dual power input to improve equipment reliability and stability.

Multiple network configurations: Suitable for multiple network configurations, including redundant controller configurations for dual, simplex, or TMR controllers.

Easy to install and configure: Supports parallel or vertical installation options, and can be flexibly configured according to actual needs.

Powerful network functionality: supports multiple network protocols, has automatic negotiation function, and can automatically detect network devices and link status.

High precision signal processing: capable of accurately processing analog signals to ensure data accuracy and real-time performance.

application area

GE IS420ESWBH1A is widely used in the following fields:

Industrial automation: used in fields such as factory automation and process control, connecting industrial equipment such as PLCs, sensors, actuators, and HMIs.

Power industry: applied to power plants, substations, etc., to build reliable industrial communication networks.

Gas turbine control system: As a key component of the Mark VIe system IONet network, it is used to connect control modules, I/O modules, and monitoring systems.

Steam turbine control system: also applicable to Mark VIeS safety control system, providing reliable industrial Ethernet connection.

Related products

IS420ESWBH2A: Similar to IS420ESWBH1A, but may have different fiber port configurations.

IS420ESWBH3A: Another model of the ESWB series, which may differ in the number or type of ports.

IS420ESWAH3A: ESWA series IONet/Ethernet switches may have different hardware forms.

Mark VIe control system: GE's gas turbine and steam turbine control platform, with IS420ESWBH1A as its network component.

Mark VIeS Safety Control System: GE's safety critical control system also uses ESWB series switches.
