A06B-6222-H045 发那科伺服驱动器

A06B-6222-H045 Fanuc servo drive

1、 Product positioning and functionality

A06B-6222-H045 is a high-performance servo drive launched by FANUC, designed specifically for industrial automation scenarios, with the following core functions:

High precision motion control

By using a built-in encoder to achieve micrometer level positioning accuracy, it is suitable for scenarios that require precise control such as CNC machine tools and robot joints.

Support wide range speed regulation from low speed to high speed, adapting to different processing needs.

Dynamic response optimization

Quickly respond to control instructions, shorten processing cycles, and improve production efficiency.

Using vector control or field oriented control (FOC) algorithms to accurately adjust torque, speed, and position.

Reliability and stability

The motor has a built-in regenerative braking function, which recovers energy during deceleration or stopping, improving system energy efficiency.

Adopting high-quality materials and advanced manufacturing processes to adapt to harsh industrial environments.

2、 Typical faults and solutions

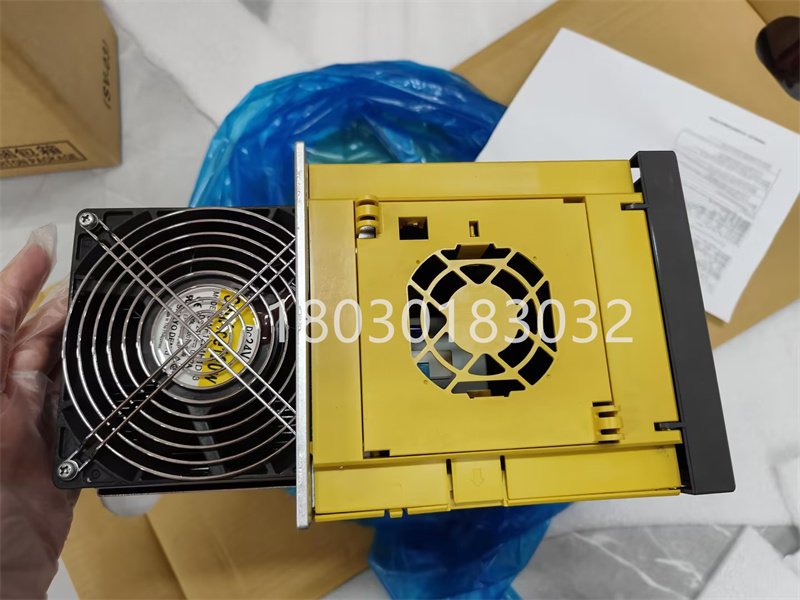

1. Alarm code 444 (cooling fan failure)

reason:

Fan damage (prolonged operation or improper use).

Power supply issue (abnormal or unstable voltage).

Dust accumulation leads to poor heat dissipation.

Solution:

ｒｅｐｌａｃｅ the fan with the same model and clean the internal dust.

Check the stability of the power supply and repair or ｒｅｐｌａｃｅ the power supply if necessary.

Regular maintenance (such as cleaning the cooling system once a quarter).

2. Alarm code 445 (system configuration or communication failure)

reason:

The system software version is outdated or has bugs.

Hardware malfunction (such as memory module or CPU board damage).

Communication line interference or improper parameter settings.

Solution:

ｕｐｄａｔｅ the system software to the latest version.

Check hardware connections and ｒｅｐｌａｃｅ faulty components.

Change parameter 3117 # 1 to 1 and review the diagnostic code again.

3. Alarm code 443 (AC input circuit fault)

reason:

The high output impedance of the AC power supply caused the fuse to melt.

Poor inverter transistor module, rectifier diode or thyristor.

Surge absorber or capacitor malfunction.

Solution:

Check the AC input voltage (R and S correspond to 220V, T phase abnormality requires troubleshooting the power supply).

ｒｅｐｌａｃｅ faulty fuses or power electronic modules.

Regularly check the power supply and connection status.

3、 Application scenarios and advantages

CNC

Drive the worktable, tool feed and other moving parts to achieve high-precision machining.

Advantages: Shorten processing cycle and improve surface quality.

industrial robot

As a joint drive motor, it supports high-speed and high response motion control.

Advantages: Improve robot trajectory accuracy and repeat positioning capability.

Precision assembly and packaging machinery

Used for assembling small parts or transporting high-speed packaging materials.

Advantages: Reduce defect rate and improve production pace.

4、 Maintenance and selection suggestions

Routine maintenance

Regular inspection: Check whether the motor connection and fixation are firm and prevent dust from entering.

Lubrication and temperature monitoring: Regularly lubricate bearings according to the environment, monitor motor temperature to prevent overheating.

Electrical inspection: Check for loose or damaged wiring and electrical connections.

5、 Industry evaluation

A06B-6222-H045 is widely recognized in the field of industrial automation for its high precision, high reliability, and easy maintenance. User feedback shows:

Advantages: Fast dynamic response, low failure rate, and support for long-term stable operation.

Improvement space: Some users hope to further optimize the heat dissipation design and reduce the temperature during long-term high load operation.
