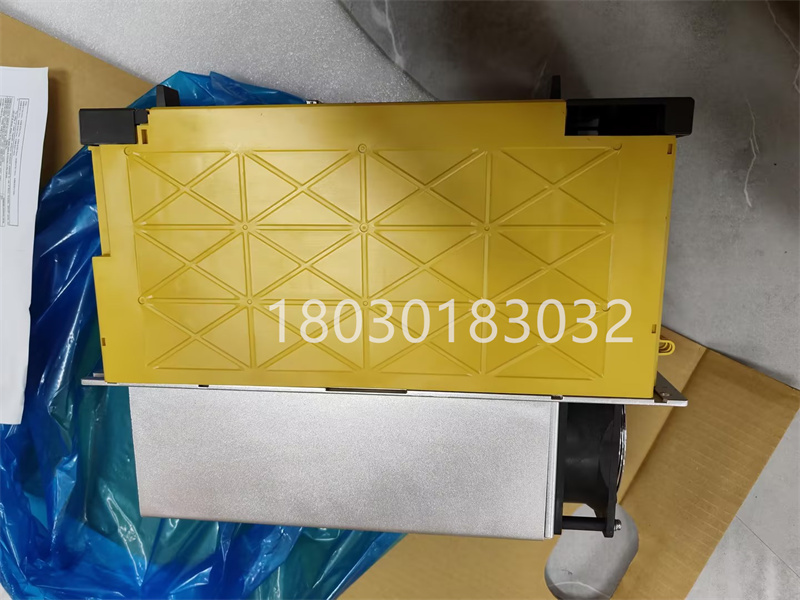

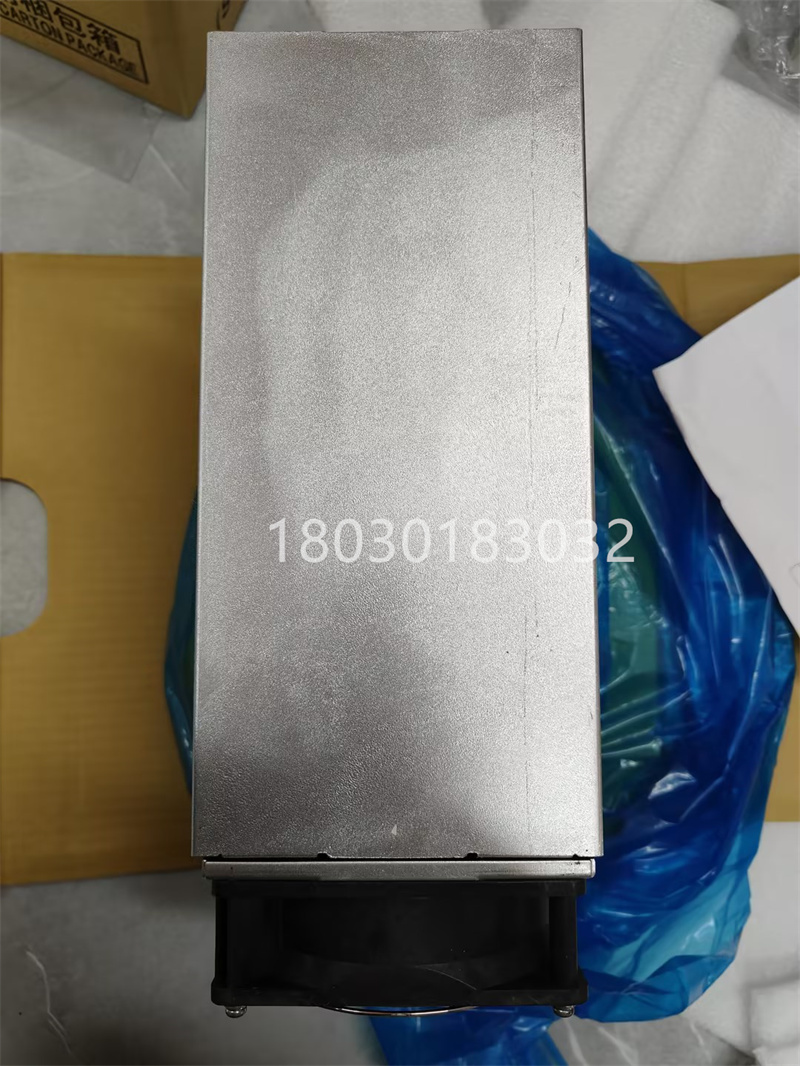

FANUC A06B-6240-H209 发那科驱动器核心解析

FANUC A06B-6240-H209 Fanuc Drive Core Analysis

1、 Product positioning and functionality

A06B-6240-H209 is a dual axis spindle servo drive launched by FANUC, designed specifically for high-end CNC machine tools, industrial robots, and precision machining equipment

high precision control

By using vector control and field oriented control (FOC) algorithms, precise adjustment of torque, speed, and position can be achieved, with a positioning accuracy of ± 0.001mm.

Supporting a 24 bit high-resolution encoder interface, the encoder feedback accuracy has been improved to 1/16777216 pulses per revolution, meeting the requirements of nanometer level positioning.

Wide dynamic response range

The servo frequency range is 0Hz-550Hz, and the spindle frequency range is 1Hz-1.5kHz. It supports millisecond response speed and is suitable for high-speed machining scenarios.

Multiple protection mechanisms

Built in overload protection, overvoltage protection, short circuit protection, over temperature protection, and encoder disconnection detection ensure stable system operation.

Compatibility and Scalability

Compatible with Fanuc Alpha IF and Alpha IS series high-resolution servo motors (such as Alpha IF: 12/3000, 22/3000; αis:8/4000、 12/4000, etc.).

Support multi-mode switching of position, speed, and torque to meet different processing requirements.

2、 Technical parameters and specifications

The input voltage is three-phase 283V-339V (with a current of 39A at 283V), and the control circuit power supply is single-phase 200V-240V (with an allowable deviation of -15% to+10%).

The maximum output voltage is 240V, the rated output is 200V (three-phase), and the spindle frequency is 1Hz-1.5kHz.

Control modes include position control, speed control, and torque control (supporting multi-mode switching).

The feedback interface is compatible with incremental encoders, absolute encoders, and rotary transformers, and supports high-resolution encoder interfaces.

The working environment temperature ranges from 0 ° C to 55 ° C, with a protection level of IP20 (dustproof design, suitable for installation inside control cabinets).

The external dimensions are 38cm in height, 6cm in width, and 27.2cm in length, with a weight of approximately 4kg. The compact design saves installation space.

Certification standards include CE certification, UL certification, and RoHS certification.

3、 Typical application scenarios

CNC machine tool spindle drive

Drive the worktable, tool spindle and other moving parts to achieve high-precision milling, turning, drilling and other machining.

Advantages: Shorten processing cycle, improve surface quality, and reduce scrap rate.

Joint control of industrial robots

As a robot joint drive motor, it supports high-speed and high response motion control.

Advantages: Improve robot trajectory accuracy and repeatability, adapt to complex tasks such as assembly, welding, and spraying.

Precision positioning platform

Used for assembling small parts or transporting high-speed packaging materials.

Advantages: Reduce defect rate and improve production pace.

4、 Troubleshooting and maintenance recommendations

1. Common faults and solutions

Alarm 1: Internal cooling fan of the drive stops

Reason: foreign object blockage in the fan, loose connector, or damaged fan.

Solution: Clean up foreign objects in the fan, check the connector, and ｒｅｐｌａｃｅ the fan or driver (SVM).

Alarm 2: Driver control power supply low voltage

Reason: Insufficient input voltage or abnormal 24V power supply.

Solution: Confirm that the three-phase input voltage is ≥ 85% of the rated voltage, and check the 24V power supply and connectors (CXA2A/B).

Alarm 5: Low voltage in the DC link of the frequency converter

Reason: Loose DC link cable or module failure.

Solution: Tighten the cable screws and ｒｅｐｌａｃｅ the faulty module or driver.

Alarm 6: Inverter overheating

Reason: Motor overload, cooling system malfunction, or high ambient temperature.

Solution: Reduce motor load, inspect fans and filters, and improve heat dissipation conditions.

2. Daily maintenance suggestions

Regular inspection: Clean the dust inside the drive every quarter and check the operation status of the fan.

Electrical inspection: Check the wiring and electrical connections annually for looseness or damage.

Temperature monitoring: Monitor the driver temperature through the system to avoid overheating and performance degradation.

5、 Industry evaluation and purchasing suggestions

user feedback

Advantages: High precision, high reliability, fast dynamic response, and support for long-term stable operation.

Improvement space: Some users hope to further optimize the heat dissipation design and reduce the temperature during long-term high load operation.
