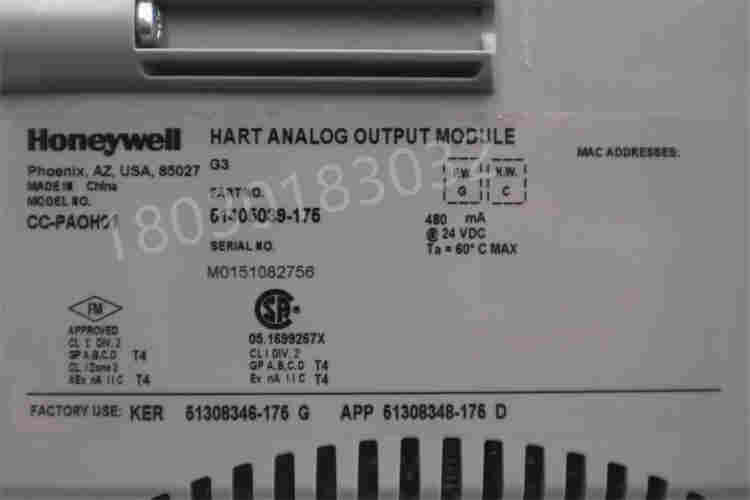

Honeywell CC-PAOH01 输入输出模块

产品概述

Honeywell CC-PAOH01 是一款高性能的模拟输出模块，专为工业自动化控制系统设计。它支持 HART 通信协议，能够接收模拟信号输入并将其转换为数字信号输出。

技术规格

输入/输出类型：模拟输出，支持 HART 通信协议。

输出通道数：16路。

输出范围：4-20mA。

工作电压：24V DC。

工作温度范围：-10°C 至 50°C。

尺寸：127mm x 100mm x 50mm。

重量：0.2kg。

精度：±0.1% F.S。

通信协议：HART。

功能特点

高精度输出：采用 16 位 DAC 芯片，确保高精度信号传输。

多种输出选项：支持 4-20mA 和 0-10V 输出。

冗余选项：支持冗余配置，提高系统可靠性。

自诊断功能：具备广泛的自诊断功能。

非易燃输出：符合 Class 1 Div 2, Zone 2 标准。

应用领域

工业自动化：用于需要高精度控制和监控的工业环境。

过程控制：在化工、能源、水处理等行业中，用于监测和控制过程参数。

机械控制：在机械制造中，用于控制机床、机器人等设备。

注意事项

安装环境：确保模块安装在无尘、干燥且通风良好的环境中，避免高温、高湿或腐蚀性气体。

电气连接：正确连接电源和信号线，避免接线错误导致的模块损坏或性能下降。

Honeywell CC-PAOH01 模拟输出模块凭借其高性能、多功能和高可靠性，成为工业自动化和控制系统中的重要组件。

Honeywell CC-PAOH01 Input/Output Module

product overview

Honeywell CC-PAOH01 is a high-performance analog output module designed specifically for industrial automation control systems. It supports the HART communication protocol and is capable of receiving analog signal inputs and converting them into digital signal outputs.

technical specifications

Input/output type: Analog output, supports HART communication protocol.

Number of output channels: 16.

Output range: 4-20mA.

Working voltage: 24V DC.

Working temperature range: -10 ° C to 50 ° C.

Size: 127mm x 100mm x 50mm.

Weight: 0.2kg.

Accuracy: ± 0.1% F.S.

Communication protocol: HART.

Functional Features

High precision output: Using a 16 bit DAC chip to ensure high-precision signal transmission.

Multiple output options: Supports 4-20mA and 0-10V output.

Redundancy option: Supports redundant configuration to improve system reliability.

Self diagnostic function: It has a wide range of self diagnostic functions.

Non flammable output: Complies with Class 1 Div 2, Zone 2 standards.

application area

Industrial automation: used in industrial environments that require high-precision control and monitoring.

Process control: Used in industries such as chemical, energy, and water treatment to monitor and control process parameters.

Mechanical control: In mechanical manufacturing, it is used to control equipment such as machine tools and robots.

precautions

Installation environment: Ensure that the module is installed in a dust-free, dry, and well ventilated environment, avoiding high temperatures, high humidity, or corrosive gases.

Electrical connection: Connect power and signal lines correctly to avoid module damage or performance degradation caused by wiring errors.

The Honeywell CC-PAOH01 analog output module has become an important component in industrial automation and control systems due to its high performance, versatility, and high reliability.
