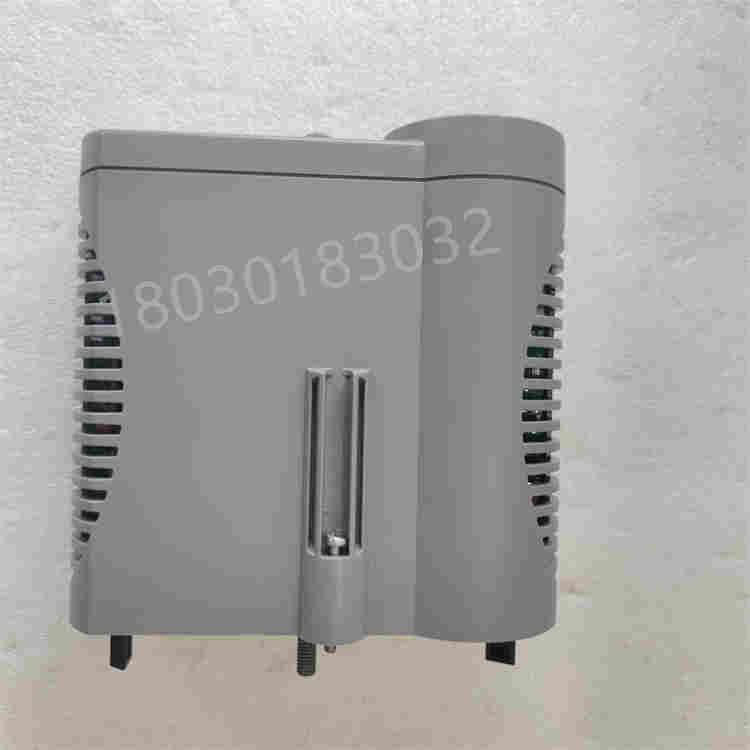

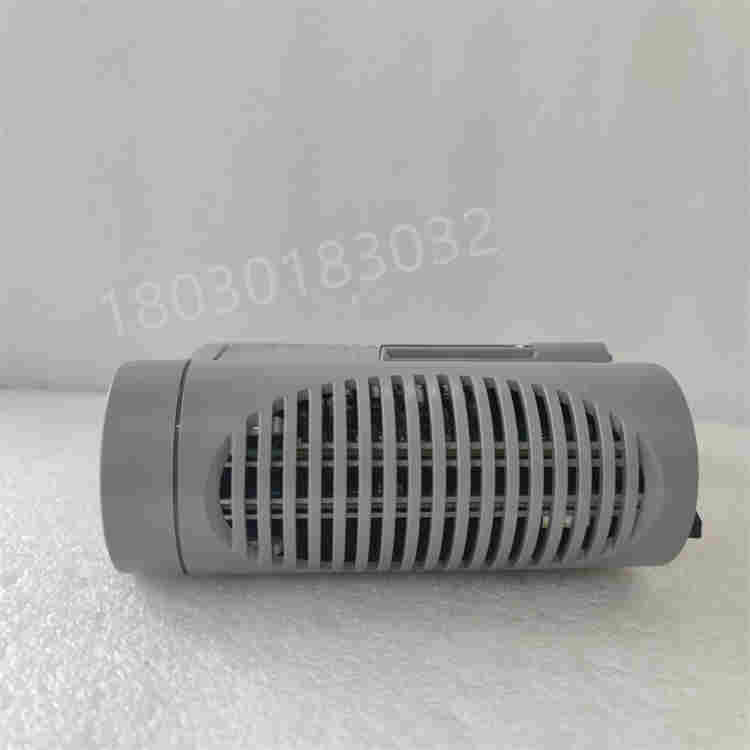

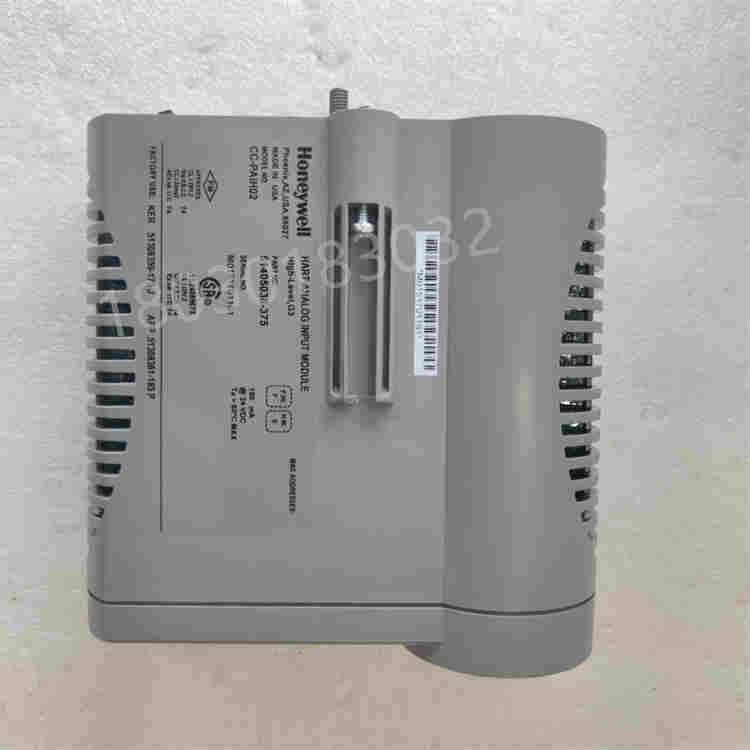

Honeywell CC-PAIH02 模拟输入模块

技术规格

输入/输出型号：CC-PAIH02 - 高电平模拟输入，支持HART协议。

输入类型：电压、电流（2线制或自供电变送器）。

输入通道数：16通道（12单端/4差分）。

共模抑制比：70dB（直流至60Hz，500Ω源不平衡）。

共模电压：-6V至+5V峰值（直流至60Hz）。

A/D转换器分辨率：16位。

输入范围：0至5V、1至5V、0.4至2V、4-20mA（通过250Ω）。

正常模式抑制比：60dB（直流至60Hz）。

正常模式滤波响应：单极RC滤波器，-3dB@6.5Hz。

最大正常模式输入：±30V（差分输入，无损坏）。

通道间串扰：-60dB（直流至60Hz）。

输入阻抗（电压输入）：>10MΩ（供电）。

输入扫描速率：50ms。

硬件精度（CMV=0V）：±0.075%满量程（23.5°±2°C）、±0.15%满量程（0至60°C）。

变送器现场电源调节：为Class 1, Div 2非易燃接口提供单独保护的电流限制电路，无需熔断器。

功能特点

多通道模拟输入：提供多个模拟输入通道，可同时接收和处理多个传感器的模拟信号，满足多点监测和控制需求。

HART通信协议：支持HART协议，实现与智能现场设备的双向数字通信，便于远程配置、校准、获取设备状态信息及故障诊断。

高精度数据采集：具备高精度数据采集能力，实时采集和记录模拟输入信号数值，为控制系统决策提供可靠依据。

灵活配置和扩展：支持灵活配置和扩展，用户可根据实际需求调整模块参数和配置，提供丰富接口和通信选项，便于与其他设备和系统集成。

可靠性和稳定性：经过严格测试和验证，可在恶劣工作环境下稳定运行。

应用领域

过程控制：在化工、石油、制药等行业中，用于监测和控制各种工艺参数。

温度监控：在制造业、数据中心等场所，用于监测环境温度并确保设备正常运行。

液位测量：在储罐、水池等容器中，用于测量液位高度。

流量测量：在管道系统中，用于测量流体流量。

压力测量：在气动、液压等系统中，用于测量压力值。

振动监控：用于监测设备的振动情况，确保设备运行平稳。

资产跟踪：用于跟踪设备和资产的位置和状态。

状态监控：用于监控设备的运行状态，及时发现潜在问题。

安全系统：用于安全相关的监控和报警系统。

Honeywell CC-PAIH02 模拟输入模块凭借其高性能、多功能和高可靠性，成为工业自动化和控制系统中的重要组件。

Honeywell CC-PAIH02 Analog Input Module

technical specifications

Input/output model: CC-PAIH02- High level analog input, supports HART protocol.

Input type: voltage, current (2-wire system or self powered transmitter).

Number of input channels: 16 channels (12 single ended/4 differential).

Common mode rejection ratio: 70dB (DC to 60Hz, 500 Ω source imbalance).

Common mode voltage: -6V to+5V peak (DC to 60Hz).

A/D converter resolution: 16 bits.

Input range: 0 to 5V, 1 to 5V, 0.4 to 2V, 4-20mA (via 250 Ω).

Normal mode suppression ratio: 60dB (DC to 60Hz).

Normal mode filtering response: unipolar RC filter, -3dB@6.5Hz .

Maximum normal mode input: ± 30V (differential input, no damage).

Channel crosstalk: -60dB (DC to 60Hz).

Input impedance (voltage input):>10M Ω (power supply).

Input scanning rate: 50ms.

Hardware accuracy (CMV=0V): ± 0.075% full scale (23.5 °± 2 ° C), ± 0.15% full scale (0 to 60 ° C).

On site power regulation for transmitters: Provide separate current limiting circuits for Class 1, Div 2 non flammable interfaces without the need for fuses.

Functional Features

Multi channel analog input: Provides multiple analog input channels that can simultaneously receive and process analog signals from multiple sensors, meeting the needs of multi-point monitoring and control.

HART communication protocol: Supports the HART protocol to achieve bidirectional digital communication with intelligent field devices, facilitating remote configuration, calibration, acquisition of device status information, and fault diagnosis.

High precision data acquisition: With high-precision data acquisition capability, real-time acquisition and recording of analog input signal values provide reliable basis for control system decision-making.

Flexible configuration and expansion: Supports flexible configuration and expansion, allowing users to adjust module parameters and configurations according to actual needs, providing rich interfaces and communication options for easy integration with other devices and systems.

Reliability and stability: After rigorous testing and verification, it can operate stably in harsh working environments.

application area

Process control: used in industries such as chemical, petroleum, and pharmaceutical to monitor and control various process parameters.

Temperature monitoring: used in manufacturing, data centers, and other places to monitor environmental temperature and ensure the normal operation of equipment.

Liquid level measurement: used to measure the height of liquid level in containers such as storage tanks and water tanks.

Flow measurement: used in pipeline systems to measure fluid flow.

Pressure measurement: used in pneumatic, hydraulic and other systems to measure pressure values.

Vibration monitoring: used to monitor the vibration situation of equipment and ensure smooth operation of the equipment.

Asset tracking: used to track the location and status of equipment and assets.

Status monitoring: used to monitor the operational status of equipment and promptly identify potential issues.

Security system: used for security related monitoring and alarm systems.

The Honeywell CC-PAIH02 analog input module has become an important component in industrial automation and control systems due to its high performance, versatility, and high reliability.
