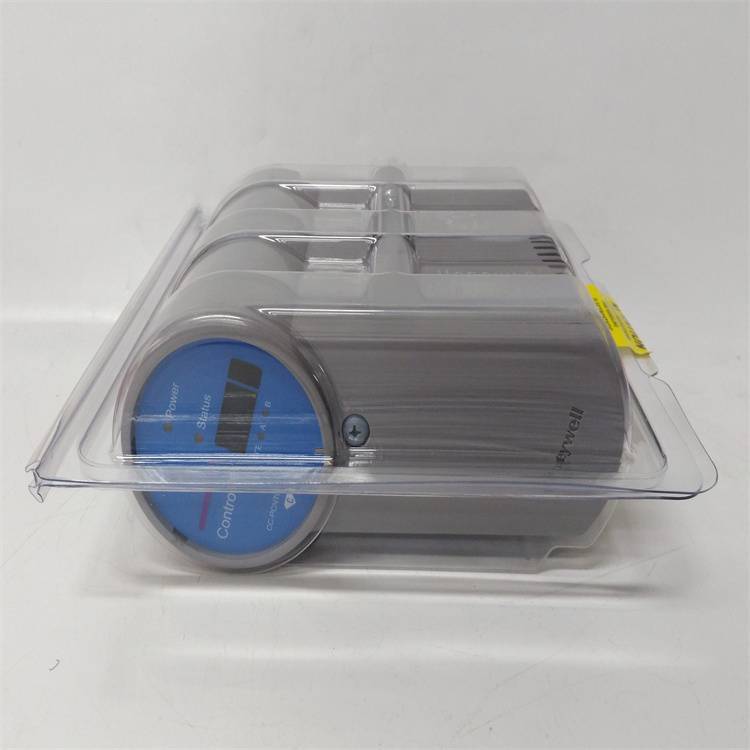

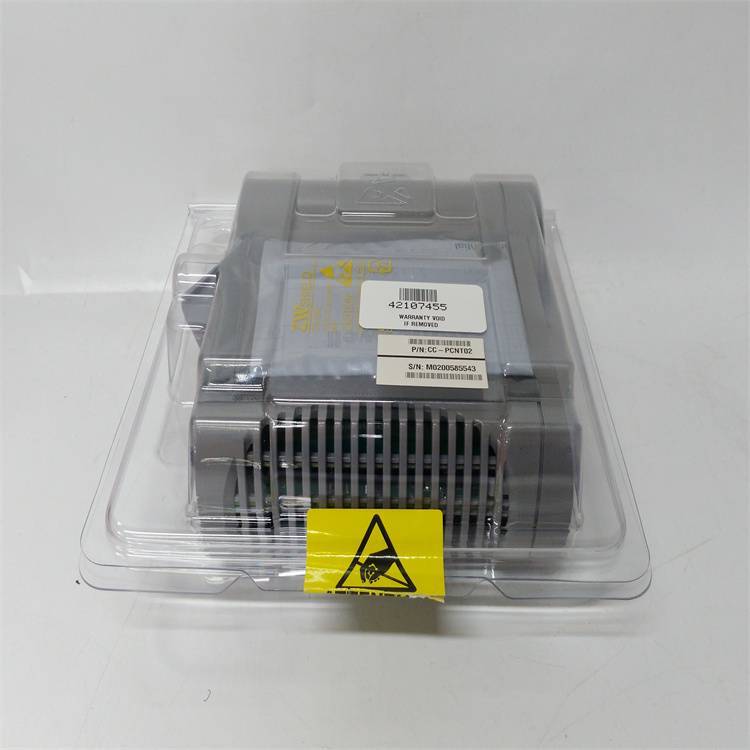

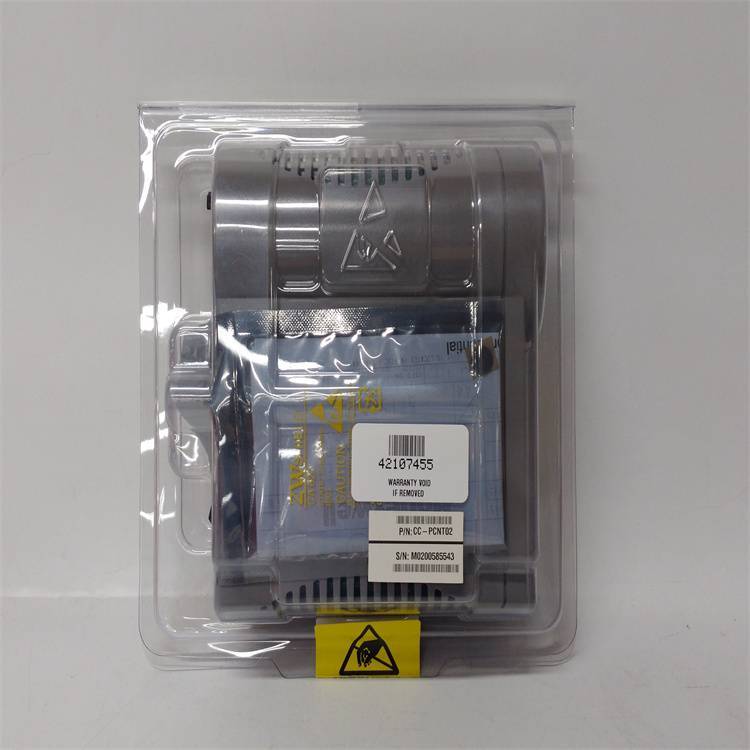

HONEYWELL CC-PCNT02霍尼韦尔C300卡件控制器是霍尼韦尔Experion®平台的核心组件，专为工业过程控制设计，具备高可靠性、模块化结构和强大的控制功能，适用于石油天然气、化工、制药等行业的连续和批量过程控制。

GPS时钟源接口：可选外部时钟同步。

兼容性：与霍尼韦尔DCS系统（如PKS、Experion）及其他自动化产品无缝集成。

水处理：监控水质参数，自动化调节加药、过滤等环节。

HONEYWELL CC-PCNT02 Honeywell C300 Card Controller is a Honeywell Expert ® The core components of the platform are designed specifically for industrial process control, with high reliability, modular structure, and powerful control functions, suitable for continuous and batch process control in industries such as oil and gas, chemical, and pharmaceutical.

Core functions and features

Process control capability

Support continuous and batch process processing, comply with ISA S88.01 batch control standard, seamlessly integrate with intelligent field devices such as valves, pumps, sensors, etc., and achieve real-time monitoring and automated operation of process status.

Built in Honeywell Profit ® Loop algorithm and custom algorithm module (CAB) allow users to create and run custom code, solve complex control problems, and enhance system flexibility.

Redundant design and high availability

Adopting a primary backup redundant configuration, the availability of redundant controllers is greater than 99.999%, ensuring uninterrupted operation of the system.

All RAM memory has ECC (Error Correction Check) function, Flash memory is verified and protected, equipped with startup and run diagnostic programs, significantly improving Mean Time to Failure (MTTF).

Modularity and Scalability

Composed of a base plate and modules, the modular plug-in design facilitates installation and maintenance.

Supports hot plugging, modular structure supports flexible expansion of I/O channels according to requirements, and can connect up to 64 I/O points (up to 40 I/O points can be connected in parallel per pair of IOLINK interfaces).

Networking and Communications

Equipped with FTE (Fault Tolerant Ethernet) network port, supporting dual network redundancy, with a switching time of about 1 second (traditional dual network structure requires 20-30 seconds), ensuring data synchronization and network reliability.

It can be connected to a GPS clock source to achieve system clock synchronization, or set the time source through software.

Environmental adaptability

Some models (such as 8C-PCNT02) adopt conformal coating design, with a protection level of IP54, suitable for harsh industrial environments such as humidity, dust, and chemicals.

technical specifications

Physical dimensions: Compact in size, packaged in Series C form factor.

Interface type:

IOLINK interface: connects I/O cards and supports redundant cables.

Backup battery interface: Protection RAM configuration strategy in case of power failure.

GPS clock source interface: optional external clock synchronization.

Input/output:

The pulse counting module (such as 8C-PCNT02) supports multi-channel input, high-precision counting (error ≤ 0.05% of full scale), and is suitable for pulse signal processing in sensors, encoders, and other devices.

Compatibility: Seamless integration with Honeywell DCS systems (such as PKS, Expert) and other automation products.

Application scenarios

Oil and gas industry: used for process monitoring and control in wellhead, pipeline, refinery and other scenarios.

Chemical and Pharmaceutical: Support automation of mass production processes to ensure precise execution of formulas.

Electricity and Energy: Achieving stable operation and efficiency optimization of generator sets and substations.

Water treatment: Monitor water quality parameters, automatically adjust dosing, filtration and other processes.

Summary of Advantages

High reliability: Redundant design, ECC memory, conformal coating and other technologies ensure long-term stable operation.

Flexible configuration: The modular structure supports on-demand expansion, and custom algorithms meet personalized needs.

Efficient maintenance: Hot swappable design and LED status indication simplify troubleshooting and replacement processes.

Industry adaptation: Widely compatible with Honeywell ecosystem, reducing integration costs and risks.
