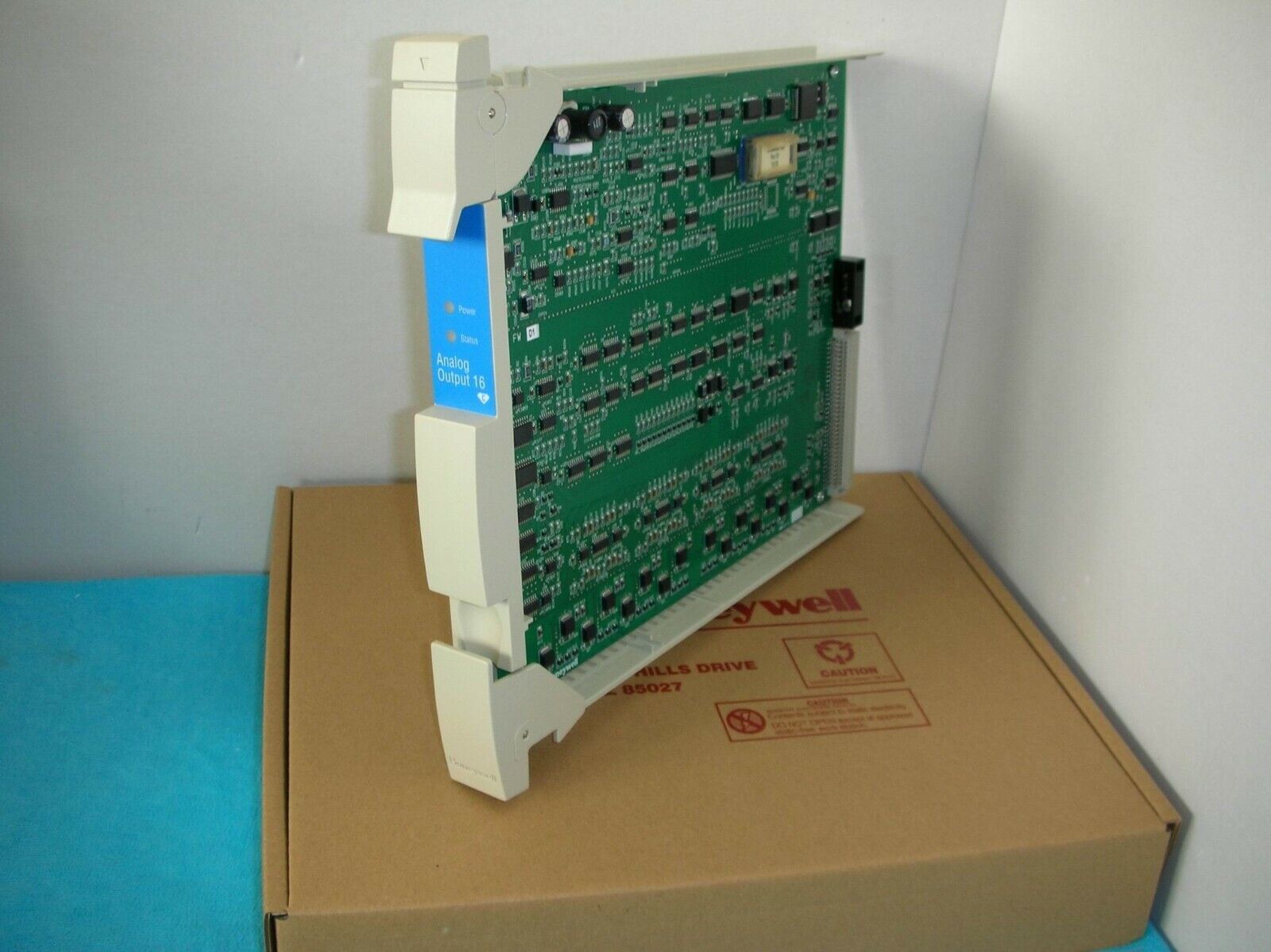

The Honeywell MC-PAOY22 controller is a high-performance analog output module primarily used in industrial automation control systems

1、 Product Overview

Brand and Model: Honeywell MC-PAOY22

Product type: Analog output module

Main function: Convert digital signals into analog signals to achieve control of various process variables.

2、 Technical characteristics

Output channel and type:

Provide 16 independent 4-20mA output channels, suitable for scenarios that require precise control of proportional devices such as valves, actuators, and dampers.

The output type is current loop (4-20mA), with high precision and anti-interference ability.

Accuracy and noise:

The typical accuracy is ± 0.05%, ensuring the accuracy of the output signal.

Output noise ≤ 10 µ Vrms, reducing signal interference and improving control stability.

Redundancy support: Supports redundant configuration to improve system reliability and availability.

Compliance and Protection:

Compliant with CE standards, ensuring that the product meets the safety, health, and environmental requirements of the European market.

Adopting conformal coating to improve the corrosion resistance and environmental resistance of the module.

Signal isolation: Optical isolation is used between channels and systems to reduce the risk of signal interference and fault propagation.

Working temperature range: 0 ° C to+60 ° C, suitable for various industrial environments.

3、 Application scenarios

The Honeywell MC-PAOY22 controller is widely used in industrial automation control systems that require high-precision analog output, such as:

Steel industry: Proportional valves used to control equipment such as blast furnaces and converters, achieving precise temperature and pressure control.

Power industry: Control the actuators of equipment such as turbines and boilers in power plants to ensure the stability and efficiency of power production.

Chemical and petrochemical industries: proportional valves and actuators used to control equipment such as reaction vessels and distillation towers, achieving precise process control.

Other industries such as papermaking, cement, pharmaceuticals, etc., any industrial automation control scenario that requires high-precision analog output.

4、 Installation and Configuration

Installation method: It is installed using a plug-in I/O processor slot, which is convenient and fast.

Interface and Bus: Supports Honeywell I/O Link interface/bus for easy integration with control systems.

Configuration and debugging: Parameters can be set and debugged through the configuration tools provided by Honeywell, simplifying the installation and maintenance process.
