FC-FANWR-24R 霍尼韦尔 HONEYWELL 系统风扇组件（DCS / 安全系统散热模块）

1、 Basic Information

Brand: Honeywell

Model name: FC-FANWR-24R (with fan feedback monitoring circuit)

Positioning: FC series DCS/safety control system cabinet dedicated dual fan cooling component with speed fault feedback function, the system can collect fan abnormal alarms

Country of Origin: United States

Shutdown status: The original factory has ceased production (End of Life), there are no new futures from the original factory, and only new inventory and refurbished spare parts are circulating in the market

2、 Core electrical parameters

Power supply: 24VDC

Single fan power: 9.5W, total power of the whole set is about 19W

Rated speed: 3200 RPM

Airflow: 360 m ³/h (211.8 CFM)

Noise: 52 dB (A)

Feedback contact: Passive dry contact, closes alarm in case of fault, maximum load 300VDC/240VAC, 0.5A

Protection level: IP20

Working temperature: -30 ℃~+75 ℃

Fan lifespan: 85000 hours in a 40 ℃ environment

3、 Dimensions&Weight

1. Installation dimensions of the whole machine (panel including fan assembly)

Length: 320 mm

Width: 130 mm

Thickness: 65 mm

2. Net weight (excluding outer packaging)

About 0.56 kg

3. Gross weight of original packaging

About 0.85~1.0 kg (including carton, shockproof foam and terminal instructions)

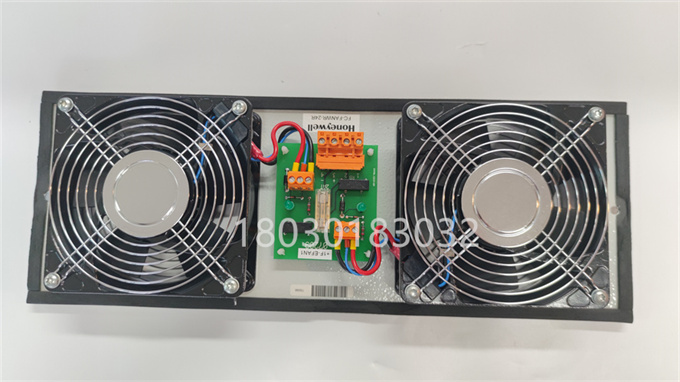

4、 Structure and Function Description

Dual axis flow fan assembly (PAPST original ball bearing fan);

Built in speed detection circuit board, automatically triggers feedback signal to DCS controller when fan stops running/speed is too low;

Metal installation panel, standard cabinet opening installation, compatible with Honeywell FC series control system rack;

Terminal block direct insertion wiring, 24V power supply+two-way fault feedback output;

Purpose: Forced cooling of DCS cabinets in petroleum, chemical, and power plants to ensure constant temperature operation of CPUs and IO cards.

5、 Supply and Procurement Tips

No original factory produced new machines, only dealers stocked up on brand new parts in the early years;

The price of disassembled parts is low, but the fan bearings are prone to aging and have a short warranty;

Alternative spare parts: FS-FANWR-24R (compatible with the same specifications, with completely interchangeable functions and sizes);

Industry warranty: New and unified 12-month warranty for stock, 3-6 months for disassembly and refurbishment.
