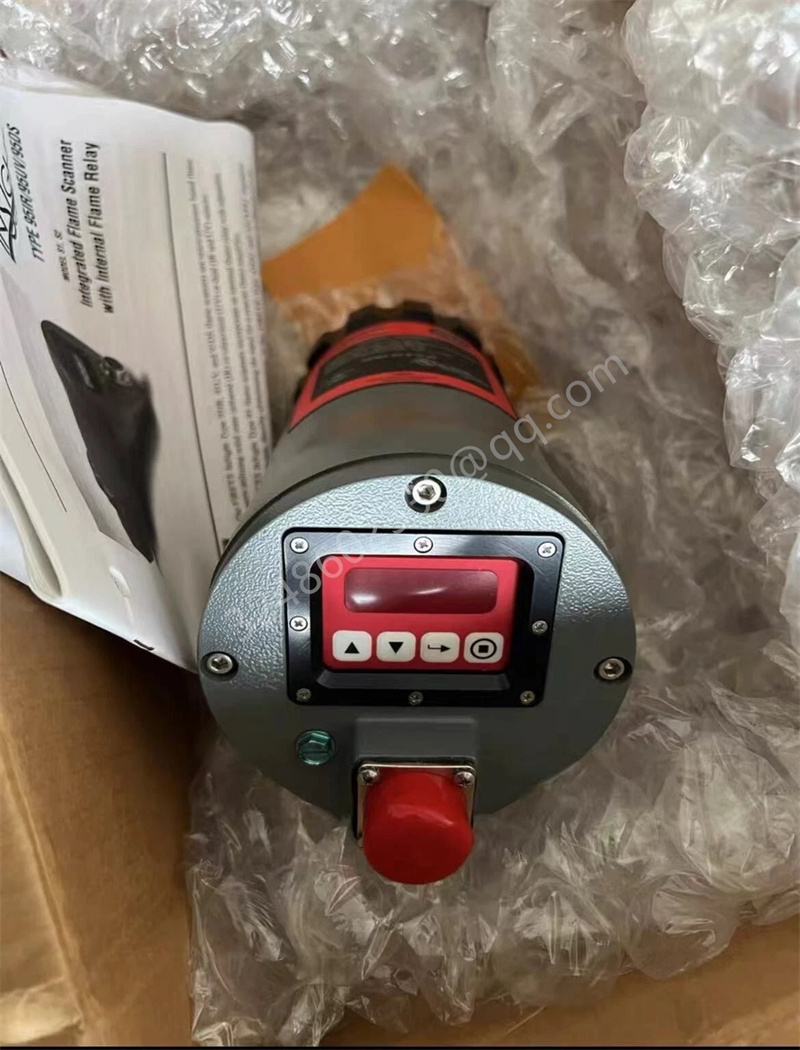

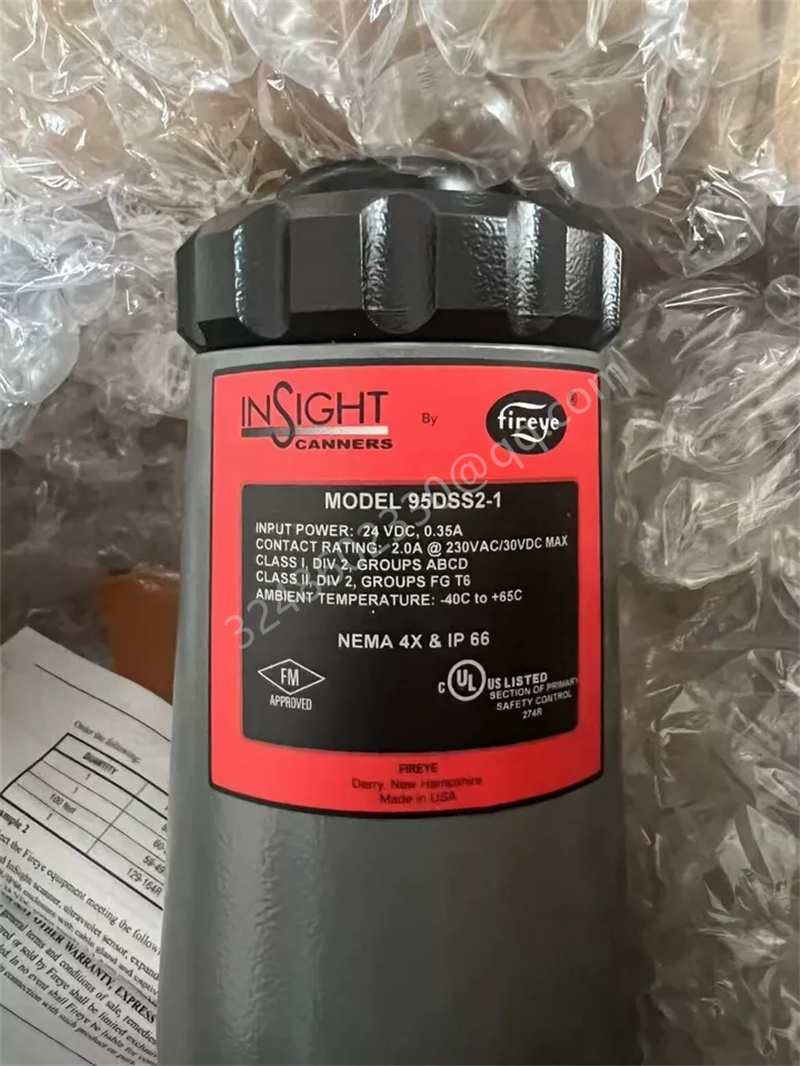

FIREYE 95DSS2-1 是一款高性能的双探测器火焰检测器，广泛应用于工业燃烧系统，如锅炉、熔炉和管道燃烧器等。

技术规格

传感器类型：双传感器（红外 IR 和紫外 UV）。

外壳材质：铸铝冲模，银色聚酯粉涂层。

重量：约 1.73 kg（3.8 lbs）。

安装方式：1 英寸 NPT 内螺纹管连接，带锁环安全固定；支持光纤连接。

冷却风：清洁、干燥、低温；风量通常为 10 SCFM（17 Nm³/hr）；风压通常为 6 英寸水柱（4.95 mbar），需比炉膛压力大。

工作温度：-40℉ 至 +150℉（-40℃ 至 +65℃）。

湿度：0% 至 95% 相对湿度（不结露）。

输入电源：24Vdc（+10%，-15%）。

电气连接：12 针，1/4 旋转快开接头。

继电器输出：火焰继电器 SPST（常开触点）；故障信号继电器 SPST（常闭触点）。

模拟量输出：4-20mA 直流电流输出（24VDC，最大负载 750 欧姆）。

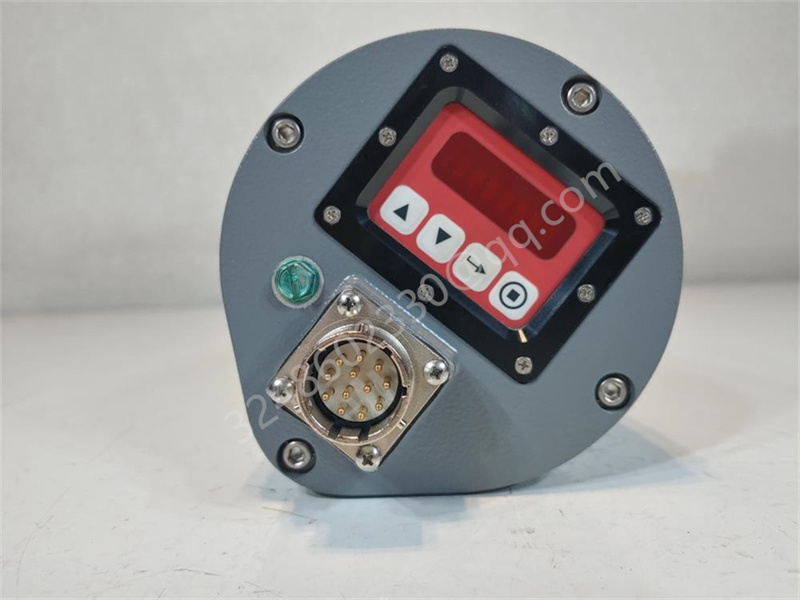

状态显示：八位字符 LED 显示屏（滚动显示）。

操作界面：通过四个按钮式小键盘进行操作。

UV 传感器波长范围：295~320 nm。

IR 传感器波长范围：700~1700 nm。

认证：ATEX 认证，适用于危险区域。

应用场景

工业燃烧系统：如锅炉、熔炉、管道燃烧器等。

多燃料燃烧系统：适用于多种燃料混烧的工况。

单燃烧器和多燃烧器应用：能够检测目标火焰的存在或缺失，确保燃烧系统的安全和稳定运行。

安装与调试

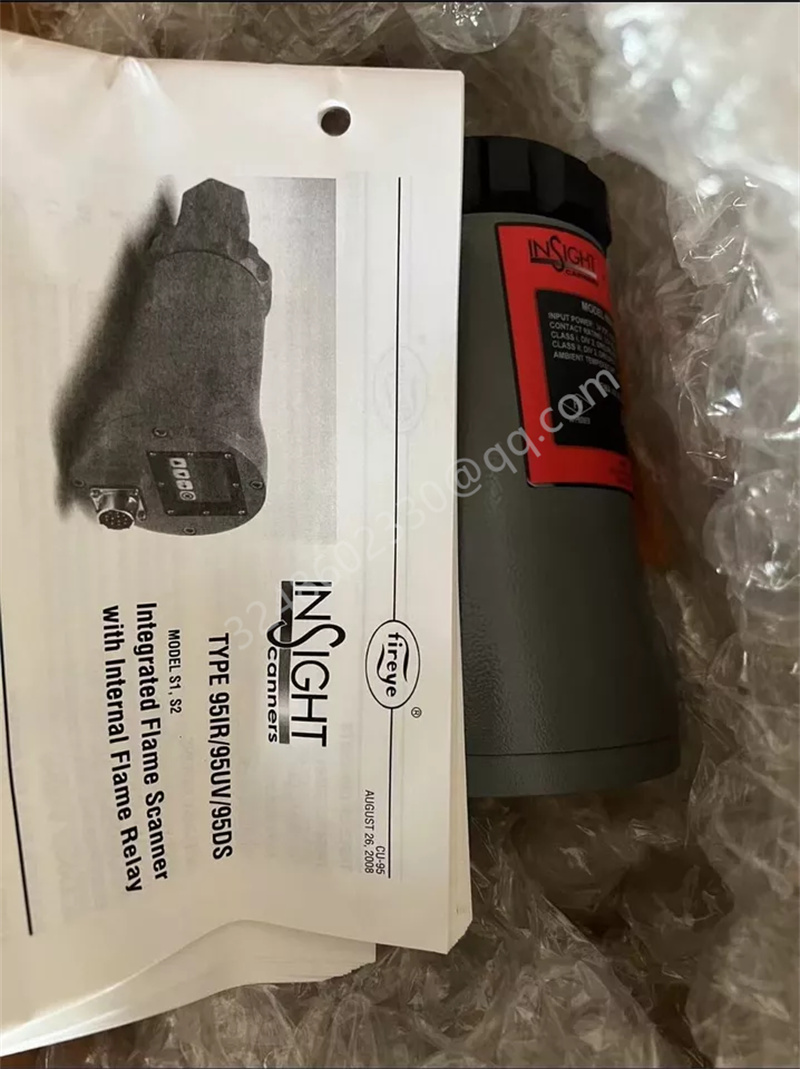

安装：设备安装需遵循 FIREYE 提供的安装手册，确保与燃烧系统的连接正确无误。

调试：根据实际火焰情况调整设备的 ON/OFF 阈值和传感器增益，以实现最佳火焰检测效果。

FIREYE 95DSS2-1 火焰检测器采用先进的双光谱技术，能够快速准确地识别火焰的存在，适用于各种工业燃烧系统。其内置的电子自检功能确保了长期使用的可靠性。

FIREYE 95DSS2-1 is a high-performance dual detector flame detector widely used in industrial combustion systems such as boilers, furnaces, and pipeline burners. technical specifications Sensor type: Dual sensors (infrared IR and ultraviolet UV). Shell material: cast aluminum die, silver polyester powder coating. Weight: Approximately 1.73 kg (3.8 lbs). Installation method: 1-inch NPT internal threaded pipe connection with locking ring for secure fixation; Supports fiber optic connections. Cooling air: clean, dry, low temperature; The air volume is usually 10 SCFM (17 Nm ³/hr); The wind pressure is usually 6 inches of water column (4.95 mbar), which needs to be higher than the furnace pressure. Working temperature: -40 ℉ to+150 ℉ (-40 ℃ to+65 ℃). Humidity: 0% to 95% relative humidity (non condensing). Input power supply: 24Vdc (+10%, -15%). Electrical connection: 12 pin, 1/4 turn quick open connector. Relay output: flame relay SPST (normally open contact); Fault signal relay SPST (normally closed contact). Analog output: 4-20mA DC current output (24VDC, maximum load 750 ohms). Status display: Eight character LED display screen (scrolling display). Operation interface: Operated through four button style small keyboards. UV sensor wavelength range: 295~320 nm. IR sensor wavelength range: 700~1700 nm. Certification: ATEX certification, suitable for hazardous areas.

Application scenarios Industrial combustion systems: such as boilers, furnaces, pipeline burners, etc. Multi fuel combustion system: suitable for working conditions where multiple fuels are co fired. Single burner and multi burner applications: capable of detecting the presence or absence of target flames, ensuring the safe and stable operation of the combustion system. Installation and debugging Installation: The equipment installation must follow the installation manual provided by FIREYE to ensure correct connection with the combustion system. Debugging: Adjust the ON/OFF threshold and sensor gain of the equipment according to the actual flame situation to achieve the best flame detection effect. The FIREYE 95DSS2-1 flame detector adopts advanced dual spectral technology, which can quickly and accurately identify the presence of flames and is suitable for various industrial combustion systems. Its built-in electronic self-test function ensures long-term reliability.
