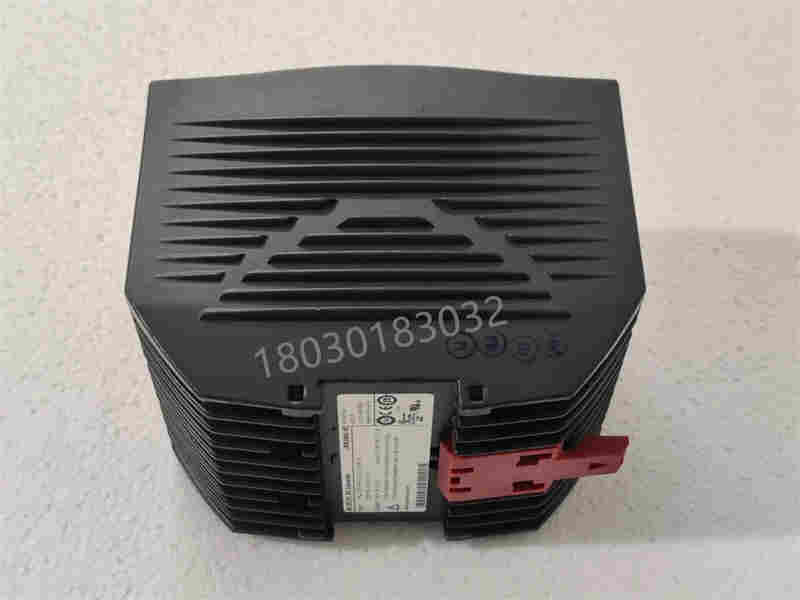

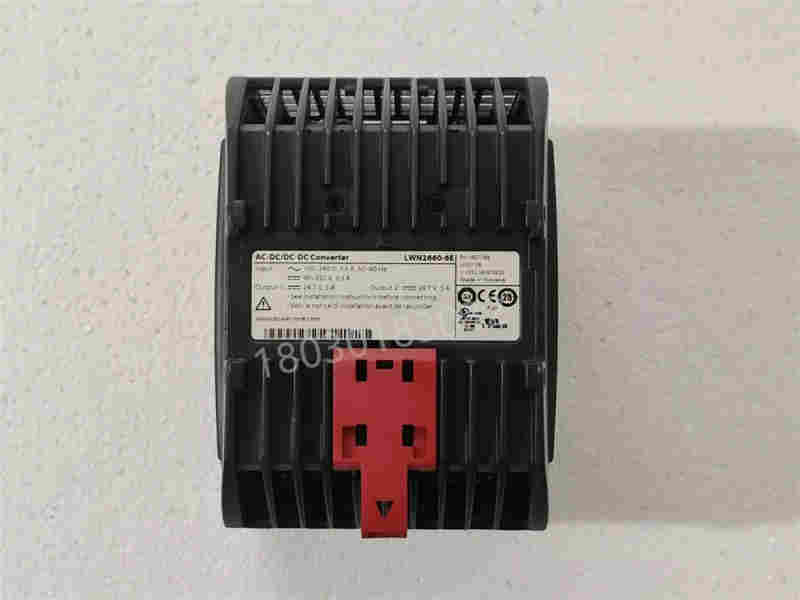

ABB LWN2660-6E（型号代码：3BHL000986P7002）是一款高性能的工业级电源模块，属于 ABB 的 LWN 2660-6E 系列。

技术规格

输入电压：86-264VAC，适用于广泛的交流输入范围。

输出电压：双输出，每个输出为 24.7V DC。

输出电流：每个输出最大 5A。

功率：最大 250W。

效率：高达 89%。

工作温度范围：-40℃ 至 +60℃。

安装方式：DIN 导轨安装。

尺寸：106 mm x 103 mm x 138 mm。

重量：约 2.665 kg。

功能特点

功率因数校正：具备功率因数校正功能，符合 IEC/EN 61000-3-2 标准。

高可靠性：采用坚固的 35 mm DIN 导轨卡扣设计，适用于恶劣工业环境。

短路保护：输出无负载、过载和短路保护。

电磁兼容性：符合 EN 55011/55032 标准。

高效率：设计高效，减少能量损耗，降低运行成本。

应用场景

工业自动化：为工厂自动化设备提供稳定的电源。

过程控制：适用于化工、冶金等行业的过程控制设备。

楼宇控制：为楼宇控制系统中的设备提供电源。

电磁驱动器和风扇：为电磁驱动器和风扇等直流负载供电。

注意事项

安装环境：确保安装在通风良好、无尘的环境中，以延长使用寿命。

输入电压范围：确保输入电压在规定的范围内，以避免损坏设备。

ABB LWN2660-6E (model code: 3BHL000986P7002) is a high-performance industrial grade power module belonging to ABB's LWN 2660-6E series. technical specifications Input voltage: 86-264VAC, suitable for a wide range of AC inputs. Output voltage: Dual output, each output is 24.7V DC. Output current: Each output has a maximum of 5A. Power: Maximum 250W. Efficiency: up to 89%. Working temperature range: -40 ℃ to+60 ℃. Installation method: DIN rail installation. Dimensions: 106 mm x 103 mm x 138 mm. Weight: Approximately 1.665 kg. Functional Features Power factor correction: It has power factor correction function and complies with IEC/EN 61000-3-2 standard. High reliability: Adopting a sturdy 35mm DIN rail buckle design, suitable for harsh industrial environments. Short circuit protection: Output no-load, overload, and short circuit protection. Electromagnetic compatibility: Complies with EN 55011/55032 standard. High efficiency: Designed to be efficient, reduce energy loss, and lower operating costs. Application scenarios Industrial automation: providing stable power supply for factory automation equipment. Process control: Suitable for process control equipment in industries such as chemical and metallurgical. Building control: Provide power to the equipment in the building control system. Electromagnetic drives and fans: supply power to DC loads such as electromagnetic drives and fans. precautions Installation environment: Ensure installation in a well ventilated and dust-free environment to extend service life. Input voltage range: Ensure that the input voltage is within the specified range to avoid damaging the equipment.
