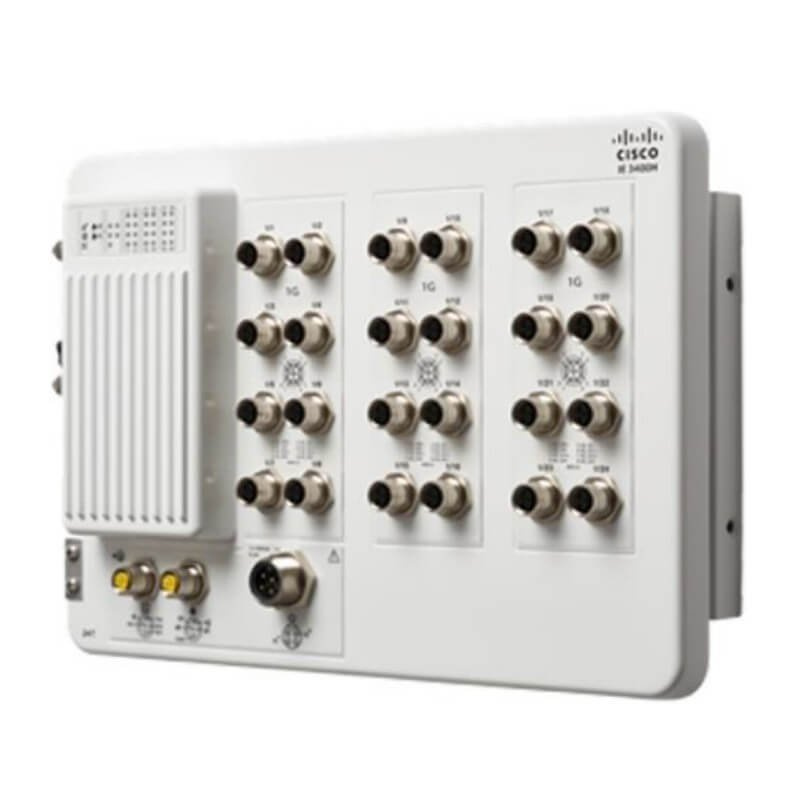

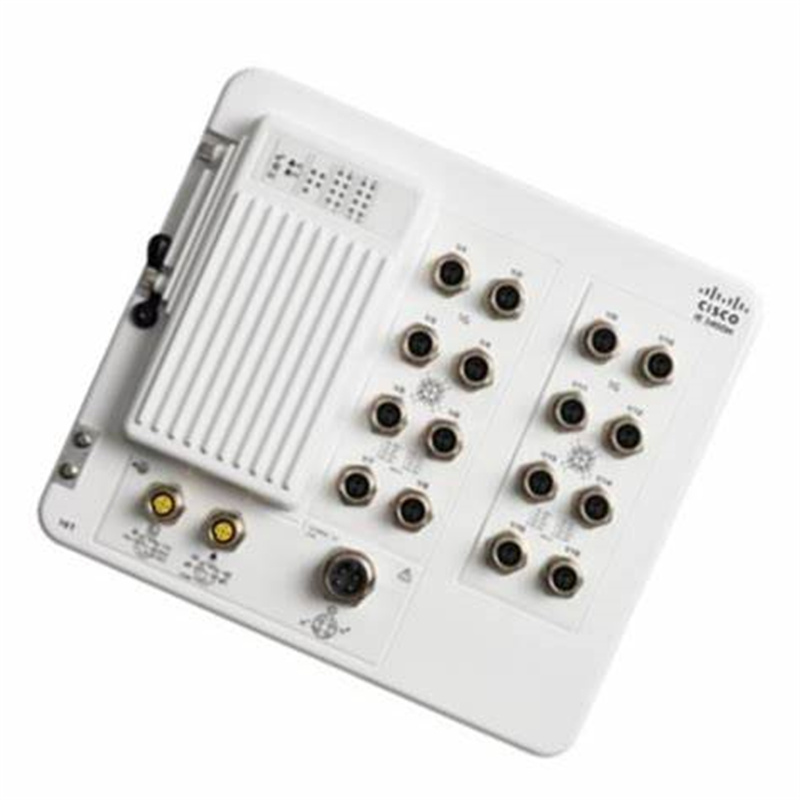

Cisco IE-3400H-16T-E 管理型交换机

产品概述

Cisco IE-3400H-16T-E 是一款高性能的工业管理型交换机，专为恶劣环境下的工业自动化和网络连接设计。它具备高可靠性和先进的管理功能，适用于各种工业应用场景。

技术规格

端口类型：16 个 10/100/1000 Gigabit Ethernet (X-code) 端口。

防护等级：IP67，适用于防尘防水环境。

安装方式：壁挂式。

工作温度范围：-40°C 至 +85°C。

尺寸：243.3 mm × 276.9 mm × 80 mm。

重量：5.1 kg。

电源输入：9.6V 至 60V DC。

功耗：41.6W/42.3W。

报警功能：1 个报警输出继电器，1 个报警输入。

VLAN 功能：支持。

环网冗余：支持。

功能特点

高级管理功能：支持通过 WebUI、CLI、SNMP 和 Cisco DNA Center 进行管理。

高可用性设计：支持冗余功能，确保关键任务应用的连续运行。

紧凑设计：适合空间受限的工业环境。

高级安全功能：支持 SGT/SGACL，提供高级安全保护。

精准时间协议（PTP）：提供亚微秒级的精确时钟同步。

支持 IPv6：通过 IPv6 Ready Logo 认证。

应用场景

工业自动化：连接 IP 摄像头、传感器和控制器等工业设备。

智能交通系统：用于交通信号设备和监控摄像头的网络连接。

能源管理：在电力监控系统中，连接和通信各种电力设备。

其他工业领域：如化工、造纸、纺织等行业的自动化控制。

注意事项

使用环境：确保安装环境符合产品手册的要求。

配置：需要通过相应的软件进行配置。

维护：定期检查设备，确保其处于良好状态。

Cisco IE-3400H-16T-E Management Switch

product overview

The Cisco IE-3400H-16T-E is a high-performance industrial management switch designed specifically for industrial automation and network connectivity in harsh environments. It has high reliability and advanced management functions, suitable for various industrial application scenarios.

technical specifications

Port type: 16 10/100/1000 Gigabit Ethernet (X-code) ports.

Protection level: IP67, suitable for dust-proof and waterproof environments.

Installation method: Wall mounted.

Working temperature range: -40 ° C to+85 ° C.

Dimensions: 243.3 mm x 276.9 mm x 80 mm.

Weight: 5.1 kg.

Power input: 9.6V to 60V DC.

Power consumption: 41.6W/42.3W.

Alarm function: 1 alarm output relay, 1 alarm input.

VLAN function: supported.

Ring network redundancy: supported.

Functional Features

Advanced management features: Supports management through WebUI, CLI, SNMP, and Cisco DNA Center.

High availability design: supports redundant functions to ensure the continuous operation of critical task applications.

Compact design: suitable for industrial environments with limited space.

Advanced security features: Supports SGT/SGACL and provides advanced security protection.

Precision Time Protocol (PTP): Provides sub microsecond level precise clock synchronization.

Support IPv6: certified with IPv6 Ready Logo.

Application scenarios

Industrial automation: connecting industrial equipment such as IP cameras, sensors, and controllers.

Intelligent transportation system: used for network connection of traffic signal equipment and monitoring cameras.

Energy management: In the power monitoring system, connect and communicate various power equipment.

Automation control in other industrial fields such as chemical, papermaking, textile, etc.

precautions

Usage environment: Ensure that the installation environment meets the requirements of the product manual.

Configuration: It needs to be configured through the corresponding software.

Maintenance: Regularly inspect equipment to ensure it is in good condition.
